High-pressure pipe between the pump and rail: Removal - Refitting
F9Q
13B
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Disconnect the battery (see Battery : Removal -
Refitting) (80A, Battery).
a Remove:
-the engine cover,
-the injector rail protector (see 13B, Diesel injec-
tion, Injector rail protector: Removal - Refitting,
page 13B-70) .

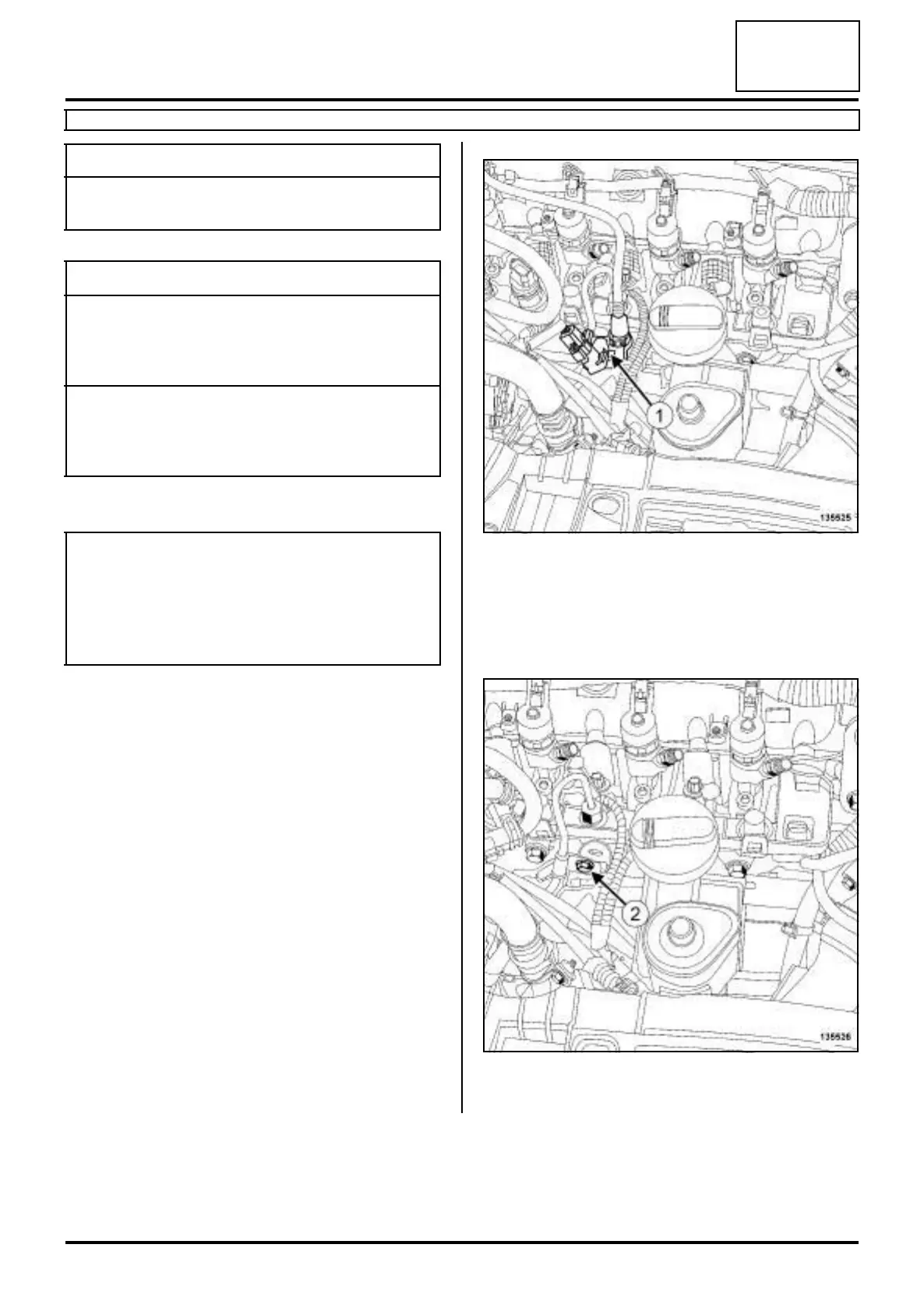

a Unclip the fuel temperature sensor (1) from its sup-
port.
II - OPERATION FOR REMOVAL OF PART
CONCERNED
a Remove the bolt (2) for the pipe between the pump
and the rail.
Essential special tooling
Mot. 1566 Spanner for removing high
pressure pipes.
Tightening torquesm
nut on the high pressure
pipe between the pump
and the rail at the high
pressure pump end
27 N.m
nut on the high pressure
pipe between the pump
and the rail at the injec-
tor rail end
37 N.m
IMPORTANT
To avoid all risk of damage to the systems, apply
the safety and cleanliness instructions and opera-
tion recommendations before carrying out any
repair (see 13B, Diesel injection, Diesel injec-
tion: Precautions for repair, page 13B-1) .
