Renesas RA Microcontrollers EK-RA4M1 v1 – User's Manual
R20UT4579EU0100 Rev.1.00 Page 29 of 32
Oct.02.19
5.6.5.5 Signal P205
By default, the Main MCU pin P205 is connected to a TSCAP-A capacitor. This pin may be
connected to the MCU Pin Header J2. To do this, the copper jumper E12 must be closed.
The TSCAP-A capacitor may be disconnected by making the copper jumper E15 open.

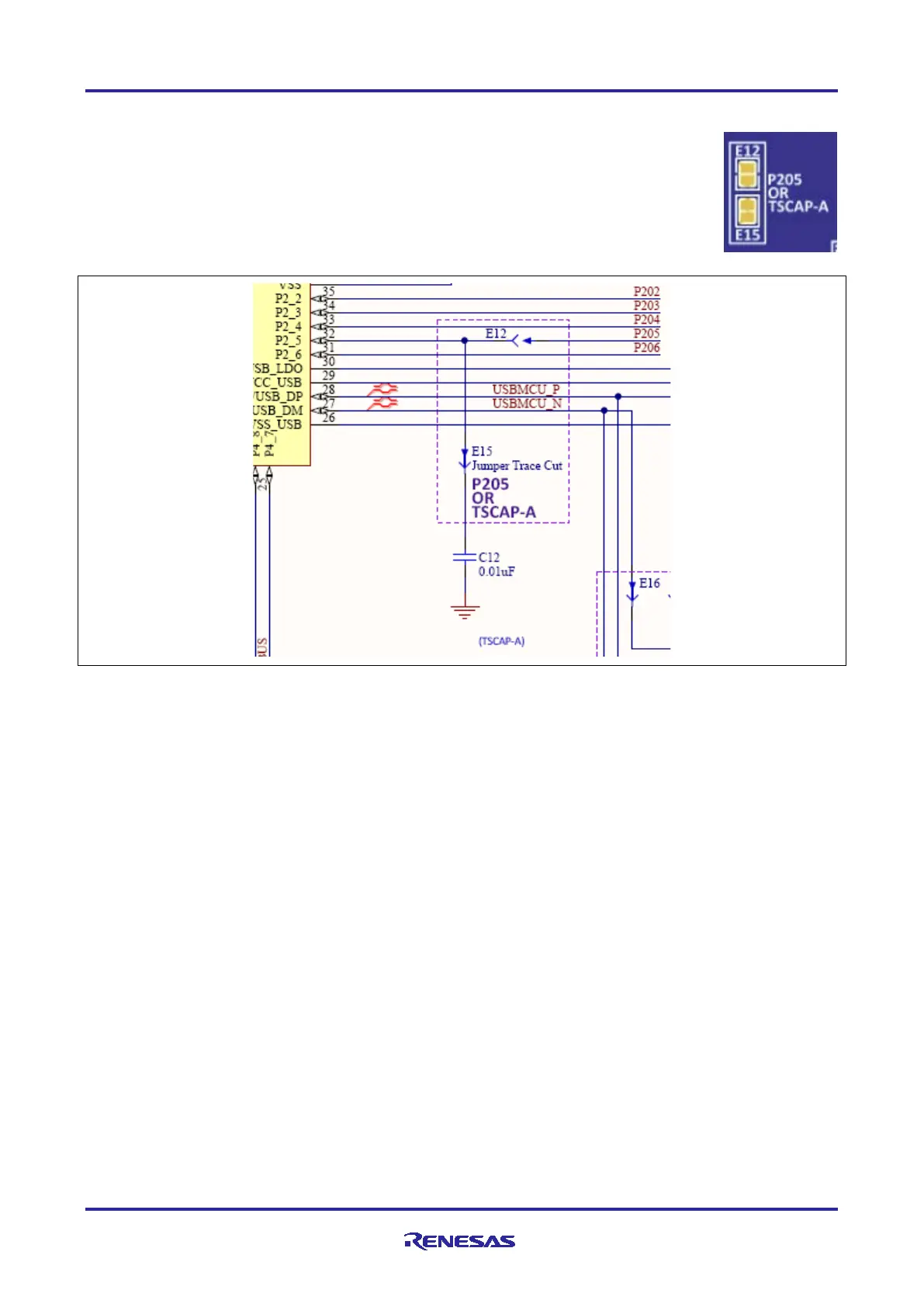

Figure 32. P205 Circuit
