5.5 Downloading and Running the Modified Quick Start Example Project
1. In e
2
studio, click the drop-down menu for the debug icon, select Debug Configurations option.

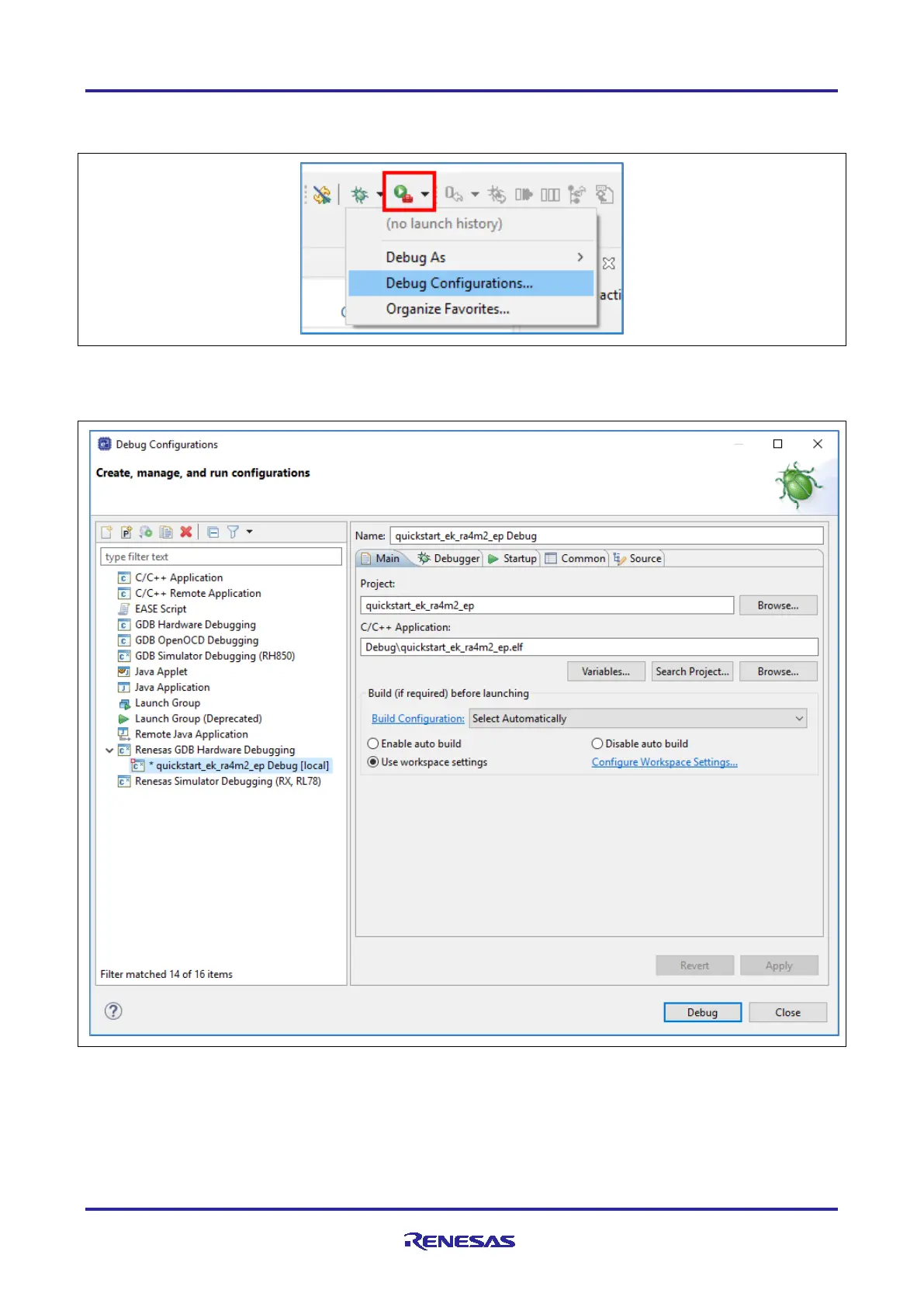

Figure 24. Selecting the Debug Option
2. In the dialogue, on the left-hand pane, expand the Renesas GDB Hardware Debugger and select the
built image to debug, in this case, the quickstart_ek_RA4M2_ep.
Figure 25. Selecting the Debug Image
