Renesas RH850 Series Application Note

RH850 Series CAN Transmit Procedure (CAN FD Mode)
R01AN6029EJ0100 Rev.1.0 Page
38
of 42
May 10, 2017
8. Precautions for Processing Flow
8.1 About Functions
In this application note, there is a part that is functionalized even in the processing of single line, but this is only
described as a function to clarify the processing for each function. When you actually create a program, you don't
necessarily have to make it functional.
8.2 Settings for Each Channel, FIFO, and Buffer
In this application note, even if processing is required for each channel, FIFO, or buffer, only one processing is
described. When actually creating a program, perform multiple processes as necessary.
8.3 Infinite Loop
To simplify the notation, there are some infinite loops in the processing flow. When actually creating a program, give
each loop a time limit so that it can be exited during overtime. Figure 7-1 shows an example of processing with a loop
time limit.

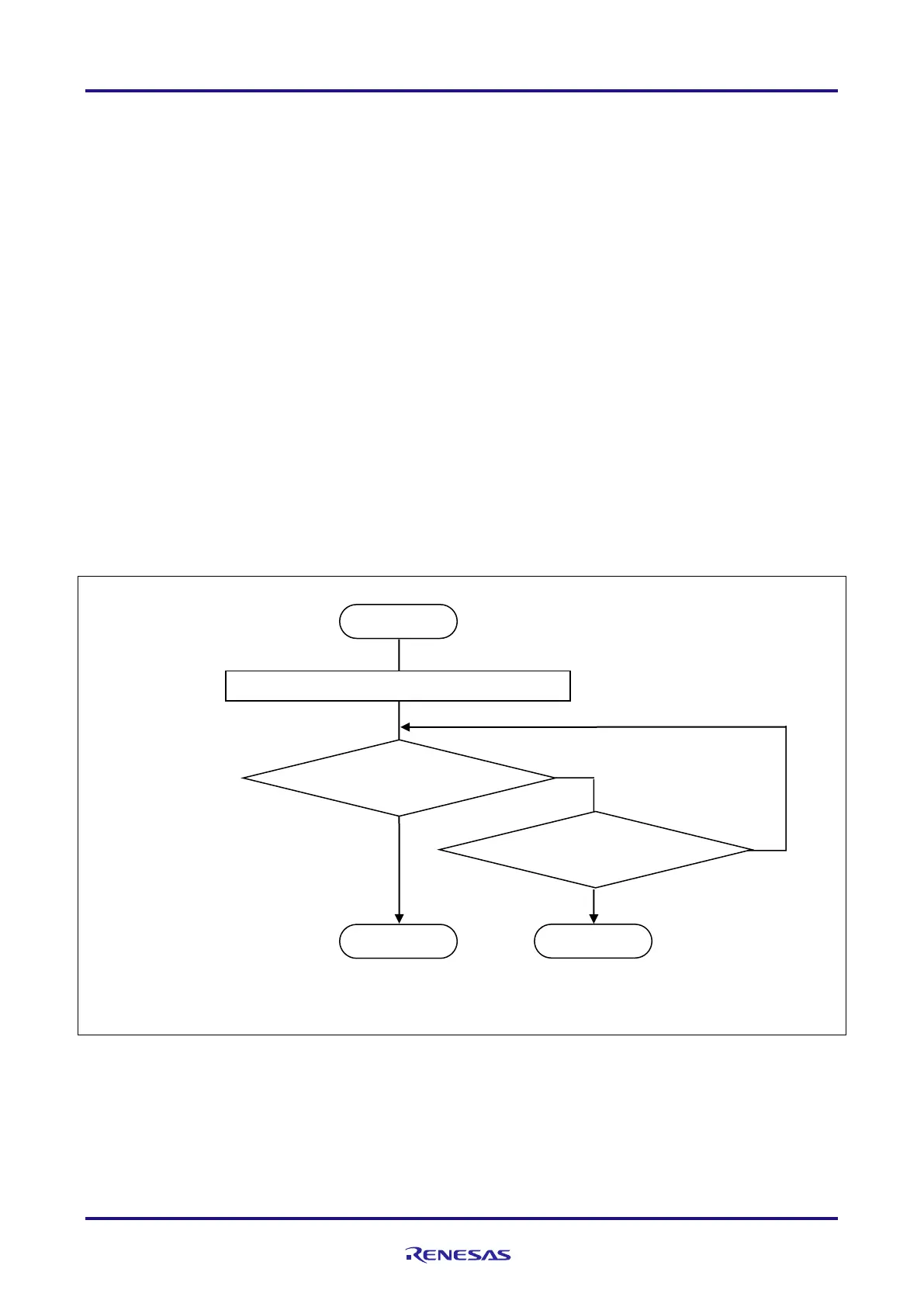

Figure 8-1 Example of Processing with Loop Time Limit
START
Prohibit use of transmit/receive FIFO buffer
END
Yes
Is the transmit / receive FIFO buffer
empty?
No
No
Yes
Time-out time has passed?
Timeout

Renesas RH850 Series Specifications

General

Core	RH850
Operating Voltage	2.7V to 5.5V
Package Options	LQFP, BGA
Communication Interfaces	CAN, LIN, FlexRay, Ethernet, SPI, I2C, UART
Target Applications	Automotive, Industrial
Timers	Multiple timers
ADC	12-bit, 10-bit
Security Features	Hardware Security Module (HSM)
Safety Features	Memory Protection
