Renesas RH850 Series Application Note

RH850 Series CAN Transmit Procedure (CAN FD Mode)
R01AN6029EJ0100 Rev.1.0 Page
7
of 42
May 10, 2017
arbitration lost (the message will be aborted in case of one-shot transmissions, and the message will be retained
(retransmitted) in case of normal transmissions). A message will not be successfully sent unless it is sent without an
arbitration lost or while the CAN bus is idle.
In such cases, there is a transmit abort function to discard the message being retransmitted. The transmit abort
function is effective when you want to set a time limit for sending a message, or when you want to send an urgent
high-priority message.
Figure 2-3 shows an application example of the transmit abort function.

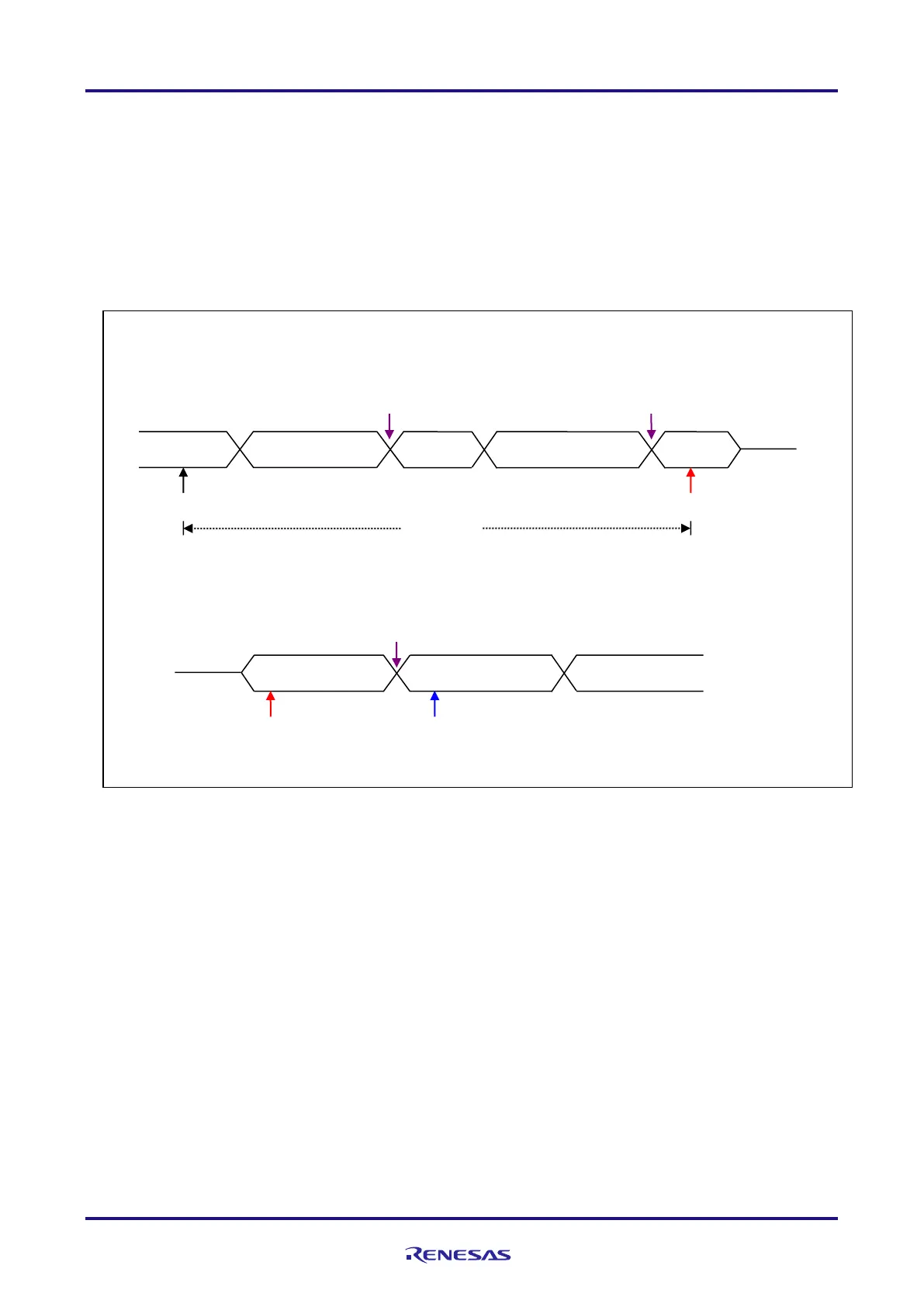

Figure 2-3 Application Example of Transmit Abort Function
Receiving
Send Message
Error
Flame
Resend Message
Receive
Transmit Request
Transmit Abort Request
(1) When you want to set a time limit for sending a message
After a specified time from the start of message transmission, you can set a time limit on message transmission by
requesting a transmit abort.
Error
Arbitration lost
Time Limit
(2) When you want to send an urgent high-priority message
If you perform a transmit abort while sending a message, the message being sent will be discarded after it detects
an arbitration lost or error, and you can send a high-priority message.
Arbitration Lost
Message①Transmit
Receive
Message②Transmit
Transmit Abort Request + Transmit Request of High-priority Message②
