Renishaw TONiC RESM20 User Manual

4
TONiC RESM20 angle encoder system installation guide
15
1
8
9
CAL button operation
Push and release (<3 seconds) - Calibration (CAL) routine enable/disable
Push and release (>3 seconds) - Automatic Gain Control (AGC) enable/disable
Push and hold during power ‘Off/On’ cycle - Restore factory defaults
Refer to readhead LED functionality chart for CAL LED indications
* Dynamic bend radius not applicable for UHV cables.

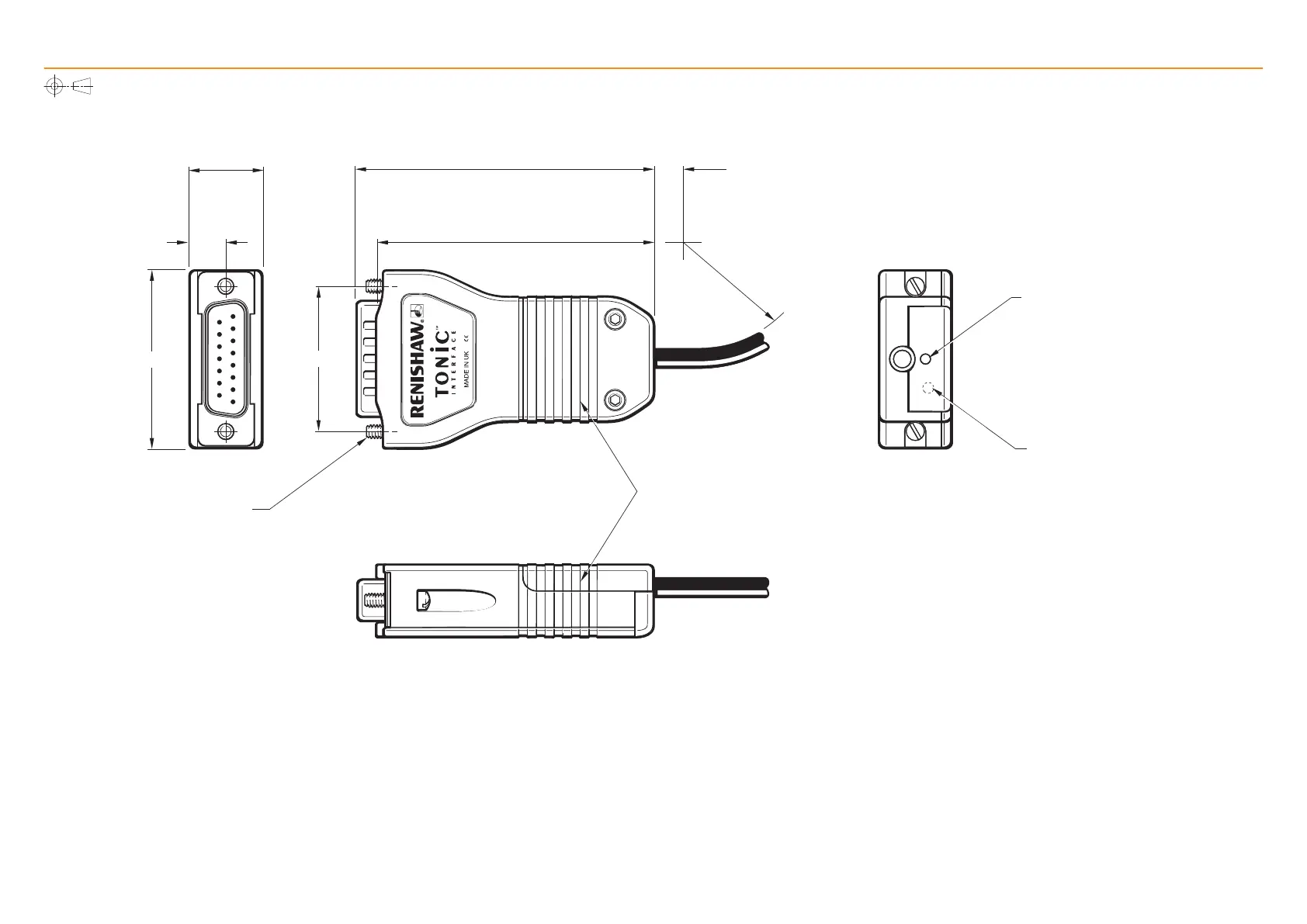

Ti interface drawing
Dimensions and tolerances in mm
16
4-40 UNC x 2
40
6 min
62
67
CAL/AGC push button switch
access hole Ø2.4
33.3
R>20 Dynamic bend radius*
R>10 Static bend radius
8
Diagnostic LED
(Ti0004 - Ti20KD and TD4000 - TD0040)
Cover plate

Renishaw TONiC RESM20 Specifications

General

Brand	Renishaw
Model	TONiC RESM20
Category	Media Converter
Language	English
