TONiC RESM20 angle encoder system installation guide

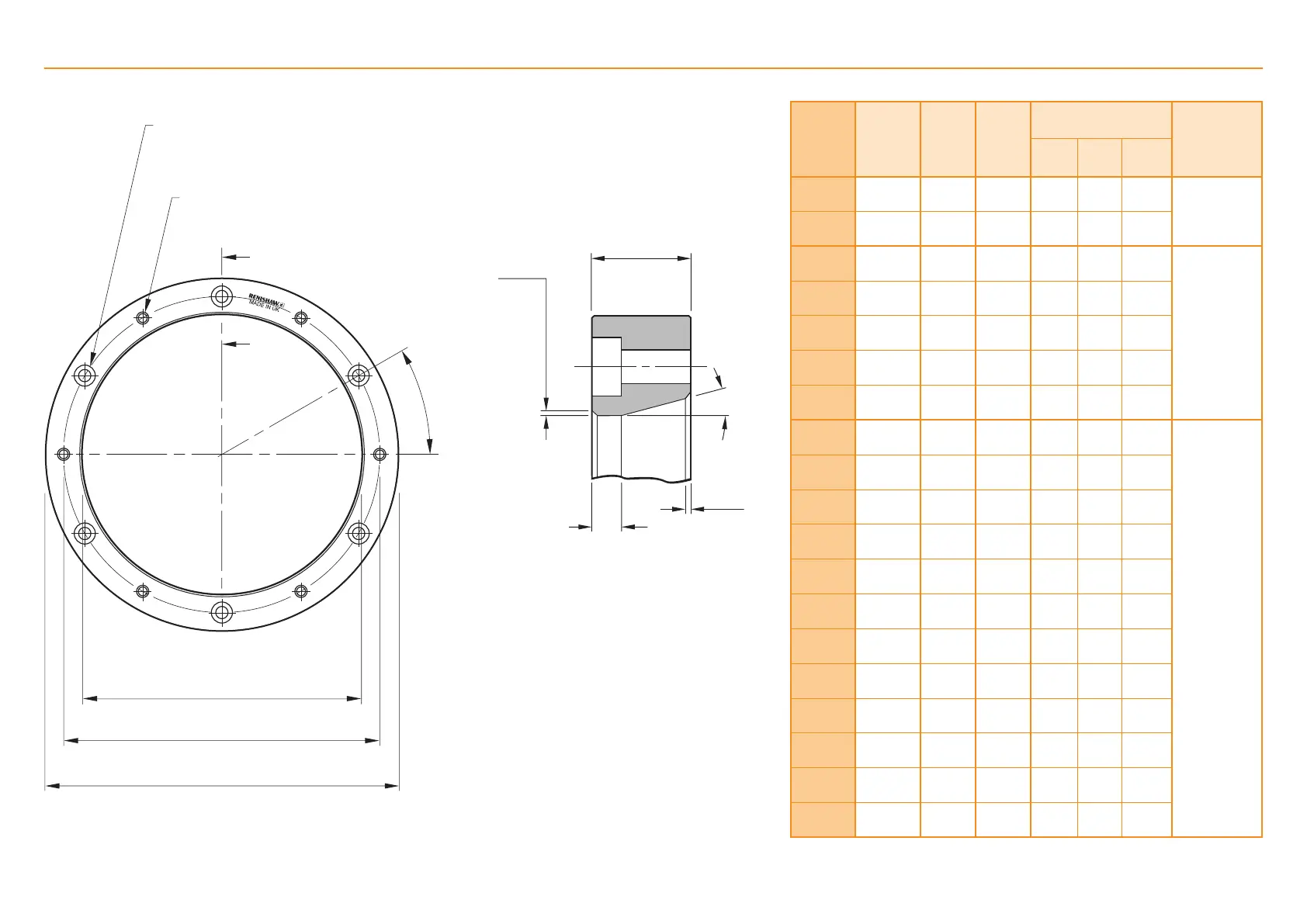

RESM20 installation drawing (‘A’ section)
N holes equally spaced on PCD ØDH Ø3.5
through c/bore top face Ø6 × 3 deep
N holes equally spaced on PCD ØDH M3 × 0.5
through c/bore top face Ø3.5 × 4 deep
A
θ
A
ØDI
ØDH
ØDO
NOTE: θ is the angle between one tapped hole and the adjacent
clearance hole. The angle between two clearance holes is 2θ.
*
There are no tapped holes on the 489mm ring.
Section A–A
Nominal
external
diameter
(mm)
Line
count
DO
(mm)
DI
(mm)
Mounting holes Readhead
model
DH
(mm)
N
θ
52 8 192
52.20
52.10
30.04
30.00
40 6 30°
T2021
57 9 000
57.35
57.25
37.04
37.00
47 6 30°
75 11 840
75.40
75.30
55.04
55.00
65 6 30°
T2011
100 15 744
100.30
100.20
80.04
80.00
90 6 30°
103 16 200
103.20
103.00
80.04
80.00
90 6 30°
104 16 384
104.40
104.20
80.04
80.00
90 6 30°
115 18 000
114.70
114.50
95.04
95.00
105 6 30°
150 23 600
150.40
150.20
130.04
130.00
140 9 20°
T2001
200 31 488
200.40
200.20
180.04
180.00
190 12 15°
206 32 400
206.50
206.10
186.05
186.00
196 12 15°
209 32 768
208.80
208.40
186.05
186.00
196 12 15°
229 36 000
229.40
229.00
209.05
209.00
219 12 15°
255 40 000
254.80
254.40
235.06
235.00
245 12 15°
300 47 200
300.40
300.20
280.06
280.00
290 16 11.25°
350 55 040
350.40
350.20
330.06
330.00
340 16 11.25°
413 64 800
412.70
412.30
392.08
392.00
402 18 10°
417 65 536
417.40
417.00
380.10
380.00
390 18 10°
489 76 800
489.12
488.72
451.10
450.90
462 20 18°
*
550 86 400
550.20
549.80
510.10
510.00
520 20 9°
10
0.5 × 45°
15° ±0.2°
1 x 45°
3
Dimensions and tolerances in mm
