13
DC Side Connection
WARNING: The Renogy Pure Sine Wave Inverters are suitable for 12V battery
bank systems ONLY. Not following the minimum DC requirement will cause
irreversible damage to the unit.
CAUTION: Be careful of the positive and negative poles. Reversing the poles
might cause permanent damage to the inverter. It will surely blow the internal
fuse.
NOTE: Damage to the Renogy inverters due to reverse polarity is NOT covered by
warranty.
NOTE: The input terminals of the inverters have large capacitors connected to
them. Once a positive and negative wire are connected to the terminals, it will
complete the circuit, and commence drawing a heavy current momentarily. As a
result, there may be a sparking occurring even if the inverter is in the off position.
To minimize sparking, it is recommended that the user have the appropriate size
wire feeding into the inverters and/or install an external fuse leading into the
inverter.
NOTE: The RNG-2000W inverter will have 4 terminals (2 positive and 2 negative).
This serves the purpose of splitting the potentially high amperages and protecting
the wires.
NOTE: The 500W inverter is used as the example in the wiring schematics. The
same principles apply to the 1000W and 2000W inverters.

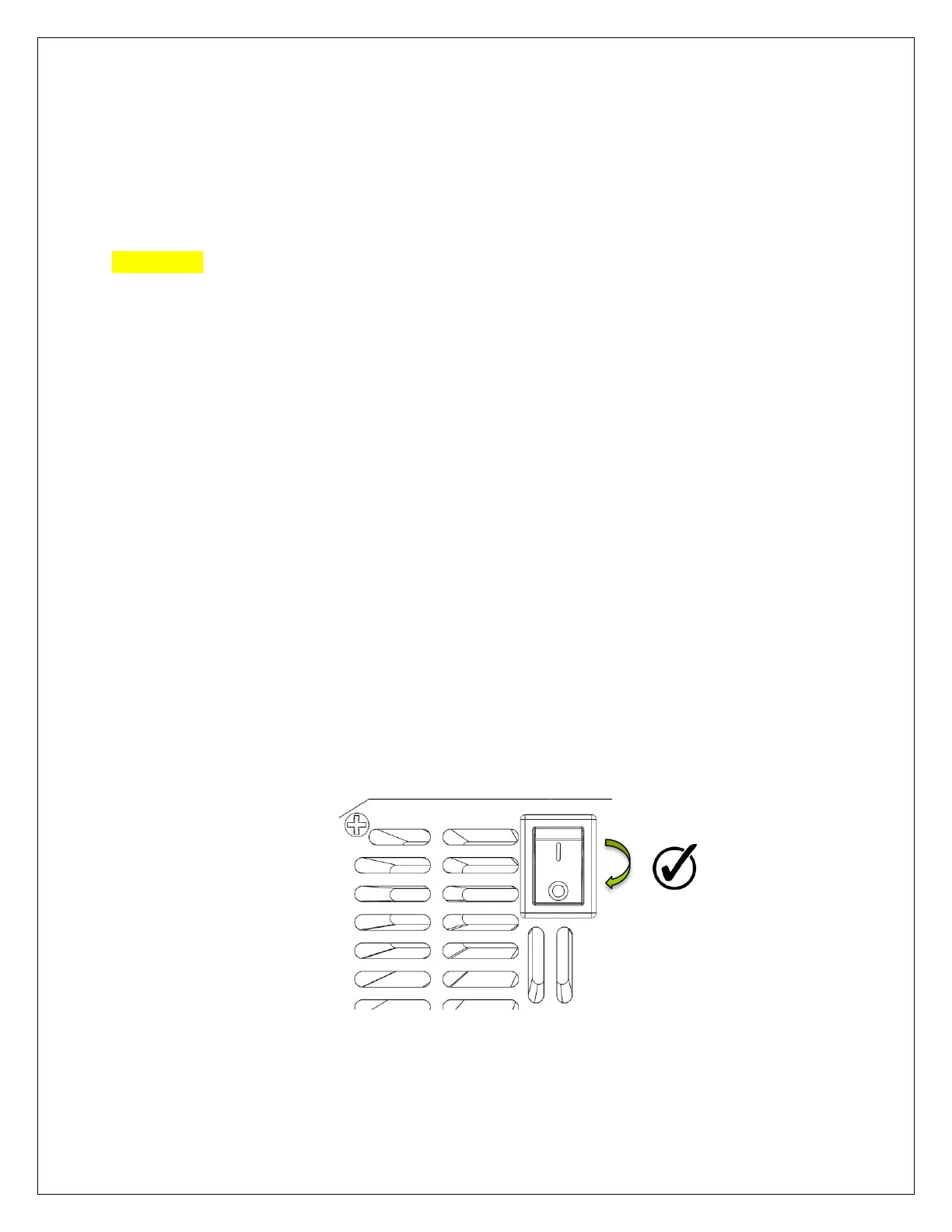

1. Flip inverter power to OFF position (on AC side)
To Next Page
