• The Inverter remote switch must be in the ON position and the AC/INV light on the Inverter Screen
must be a solid Orange light indicating the shore power is connected.
• On the Renogy Inverter Remote Switch, verify that the Red light is off and/or review the Inverter
Screen to see if any Inverter Faults are present. The most common faults are 03 (Battery Not
Detected) and 04 (Battery Under-voltage).
How do I verify my rooftop solar power is charging?
• There two different solar options for the Lithium System:
o There are 4 50W solar panels mounted on the roof, wired in series to create a 74.4VDC 200W
solar array that is connected to the 3500W 48V MPPT inverter / charger, to recharge the
51.2VDC 210 aH Lithium Ion battery.
o There is a factory installed Rover Boost DC to DC charge controller connected to the factory
installed external solar port to recharge the 51.2VDC 210 aH Lithium Ion battery.
• The rooftop solar panels are connected to an emergency disconnect switch on the roof and a
secondary disconnect switch near the inverter. There are multiple solar connections dependent on
production build:
• Units prior to MY2024, the solar routes through the inverter to the lithium battery.
o On the inverter LCD screen, press the down button to cycle through the screens until they get
to the one that shows PV Input Voltage on the left side of the screen and PV Output Current on
the right side of the screen.
o The PV Input Voltage must be over 60V for solar to charge from the 200W solar array on the
roof. The PV Output Amps (A) charge output displays how many Amps the solar is charging.
• Units built after MY2024, the solar routes through the Victron Solar Controller to the lithium battery.
o Use the Victron Connect APP. The PV Input Voltage must be over 60V for solar to charge from
the 200W solar array on the roof. The PV Output Amps (A) charge output displays how many
Amps the solar is charging. Solar will produce about 3-5A on sunny day

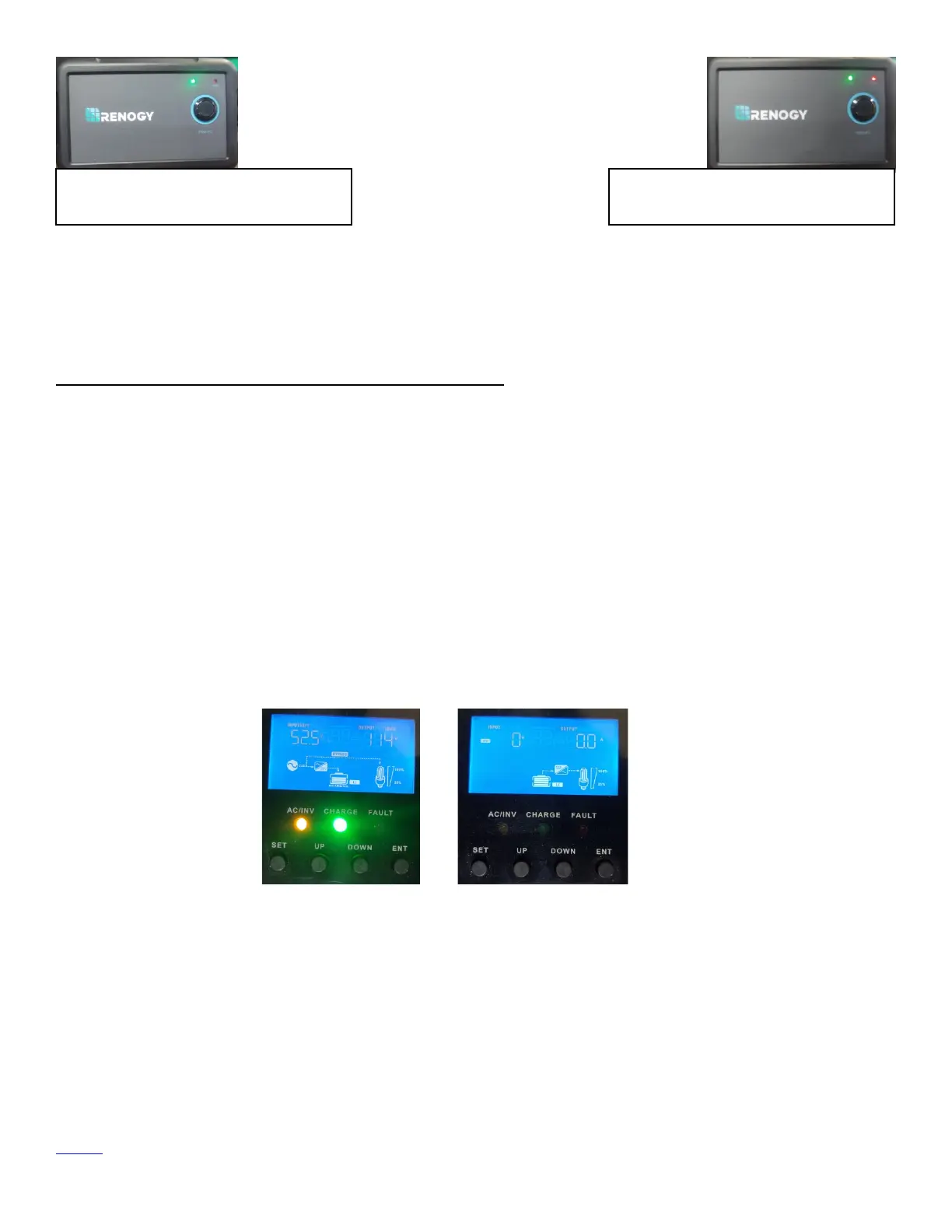

Screen
twice to get to the PV
Screen from Main Screen
Inverter Charger On/Off Remote
Green Light = Inverter Powered
Inverter Charger On/Off Remote
Red Light = Inverter Fault
