Reolink Argus 2 User Manual

Reolink Wireless Battery-powered Camera
55
Tips for Improving Detection Alarms
When the camera failed to detect some motion, below tips can help improve the
motion detection accuracy.
1. Adjust the sensitivity level to high.
2. Adjust the installation angel of the camera in the direction crossing the
possible intruder instead of facing him/her so that it can detect motion more
accurately.
3. Adjust the installation height, it’s suggested to mount camera 2 to 3 meters
from the ground. Mount the camera too low or too high both will cause it hard
to detect alarm.
4. Ensure the detecting target is within the detection range of the PIR sensor.
Ideal monitoring range is from 7ft to 33ft.

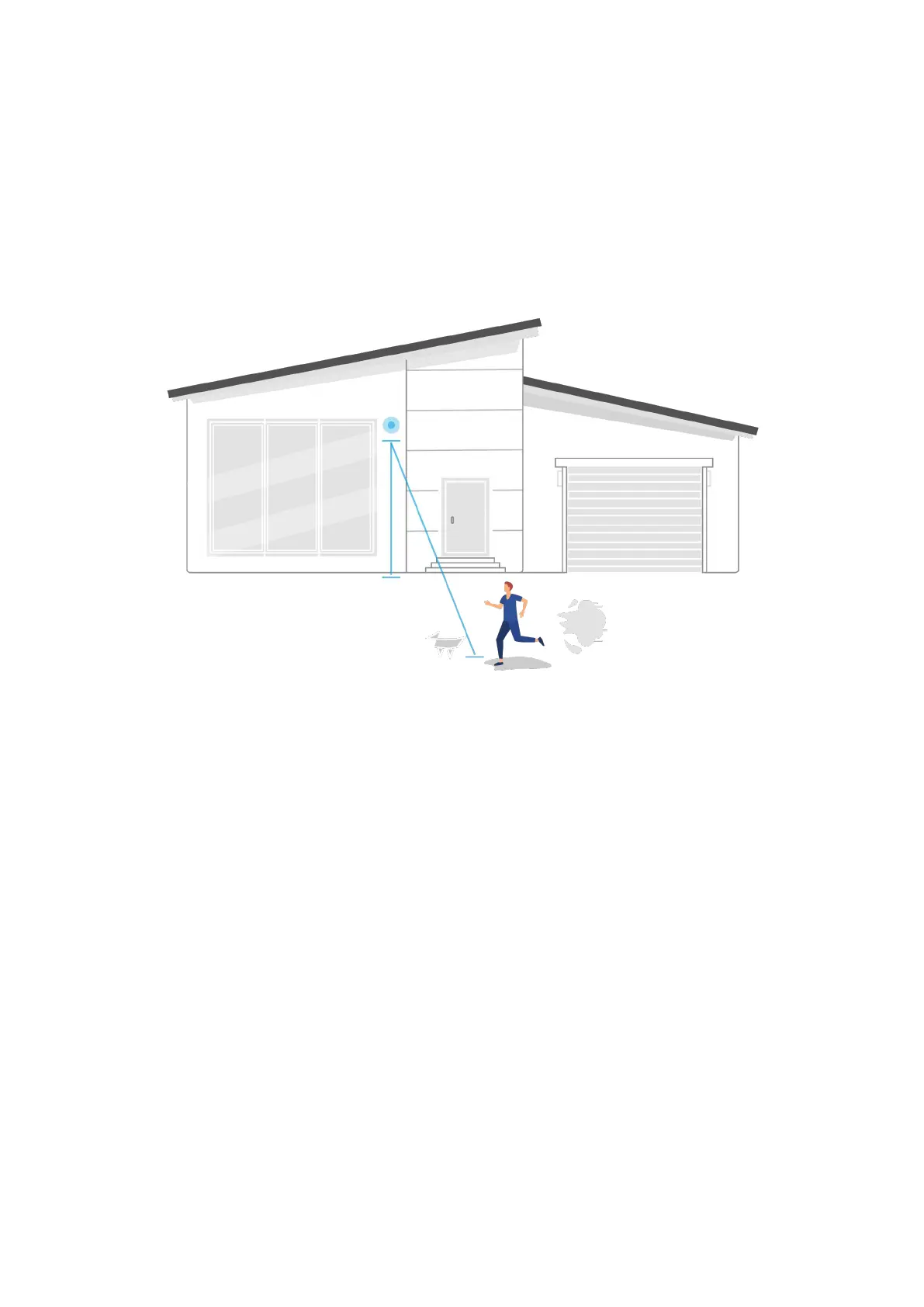

Mounting Height:
2-3 Meters
PIR Detecting Distance:

Reolink Argus 2 Specifications

General

Type	IP security camera
Placement supported	Indoor & outdoor
Connectivity technology	Wireless
Form factor	-
Weatherproof	Yes
Mounting type	Desk/Wall
Product color	Black, White
Protection features	Freeze resistant, Heat resistant, Waterproof
Total megapixels	2 MP
Maximum resolution	1920 x 1080 pixels
Video compression formats	H.264
Minimum illumination	0 lx
Sensor type	CMOS
Optical sensor size	1/2.8 \
Compatible memory cards	MicroSD (TransFlash)
Night vision distance	10 m
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Battery life	0.5 year(s)
Battery voltage	3.63 V
Battery capacity	5200 mAh
Power source type	Battery
Battery technology	Lithium
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-10 - 55 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 85 %
Mobile operating systems supported	Android, iOS
Number of cameras	1
Detection angle	120 °
Detection distance	9 m
Security algorithms	WEP, WPA-PSK, WPA2-PSK

Weight and Dimensions

Depth	59 mm
Width	65 mm
Height	119 mm
Weight	350 g
