Reolink E1 Zoom User Manual

Reolink Wireless Camera
User Manual
8

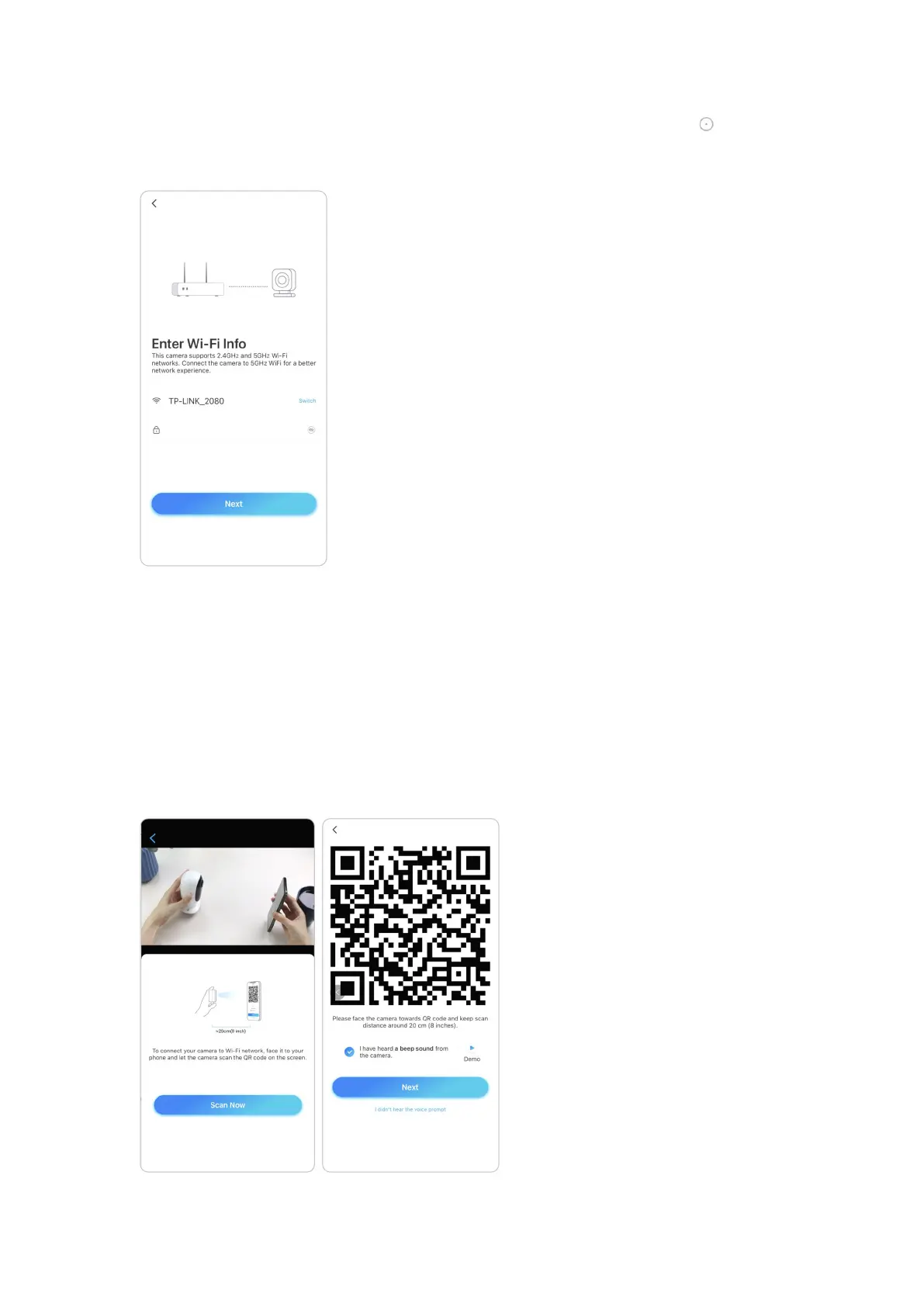

5. Enter the Wi-Fi password of the selected Wi-Fi network (you may tap to see
the Wi-Fi password you entered and double-check that the password is correct)
and then tap Next.
6. A QR code will be generated and displayed on your phone. Please place the QR
code on your phone in front of the camera’s lens at a distance of about 20 cm (8
inches) and let the camera scan the QR code. After the QR code is scanned
successfully, tick “I have heard a beep sound from the camera” or “I have heard the
voice prompt” and tap Next.
Notes:
1. Please rip off the protection film of the camera’s lens.
2. You may double tap on the QR code to enlarge it.

Reolink E1 Zoom Specifications

General

Sensor type	CMOS
Number of sensors	1
Optical sensor size	1/2.7 \
Total megapixels	5 MP
Maximum resolution	2560 x 1920 pixels
Video compression formats	H.264
Optical zoom	3 x
Zoom capability	Yes
Focal length range	2.8-8 mm
Maximum aperture number	1.6
Type	IP security camera
Placement supported	Indoor
Connectivity technology	Wireless
Pan range	0 - 355 °
Tilt angle range	0 - 50 °
Minimum illumination	0 lx
LED type	IR
Infra-red wavelength	850 nm
Night vision distance	12 m
Number of illumination LEDs	10
DC output current	1 A
DC output voltage	5
Power source type	DC
Compatible memory cards	MicroSD (TransFlash)
Audio system	2-way
Bluetooth	No
Number of users	20 user(s)
Networking standards	IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Supported network protocols	HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P
Security algorithms	WPA-PSK, WPA2-PSK
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-10 - 55 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 85 %
Form factor	-
Mounting type	Ceiling/wall
Product color	White

Weight and Dimensions

Height	111 mm
Weight	250 g
Diameter	80 mm
