ResMed H5i Disinfection Guide

English 2

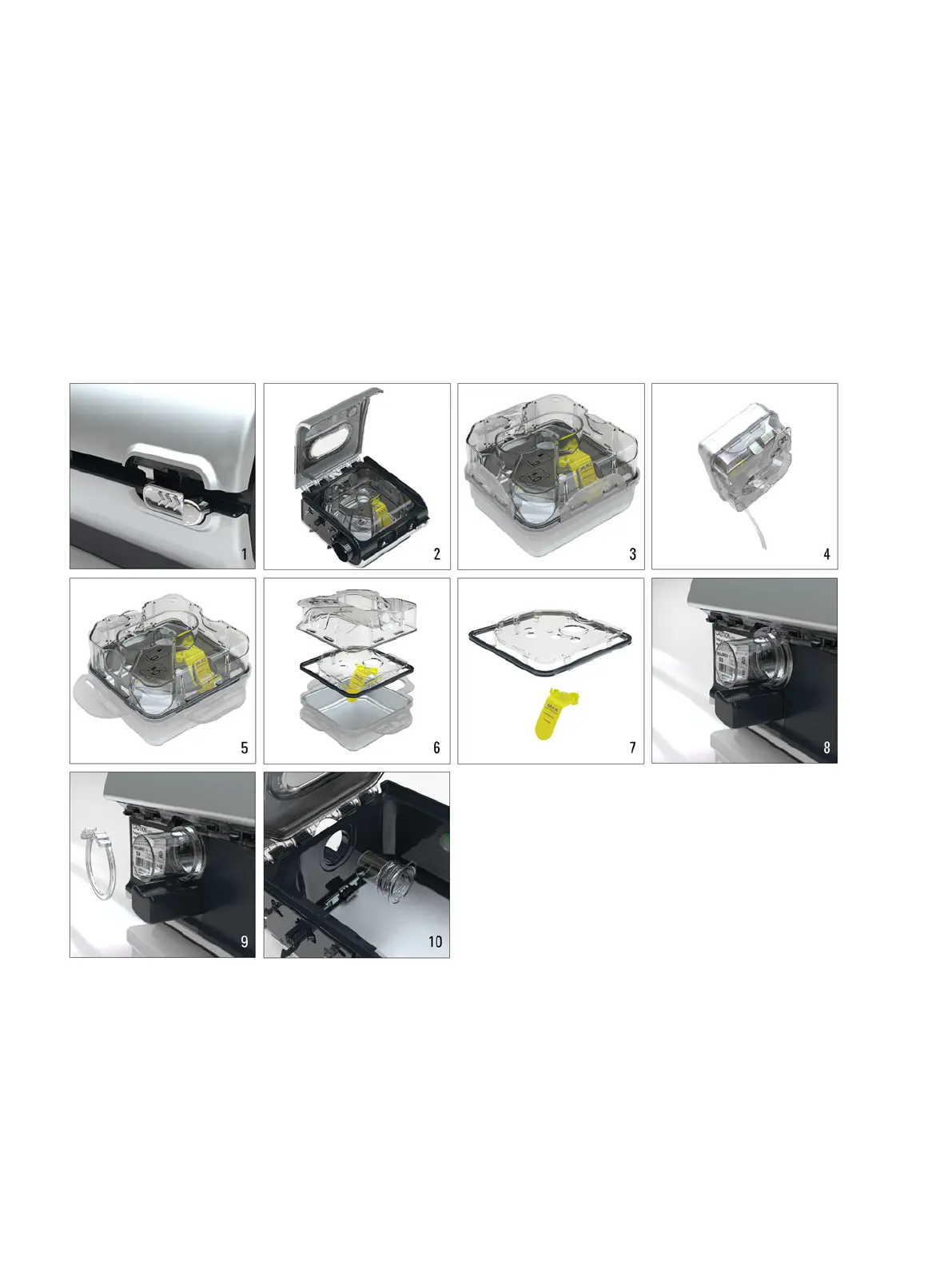

Disassembling the H5i
The following instructions provide guidance on how to correctly disassemble the H5i:
1. Slide the latch.
2. Lift open the flip lid.
3. Remove the water tub.
4. Discard any excess water from the water tub.
5. Unclip all four side latches.
6. Pull apart the tub lid, plate and base.
7. Remove the maximum water level mark from the plate by pinching and pushing out the locks.
8. Locate the air outlet on the back of your H5i.
9. Remove the outlet clip by pulling apart the clip ends and sliding it off.
10. Remove the air outlet by pushing it through to the inside of the H5i.

ResMed H5i Specifications

General

Water Capacity	380 mL
Heated Humidification	Yes
Compatibility	ResMed S9 series CPAP machines
Power Source	Integrated with CPAP device
Power Requirements	24V via S9 device
