Resol DeltaSol BS/1 User Manual

DeltaSol
®
BS
© RESOL 08018 deltasol_bs.monen.indd
3 |
!



• system-monitoringdisplay
• upto4temperaturesensors
Pt1000
• heatquantitymeasurement
• functioncontrol
• user-friendlyoperation
through simple handling
• optionalpumpspeedcontrol,
solar operating hours counter
and thermostat function

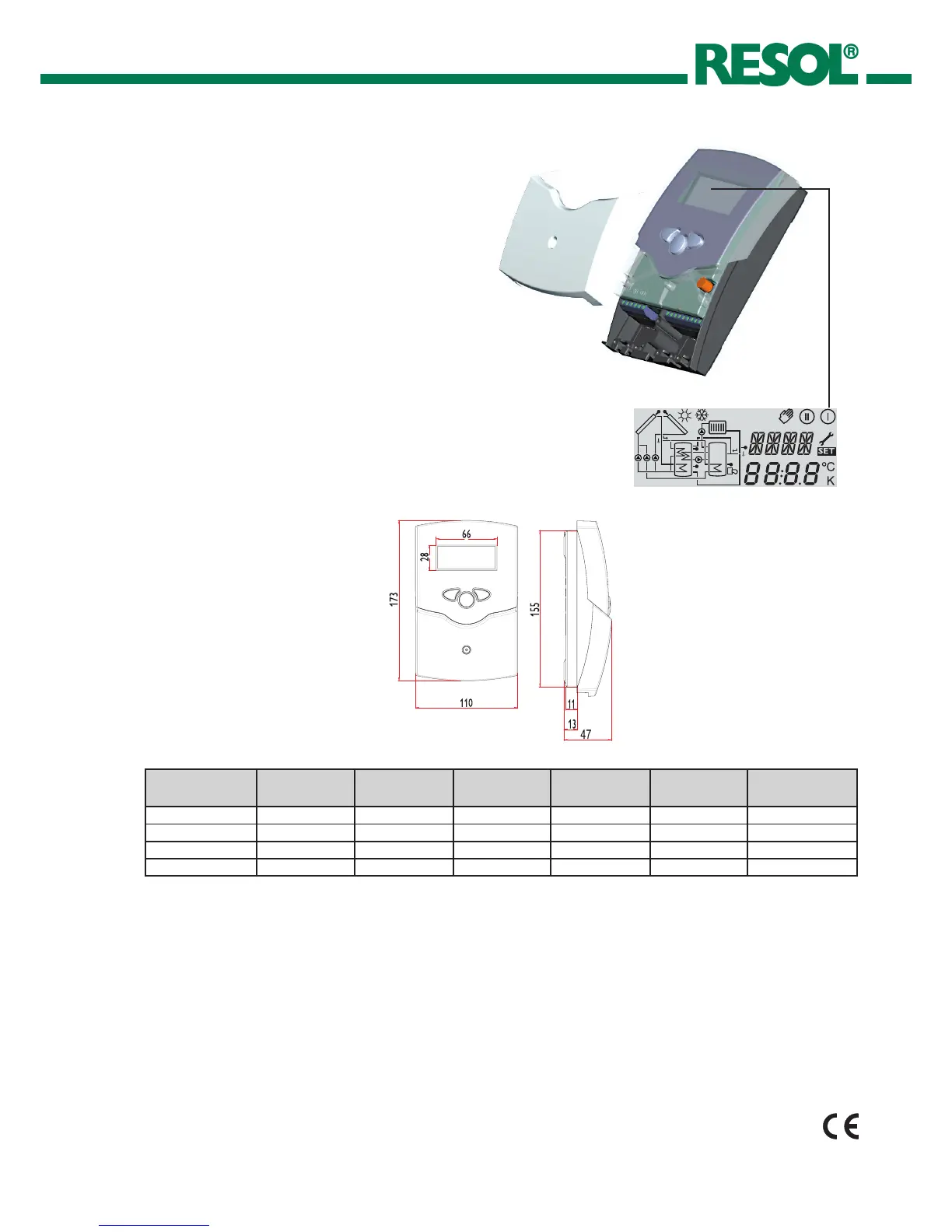

Technical data
Housing:
plastic, PC-ABS and PMMA
Protection type: IP 20 / DIN 40050
Ambient temp.: 0 ... 40 °C
Dimensions: 172 x 110 x 46 mm
Mounting: wall mounting, mounting
into patch-panels is possible
Display: System screen for systems
visualisation, 16-segment display, 7-seg-
ment display, 8 symbols for system
status and operating control lamp
Operation: 3 push buttons at the
front of the housing
Functions: Differential tempera-
ture controller with optional system
functions. Function control according
to BAW-guidelines, operating hours
counter for solar pump, tube collec-
tor function, pump speed control (PG
67.30 and PG 69.30) as well as heat
quantity measurement.
Inputs: for 4 temperature sensors
Pt1000
Outputs: depending on version, see
above
Power supply:
220 ... 240 V~
Mode of operation:
Type 1.b (version 66.30, 68.30)
Type 1.y (version 67.30, 69.30)
Switching capacity:
semiconductor relay:
1 (1) A (220 ... 240) V~
electromechanical relay:
2 (1) A (220 ... 240) V~
Controller
version PG
Semiconductor
relay
Standard relay Operating
hours counter
Pump speed
control
Thermostat
function
Heat quantity
measurement
66.30 0 1 yes no no yes
67.30 1 0 yes yes no yes
68.30 0 2 yes no yes yes
69.30 1 1 yes yes yes yes
Controller version
The DeltaSol
®
BS is a controller for
standard solar thermal systems. It pro-
vides a clear operating concept and is
equipped with a system-monitoring
display. Flashing symbols for sensors,
pumps and valves show temperatures,
temperature differences and active ac-
tuators. The DeltaSol
®
BS controller is
available in 4 versions
Scope of delivery:
1 x DeltaSol
®
BS
1 x accessory bag
1 x fuse T4A
2 x screws and dowels
4 x strain relief and screws
Additionally enclosed in the full kit:
1 x sensor FKP6
2 x sensor FRP6
