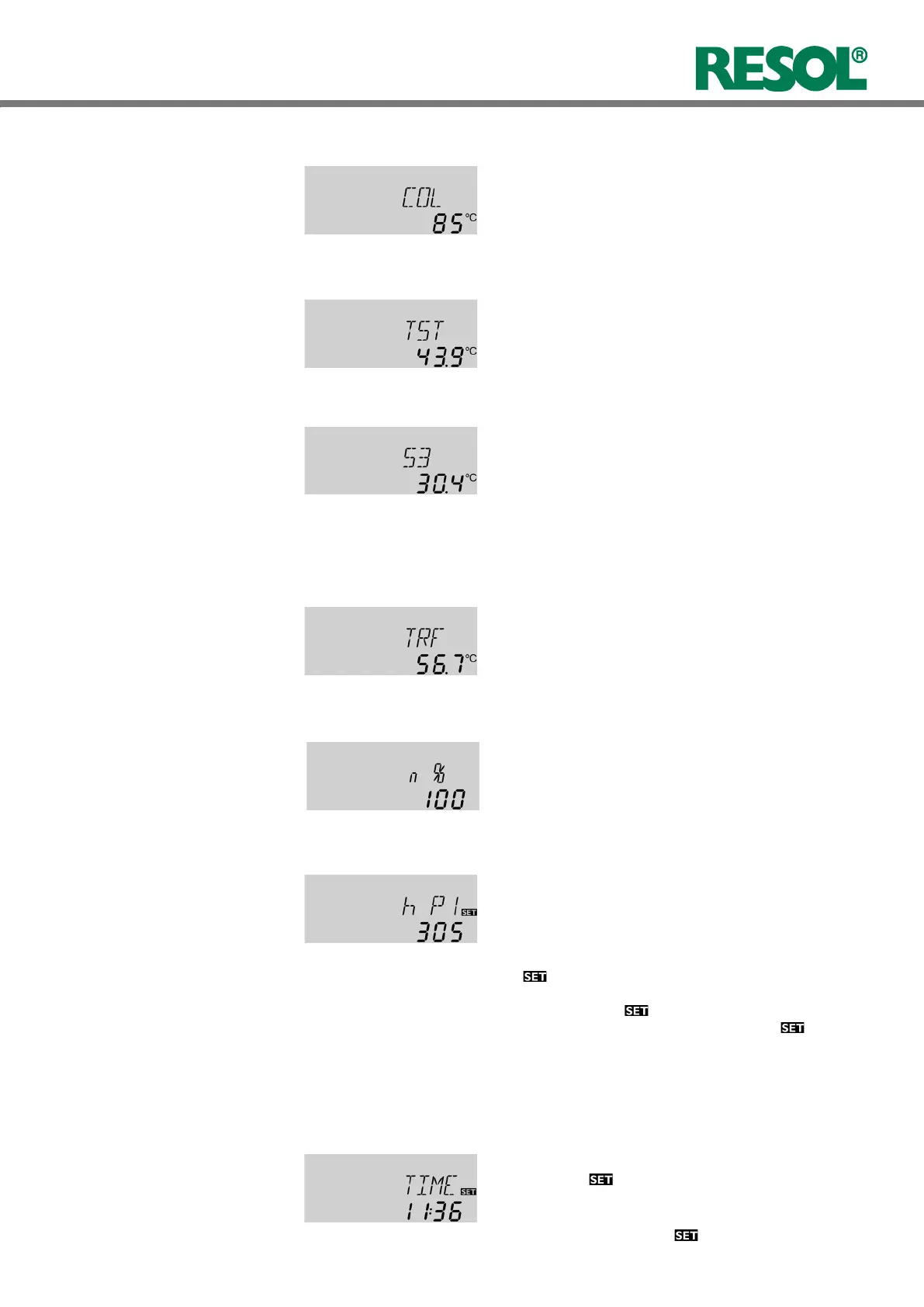

4.1.1 Collector temperature
Displays the actual collector temperature.
• COL : collector temperature
COL:
Collector temperature
Display range: -40 ... +250 °C
4.1.2 Store temperatures
Displays the actual store temperature.
• TST : store temperature
• TSPL : store temperature base
• TSPU : store temperature top
TST, TSTL, TSTU:
Store temperature
Display range: -40 ... +250 °C
4.1.3 Sensors 3 and 4
Display of the current temperature at the corresponding
additional sensor (without control function).
• S3 : temperature sensor 3
• S4 : temperature sensor 4
Note: Only if temperature sensors are connected, will
S3 and S4 be displayed.
S3, S4:
Sensor temperatures
Display range: -40 ... +250 °C
4.1.4 Other temperatures
Display of the current temperature at the sensor.
• TRF : temperature - return
TRF:
Other measured
temperatures
Display range: -40 ... +250 °C
4.1.5 Pump speed
Display of the actual pump speed.
• n % : actual pump speed (1-pump system)
• n1 % : actual pump speed pump 1
n %, n1 %:
Actual pump speed
Display range: 30 ... 100 %
4.1.6 Operating hours counter
The operating hours counter accumulates the solar operating
hours of the respective relay (h P / h P1 / h P2). Full hours
are displayed.
The accumulated operating hours can be set back to zero.
As soon as one operating hours channel is selected, the sym-
bol
is displayed. Press the SET (3) button for approx. 2
seconds in order to access the RESET-mode of the counter.
The display symbol will flash and the operating hours
will be set to 0. Confirm the reset with the button in
order to finish the reset.
In order to interrupt the RESET-process, do not press a
button for about 5 seconds. The display returns to the
display mode.
h P / h P1 / h P2:
Operating hours counter
Display channel
4.1.7 Time
In this channel the current time is indicated.
Press button
for 2 seconds, the hours will then be
displayed. Press the button again, the minutes will then be
displayed (flashing). The time can be set using buttons 1 and
2 and saved by pressing the button.
