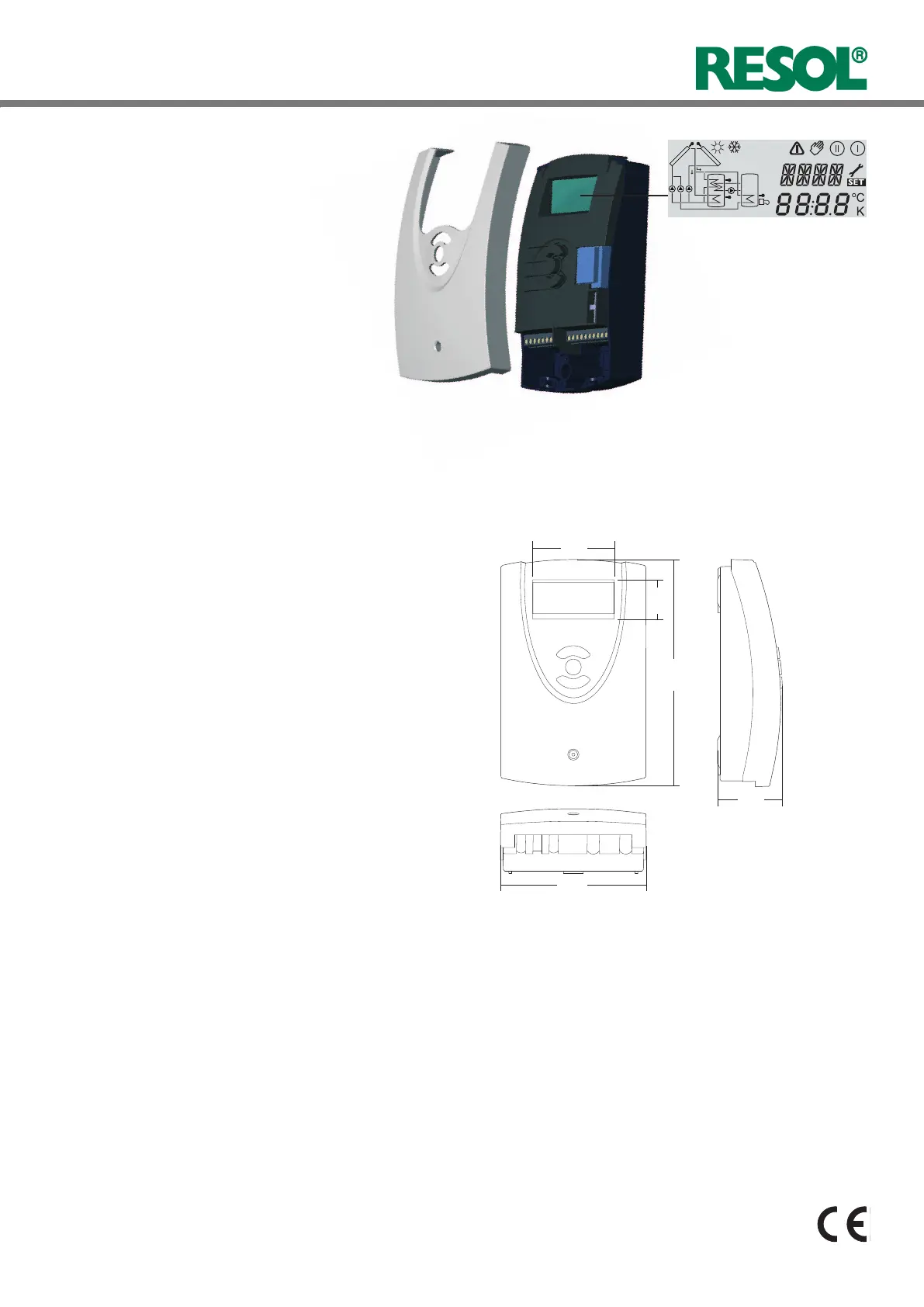

D e lt a S o l

C/4

3 |

111

172

Overview of functions

• System-Monitoring display

• up to 4 temperature sensors

Pt1000

• heat quantity measurement

• function control

• user-friendly operation

through easy handling

• easy-to-mount housing with

outstanding design

• speed control, solar operating

hours counter, thermostat

function

• RESOL VBus

• real time clock

Technical Data

Housing: plastic, PC-ABS and PMMA

Protection type: IP 20 / DIN 40050

Ambiant temp.: 0 ... 40 °C

Dimensions: 172 x 110 x 46 mm

Mounting: wall mounting, also suitable

for mounting into patch panels

Display: System-Monitor for sys-

tem visualisation, 16-segment display,

7-segment display, pictograms

Operation: 3 push buttons at the

front of the housing

Functions: Temperature differential

controller with optional add-on func-

tions. function control according to

BAW-guidelines, operating hours coun-

ter, tube collector function, speed con-

trol and heat quantity measurement

Inputs: for 4 temperature sensors

Pt1000

Outputs:

1 semiconductor relay, 1 standard relay

Bus: RESOL VBus

Power supply:

100 ... 240 V~

Total switching capacity:

3 (2) A (100 ... 240) V~

Mode of operation:

Type 1.y

Switching capacity per relay:

Semiconductor relay:

1 (1) A (100 ... 240) V~

Electromechanical relay:

2 (1) A (100 ... 240) V~

Scope of delivery:

1 x D e lt a S o l

C/4

1 x accessory bag

1 x spare fuse T2A

2 x screws and dowels

4 x strain relief and screw

Additionally contained in the full kit:

1 x sensor FKP6

2 x sensor FRP6
