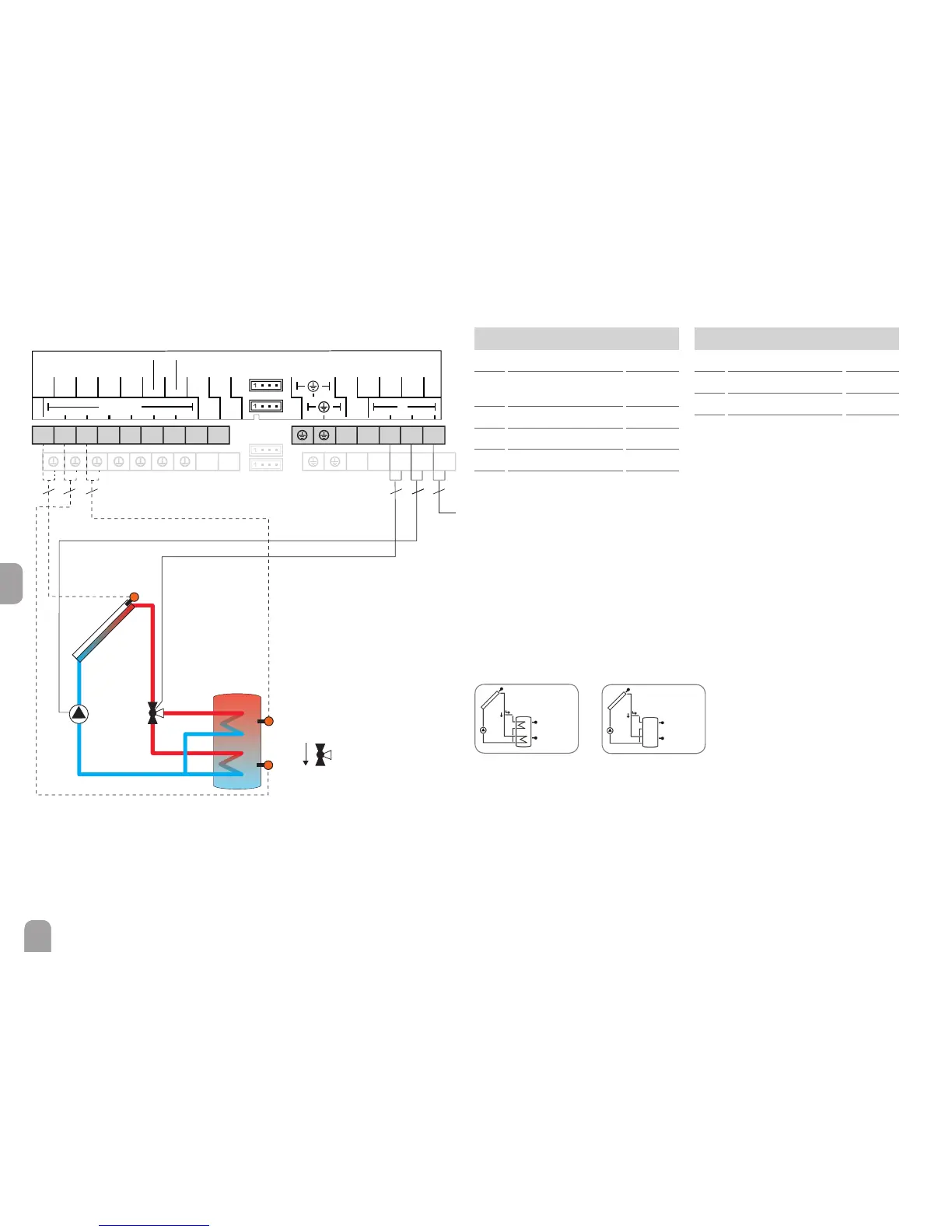

System 4: Solar system with 1 store and 3-port valve for store loading in layers
The controller compares the temperature at sensor S1 to the temperatures at
sensors S2 and S3. If the measured temperature differences are higher than the
adjusted switch-on temperature differences, the pump (R1) will be activated and
the corresponding store zone will be loaded up to the adjusted store maximum
or set temperature respectively via the valve (R2). The priority logic effects prior
loading of the upper zone of the store.
Hydraulic variant 1
Hydraulic variant 2
Sensors
S1 Temperature collector 1 / GND
S2 Temperature store
base
2 / GND
S3 Temperature store top 3 / GND
S4 Free 4 / GND
S5 Free 5 / GND
S6 Free S6
Relay
R1 Solar pump R1 / N / PE
R2 Valve solar circuit R2 / N / PE
R3 Free R3 / N / PE
R4 Free R4 / R4
R2
R1
S3
S2
S1
