2.6 Systems

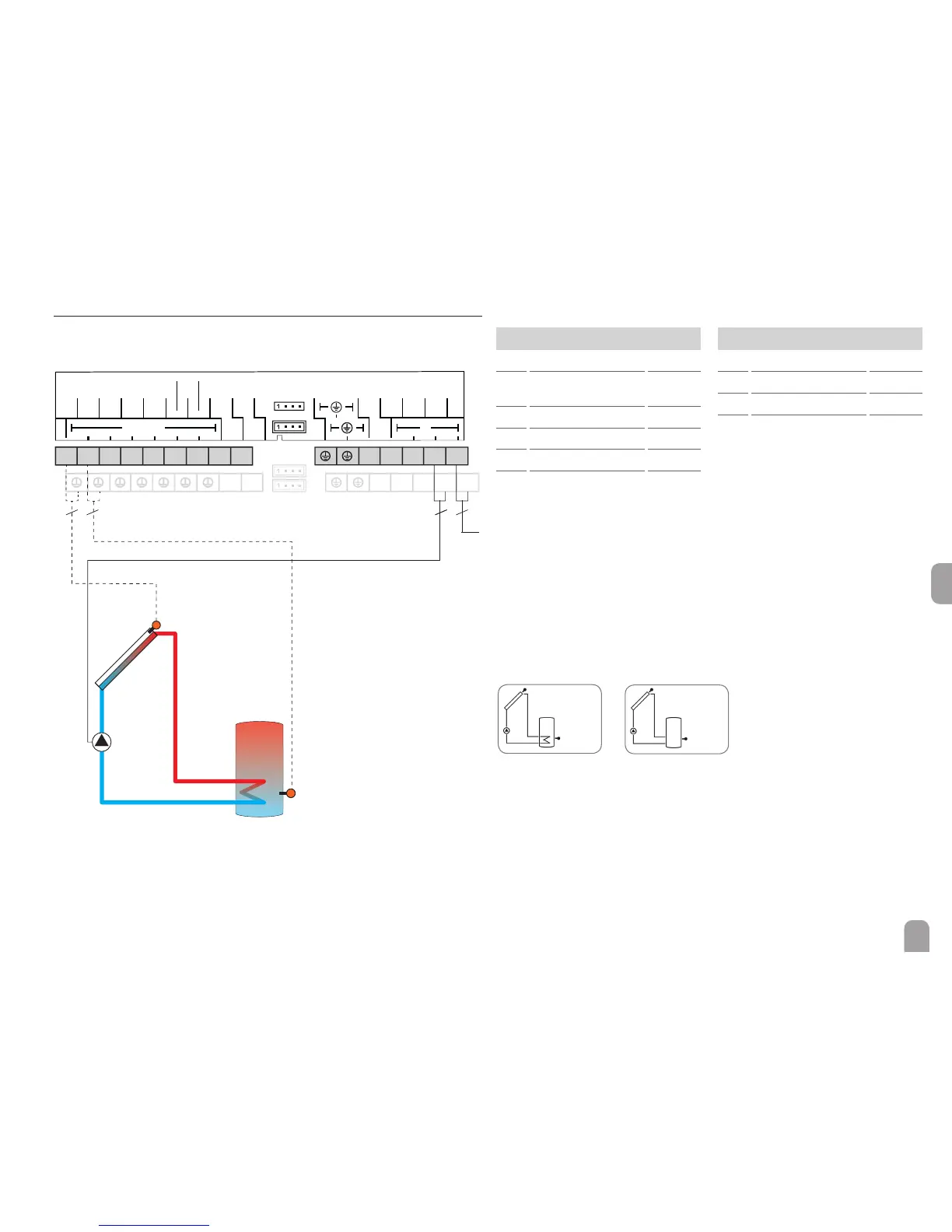

System 1: Standard solar system with 1 store
The controller calculates the temperature difference between collector sensor
S1 and store sensor S2. If the difference is larger than or identical to the adjusted
switch-on temperature difference, the pump (R1) will be switched on and the store
will be loaded until the switch-off temperature difference or the maximum store
temperature is reached.
Hydraulic variant 1
Hydraulic variant 2
Sensors
S1 Temperature collector 1 / GND
S2 Temperature store
base
2 / GND
S3 Free 3 / GND
S4 Free 4 / GND
S5 Free 5 / GND
S6 Free S6
Relay
R1 Solar pump R1 / N / PE
R2 Free R2 / N / PE
R3 Free R3 / N / PE
R4 Free R4 / R4
S2
R1
S1
VBus
VBus
S5/V40
S4
S3
GND
S6
S7
Sensors
Relais
S2
S1
N
R3
R2
R1
L
R4
PWM A
0-10 V
PWM B
0-10 V
R4
N N N N
R3 R2 R1 L
1234
56789
10 11
332
2
Netz
Mains
