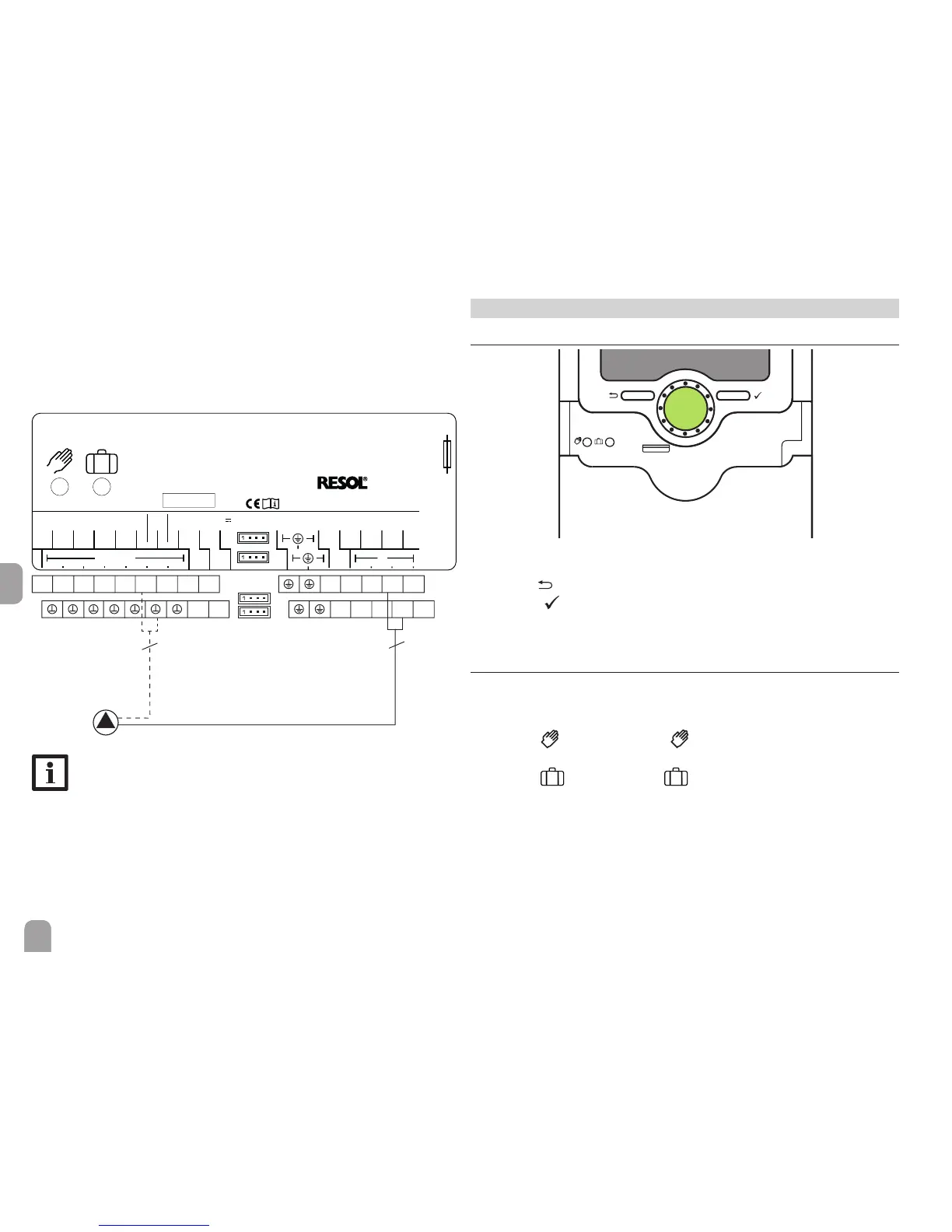

3 Operation and function
3.1 Buttons and adjustment dial
The controller is operated via 2 buttons and 1 adjustment dial (Lightwheel
®
) below
the display:
Left button (
) - escape button for changing into the previous menu
Right button (
) - conrming / selecting
Lightwheel
®
- scrolling upwards / scrolling downwards, increasing adjustment
values / reducing adjustment values
3.2 Microbutton for manual mode and holiday mode
The controller is equipped with two microbuttons for quick access to the manual
mode and the holiday function. The microbuttons are located underneath the slida-
ble housing cover, the SLider.
Microbutton
: If the microbutton is briey pressed, the controller changes
to the manual mode menu (see page 62)
Microbutton
: The microbutton is used for activating the holiday function
(see page 61). If the microbutton is pressed and held down
for approx. 3 s, the adjustment channel DAYS appears, allowing
to enter the number of days for an absence. If the parameter is
set to a value higher than 0, the function becomes active using
the adjustments that have previously been made in the H-DAY-
menu. The days will be counted backwards at 00:00. If the value
is set to 0, the function is deactivated.
Electricalconnectionofahigh-efciencypump(HE pump)
Speed control of a HE pump is possible via a PWM signal / 0-10 V control. The pump
has to be connected to the relay (power supply) as well as to one of the PWM A/B
outputs of the controller. In the REL adjustment channel one of the PWM control
types as well as a relay have to be selected (see page 60).
VBus
VBus
S5/V40
S4 S3
GND
S6
S7
DeltaSol
®
SL
Made in Germany
Sensors
S2 S1
100 ... 240 V
T4A
50-60 Hz
N
R3 R2 R1
L
R1-R3|1 (1) A 240 V~R4|1 (1) A 30V
IP 20
R4 PWM A
0-10 V
PWM B
0-10 V
SD
R4
N N N N
R3 R2 R1 L
1234
56789
10 11
3
2
Note:
For more information about relay control, see page 60.
