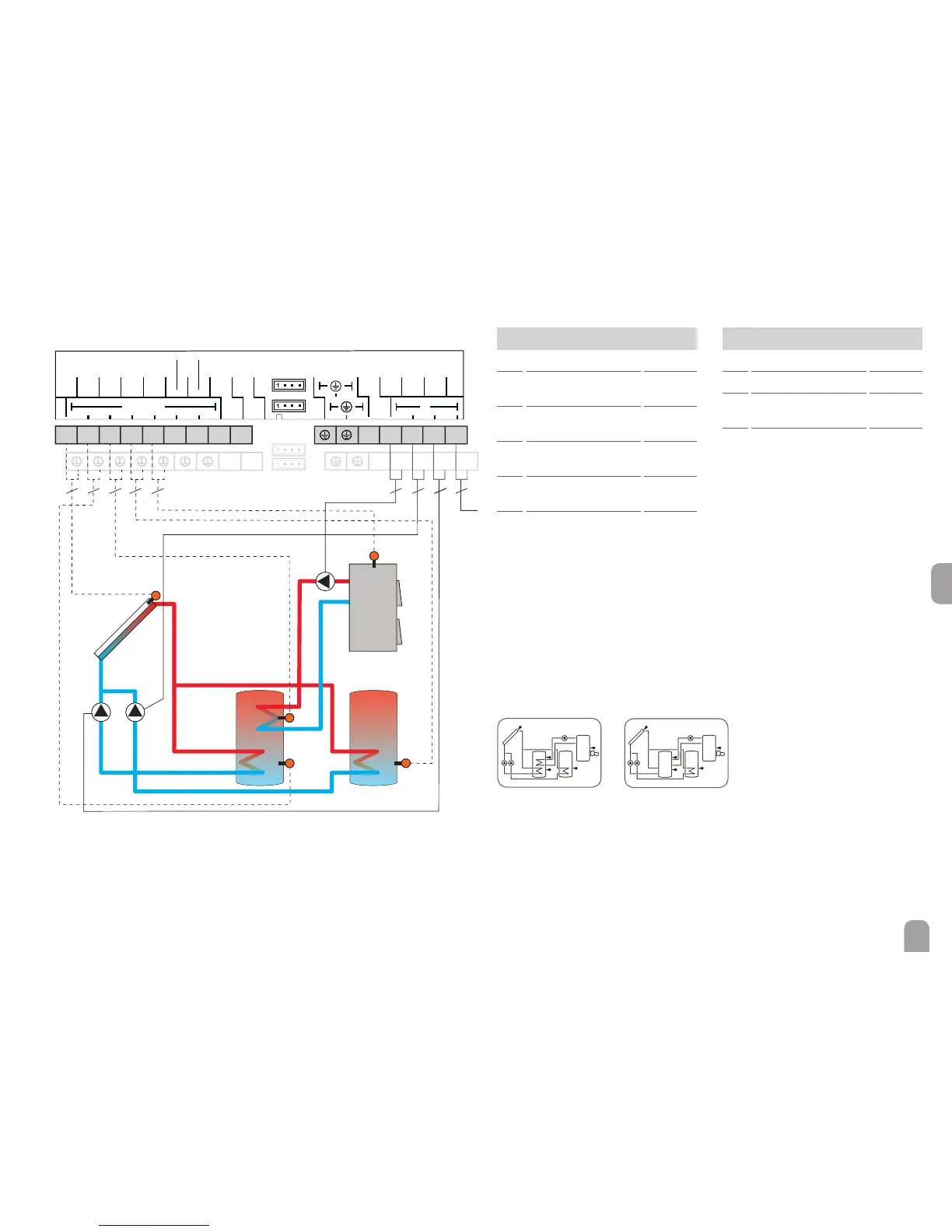

System 27: 2-store solar system with pump logic
The controller compares the temperature at sensor S1 to the temperatures at
sensors S2 and S4. If the measured temperature differences are higher than the
adjusted switch-on temperature differences, the pump (R1 and / or R2) will be
activated and the corresponding store will be loaded up to the adjusted store
maximum or set temperature respectively at most. The priority logic effects prior
loading of store 1.
With another temperature differential function (S5 heat source/S3 heat sink), af-
terheating of the store with a solid fuel boiler can be carried out via another pump
(R3).
R2
R3
R1
S4
S1
S2
VBus
VBus
S5/V40
S4 S3
GND
S6
S7
Sensors
Relais
S2 S1
N
R3 R2 R1
L
R4 PWM A
0-10 V
PWM B
0-10 V
R4
N N N N
R3 R2 R1 L
1234
56789
10 11
Netz
Mains
S3
332
2 3 3
2 22
S5
Hydraulic variant 1
Hydraulic variant 2
Sensors
S1 Temperature collector 1 / GND
S2 Temperature store
base
2 / GND
S3 Temperature store –
solid fuel boiler
3 / GND
S4 Temperature store
2 base
4 / GND
S5 Temperature
solid fuel boiler
5 / GND
S6 Free S6
Relay
R1 Solar pump store 1 R1 / N / PE
R2 Solar pump store 2 R2 / N / PE
R3 Loading pump
solid fuel boiler
R3 / N / PE
R4 Free R4 /R4
