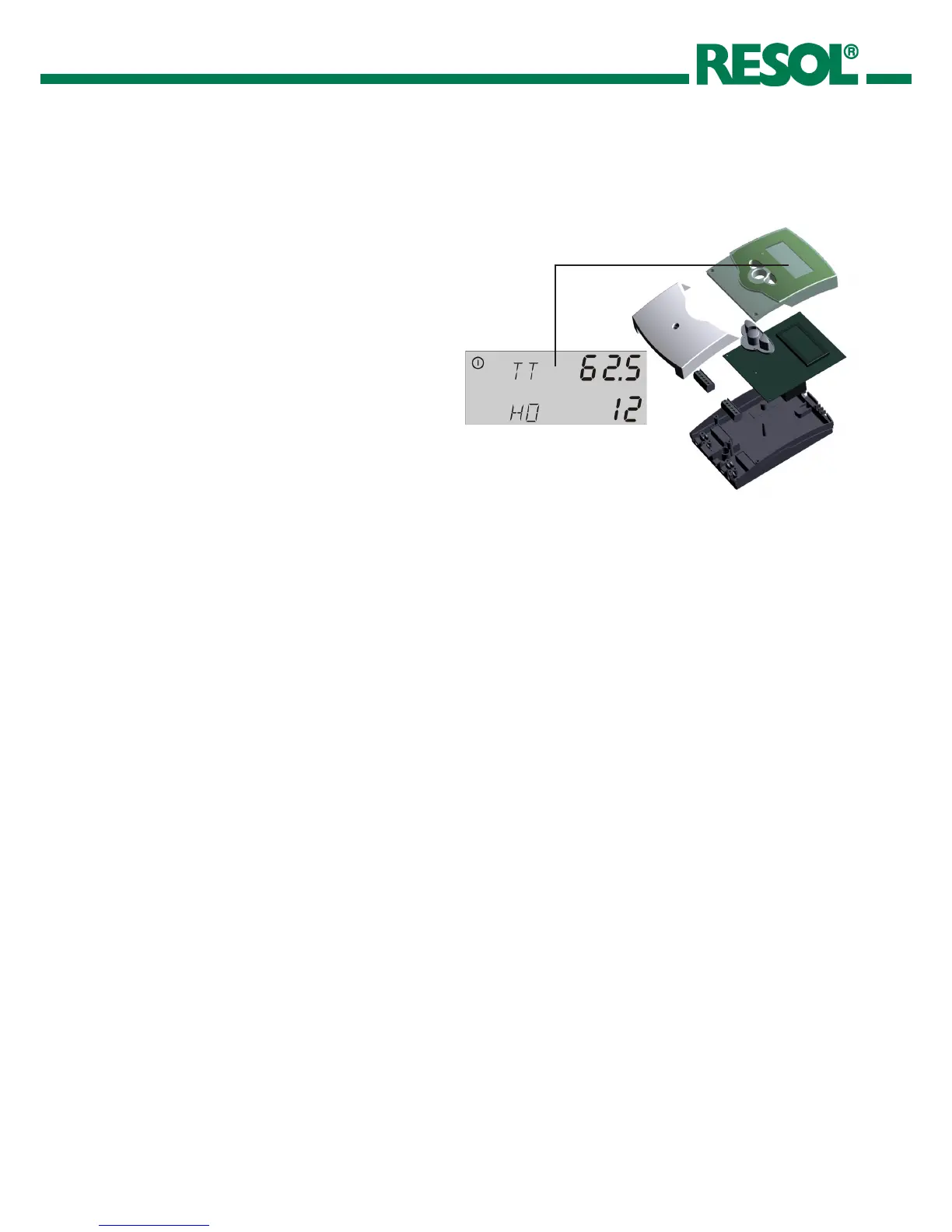

Page #3 background imageLoading...
Page #3 background image
TT1 Thermostat
© RESOL 06277 TT1.mon.en.indd
3 |
Operating mode
The RESOL thermostat compares the temperature
measured by the temperature sensor with the ad-
justed switch-on temperature . When the vurrent
temperature dropps below the the switch-on tem-
perature the relais is swirched ON. When the teperatu-
re is reached again the relais is switched OFF.
Depending on the adjusted switch-on and switch off tempera-
ture the controller is working in the heating or cooling mode.
Depending on the application area all PT1000 sensors from
our product catalogue can be used.
TT1
Electronic temperature controller (thermostat)with combi-
ned LCD display for indicating the current temperature and
the setting parameters (menue guided)
A temperature sensor (PT1000 for example FKP6) from
our catlalogue is needed.
Tecnical data
Housing: plastic, PC-ABS and PMMA
Protection type: IP 20 / DIN 40050
Size: 172 x 110 x 46 mm
Power supply:
220...240 V, 50 - 60 Hz
Output
1 relais output, breaking capaticity 4(1) A
Ambient temperature:
-20 °C ... +40 °C
Display: LCD, multi-functional com bined display
with pictograms two 2-digit text fields and two 4-
digit 7-segment displays as well as one 2-coloured
LED
Mounting: Wall mounting, panel-mounting pos-
sible
Operation: by three pushbuttons
Input: 1 temperature sensor Pt 1000
Output: 1 standard relais (changeover)
Degree of polution: 2
Rating surge voltage: 2,5 kV
Temp. for ball pressure check: 75 °C
