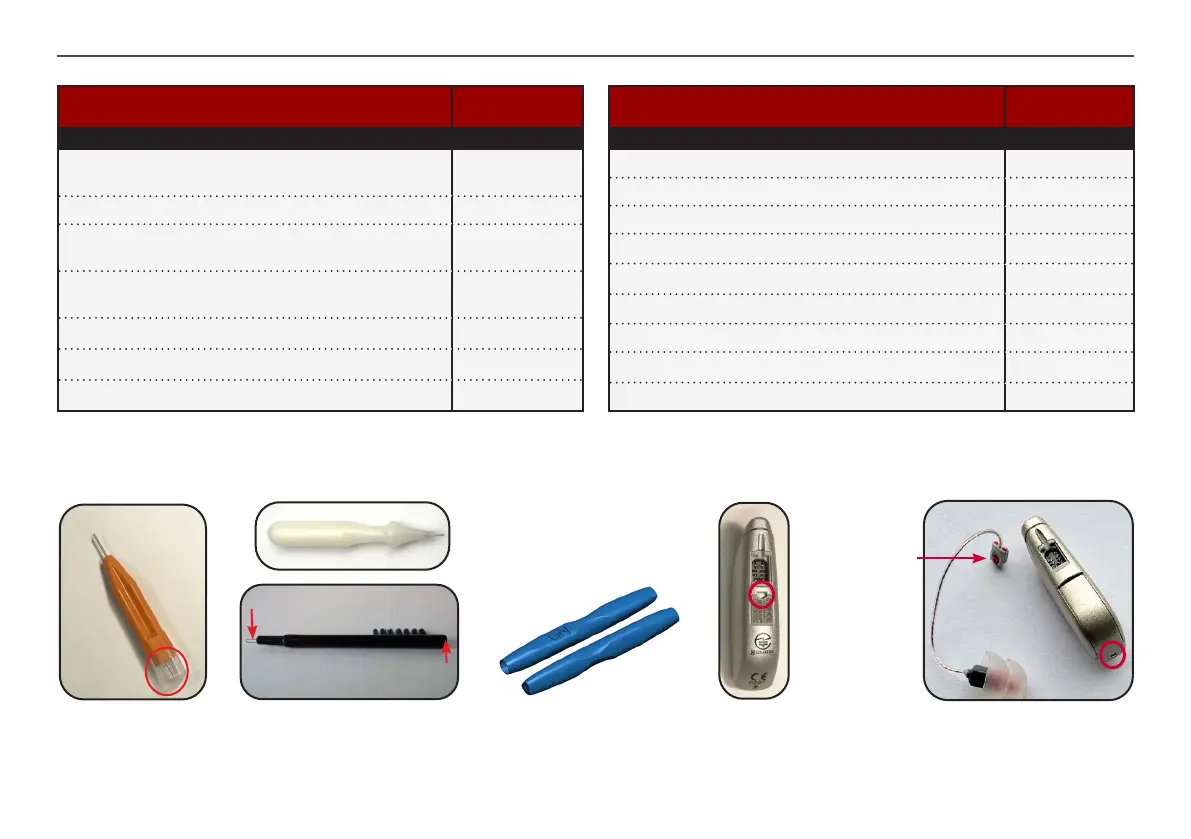

Doc 0371130 rev. F
Page 5 of 22
Not subject to issue control when printed
Description Part No
PIN,0.60X2.50
(module pin sound outlet end,61-DRW)
20810100
PIN,0.60X6.60 (module pin BAT DR end,62-DRW) 15344300
PIN,0.60X4.85,W/3GROOVES
(BAT DR pin,61-DRW)
20649700
PIN,0.60X5.45,W/3GROOVES
(BAT DR pin,62-DRW)
19069900
PIN,0.60X6.80 (TOP HSG pin,61-DRW) 16949100
PIN,0.60X7.25 (TOP HSG pin,62-DRW) 16059800
PIN,0.60X7.35 (TOP HSG pin,61-DRWC) 21370600
Cleaning brush, black
17435000
Magnet
Cleaning
loop
Part List
SERV PIN TOOL ASM,BLK
21161685
(orange proto type tool is shown)
Description Part No
CLEANING BRUSH, BLK 17435000
PIN REMOVAL TOOL. PACKED (white tool) 15502500
AUTOPHONE MAGNETS 17294600
KIT,COLOR MARKERS,CAMBR RIE 13/312 20809900
COLOUR MARKER,BERLIN,RED 13/312 18924900
COLOUR MARKER,BERLIN,BLU 13/312 18924901
KIT,COLOR MARKERS,CRHI 20992600
SERVICE PIN TOOL ASM,BLK (61-DRWC) 21161685
KIT,REC CHANGE TOOL,SF3 (tool & guide) 21944100
The pin for the TOP
HSG is attached un-
der the transp cap
PIN REMOVAL TOOL
15502500
Colour mrk location (red circle)
312 & 13
Colour mrk location
(red circle)
RHI
The rec has a red
or blue conn lock
which will also in-
dicate R or L side
on all models
REC CHANGE TOOL
(shown from both sides)
Packed in a plastic bag
together with a guide
To Next Page
