Revision 1.1 Page 6 of 21
Warning
Please Note
The specifications of the product detailed on this
Set-Up Guide may change without notice. RDM
Ltd. shall not be liable for errors or for incidental
or consequential damages, directly and indirectly,
in connection with the furnishing, performance or
misuse of this product or document.
Ensure that all power is
switched off before
installing or maintaining
this product

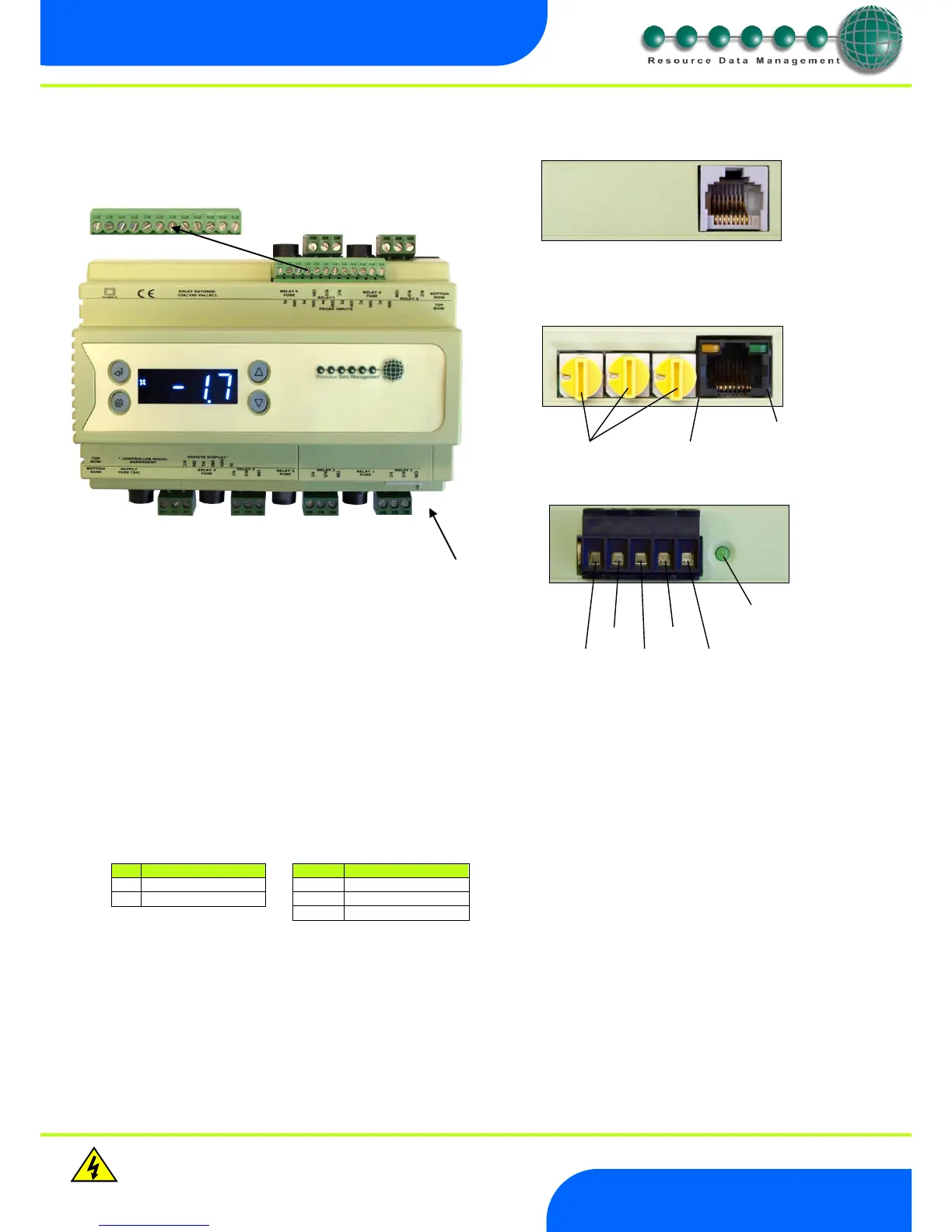

Mercury 2 & Intuitive Mobile Controller User Guide
Intuitive Mercury Controller Intuitive Mercury Network Expansion Options
Ordering Information
When ordering a Mercury Intuitive controller the following ordering scheme can be used to purchase the desired hardware configuration.
This ensures the controller ships with the optional hardware pre-fitted.
PR07X0-Y Where X and Y and are selections from the tables below.
* Fitted by default.
Example – To order a remote display variant, with a built in IP module use the following part number: -
PR0760-IP
The Intuitive Mercury is supplied with an RS232
Network Card fitted as standard. Some example
optional network cards are shown below
RS232 Network Card (Default)
RS485 Network Card (PR0771)
PR0772 Wireless Mesh Option also available. The network
interfaces work in the same way as there external counterparts.
All inputs and outputs are plug and socket. The supply voltage
and relay outputs have individual fuse protection.
Compressor A Out
Not Used
Common
Lights /Alarm Out
Not Used
Common
Common
Defrost Out
Not Used
Common
Compressor B Out
Not Used
Mains Supply
100-240vAC
50-60Hz
Logging Probe
Common
Defrost Probe
Common
Comp B Disch.
Common
Comp A Disch.
Common
Air Off Probe
Common
Air On Probe
Common
To Next Page
