Retrax Powertrax - Install Front Cover and Clamps

Retrax • 917 S. 46th St., Grand Forks, ND 58201 • 800-206-4070 © Retrax is Retrax Holdings, LLC, 2023
4000-175 IR-RTP-01 Rev. 10.17.23
9 10

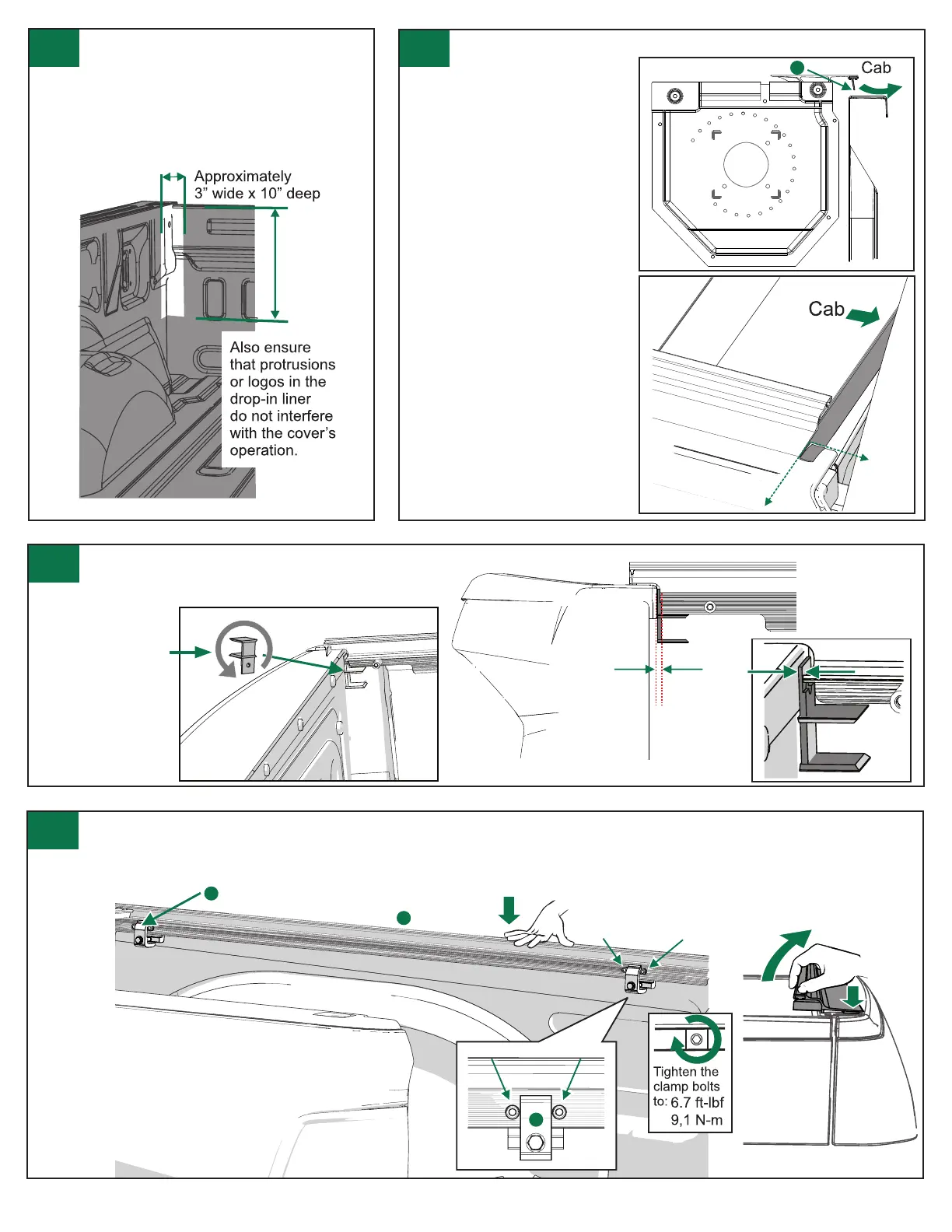

Prepare the bed for cover installation:
NOTE: Prior to installing the cover, some
drop-in style bed liners may need to be notched
in the front/cab end corners to provide clearance
for the cover canister.
11
Position the cover:
With two people, lift the
cover and place it onto the truck
bed starting by placing the
canister (M) portion near the
bulkhead. The front seal of the
cover should lay forward and
lay at.
NOTE: With the cover in place,
the front seal lays at on the
bulkhead, but must not extend
past the bed rail cap. Trim the
seal as needed to ensure that it
lays at.
Position the rails: Move the cover back toward the
tailgate and use the shipping bracket as a spacer to
position both rails to be 1/8” from the tailgate.
Shipping Bracket
1/8”
12
Install the front and rear clamps:
Position the clamps (P) between the adjustment screws. Using a 9/16” or 1/2” wrench (depending on your clamps), tighten
the clamps (P). It is important to push down on the rail (K & L) while tightening, AND to tilt the rail up approximately two degrees
simultaneously. Both the pushing down and tilting of the rail will position the rail best to minimize water intrusion.
To install the front and rear clamps on
the XR Rails go to step 13.
Adjustment Screws
G
M
L
P
