Operation

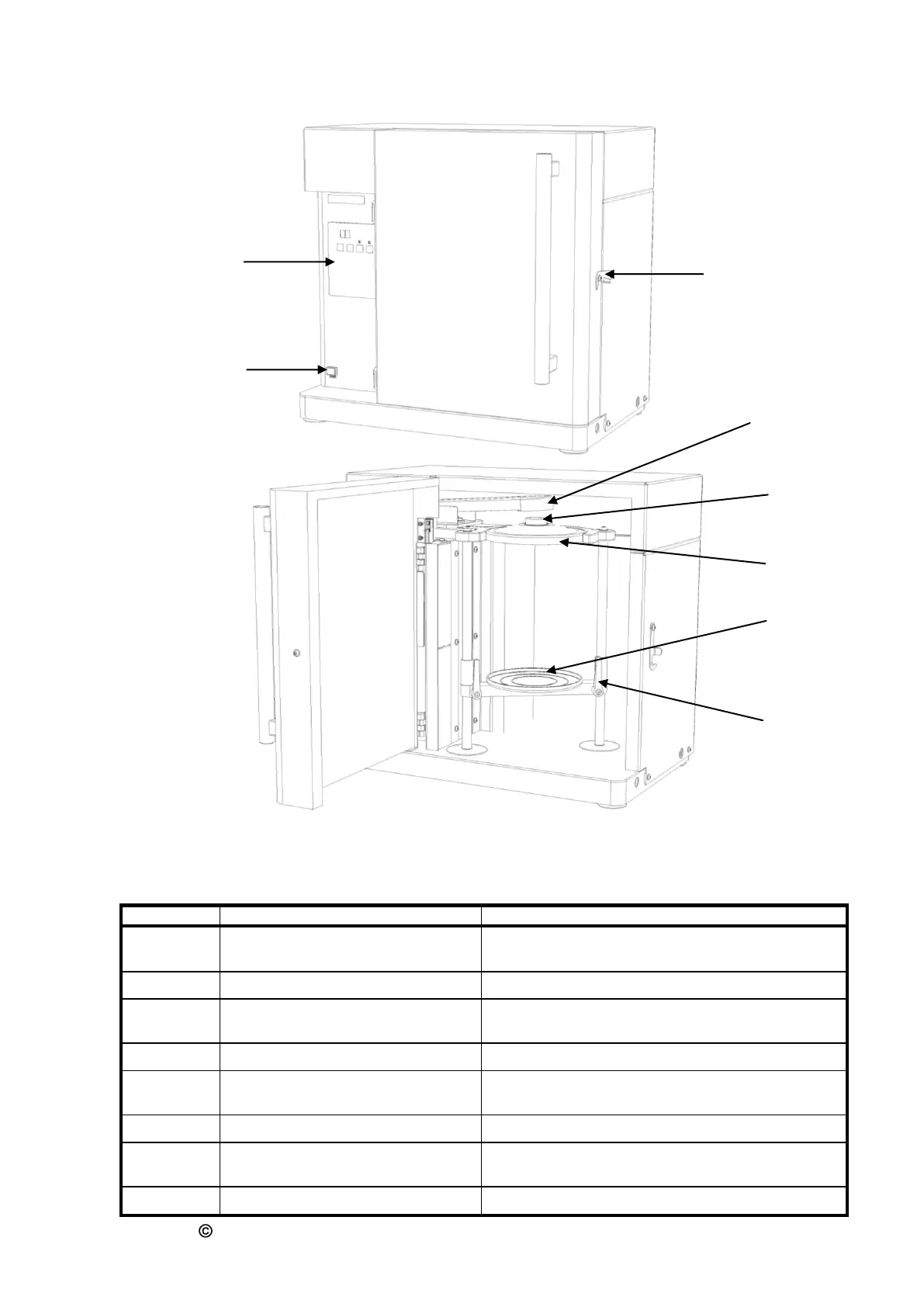

Operating elements and operation
Operating elements and their functions
Overview table
Element
Description
Function
A
Tapping arm
Transmits tapping pulses to the material being
sieved.
B
Lock hook
Locks the noise insulating hood
C
Clamping lever
Allows adjustment to the different sieve stack
heights.
D
Sieve plate
Holds the sieve stack
E
Sieve lid
Centres the sieve stack and holds the cork
stopper.
F
Cork stopper
Transmits the tapping pulses to the sieve lid.
G
Display and operating unit:
See below for explanations.
Time preselection and starting/stopping the
machine
M
START press button
No function
A
B
F
E
D
C
G
M
