Retsch AS200 tap - Operating Elements and Their Functions

8 January 2008 Retsch GmbH 12 Doc. no. D 98.025.9999

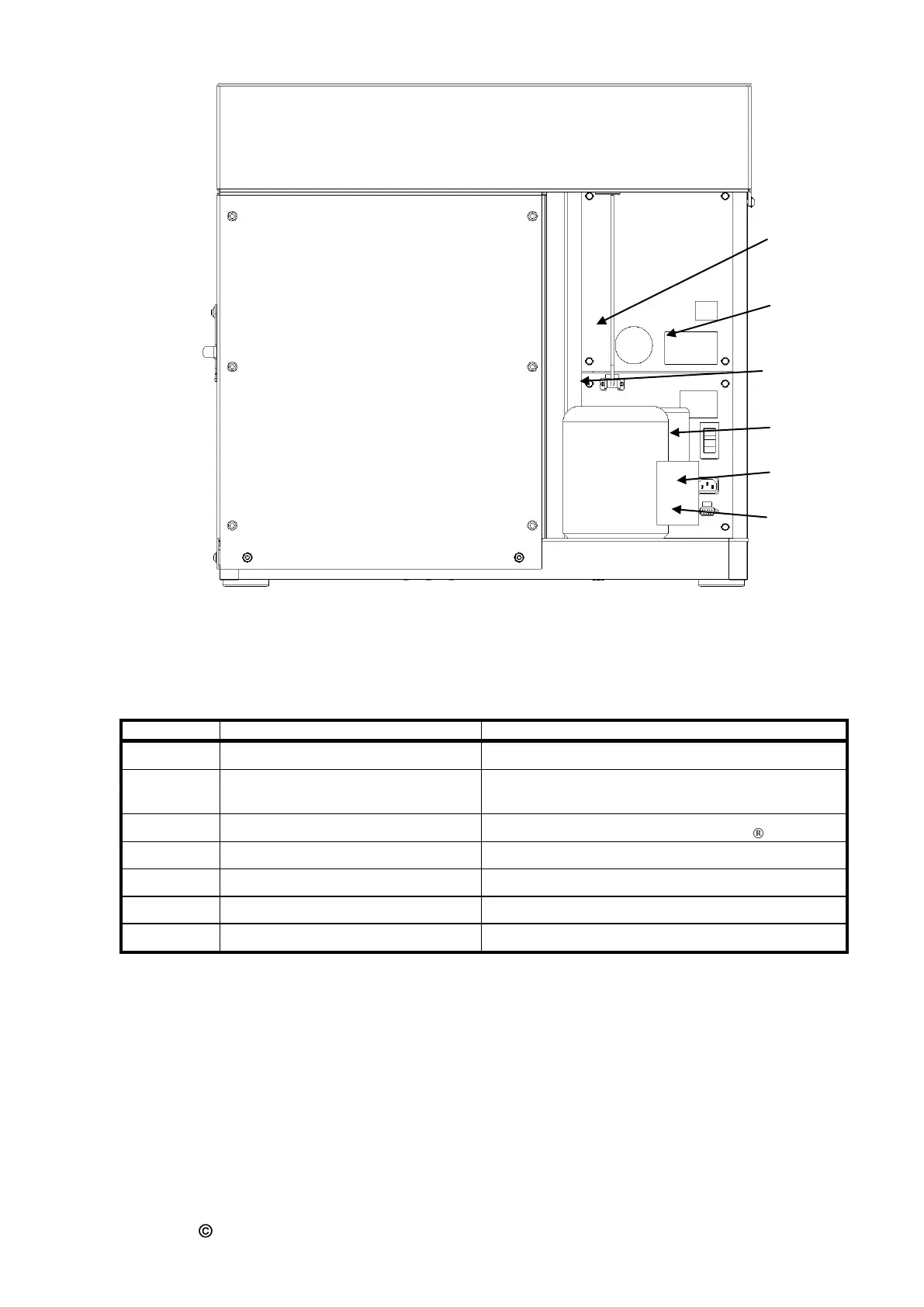

Rear view
Operating elements and their functions
Overview table
Element
Description
Function
H
Device socket
Connection for the device’s power cable
I
ON / OFF switch
For turning the AS 200 tap on and off and serves
as a motor protection switch.
J
RS232 interface
Allows communication with EasySieve
K
Type plate
Information on the device and connected loads
L
BDA information plate
Refers to the operating instructions.
P
Safety switch socket
Activates the door monitoring
I
H
J
K
L
P
