HRV and ERV Typical Installations (cont’d)
8

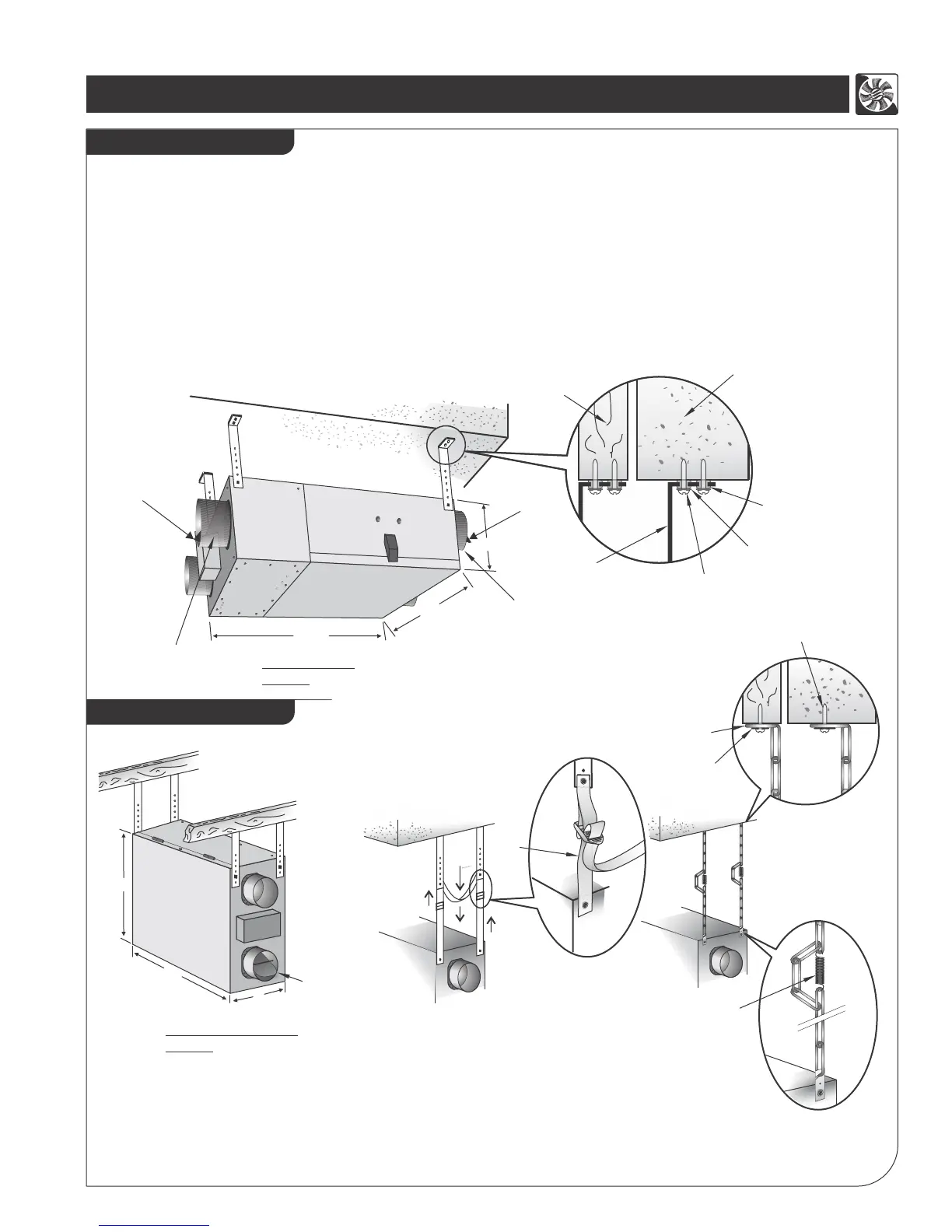

HORIZONTAL
• 30” clearance is recommended for cleaning of the core/servicing the unit.
• Dampers are installed for horizontal installation. For vertical installation both dampers have
to be turned so they can open properly and close when there is any backdraft.
• Make sure no screw will interfere the function of the backdraft damper flaps while
installing the duct work to the HRV/ERV.
STRAPPING SYSTEM: (optional)
Allows one person installation for
vertical and horizontal installation.
VERTICAL
Note:
After installation make sure the HRV/ERV is properly leveled. If not levelled correctly,
then defrost will not perform effectively and/or unit may frost in winter.
Note:
UP
UP
PULL
DOWN
Strap
jtantay 01.28.1
1
*NOT SUPPLIED
jtantay 12.23.1
1
Vibration
Spring
Washer*
Screw*
CHAIN MOUNTING
SYSTEM: (optional)
Available for both
horizontal & vertical
installation.
Chain*
Backdraft
Damper
Concrete
Concrete
Wooden Joist
Bracket
(Supplied)
Grommet*
Washer*
Backdraft Damper
Superior Unit
Shown
Screw*
Flap
Flap
Backdraft Damper
27 "
3
4
/
21"
9"
20"
9"
Project Condo Unit
Shown
21"
To Next Page
