Reversomatic RERV-S200 - Parts List

9362
9389
1
1
1
1
1
1
20
23
*
Built-in spring return damper
120V Motorized spring return damper

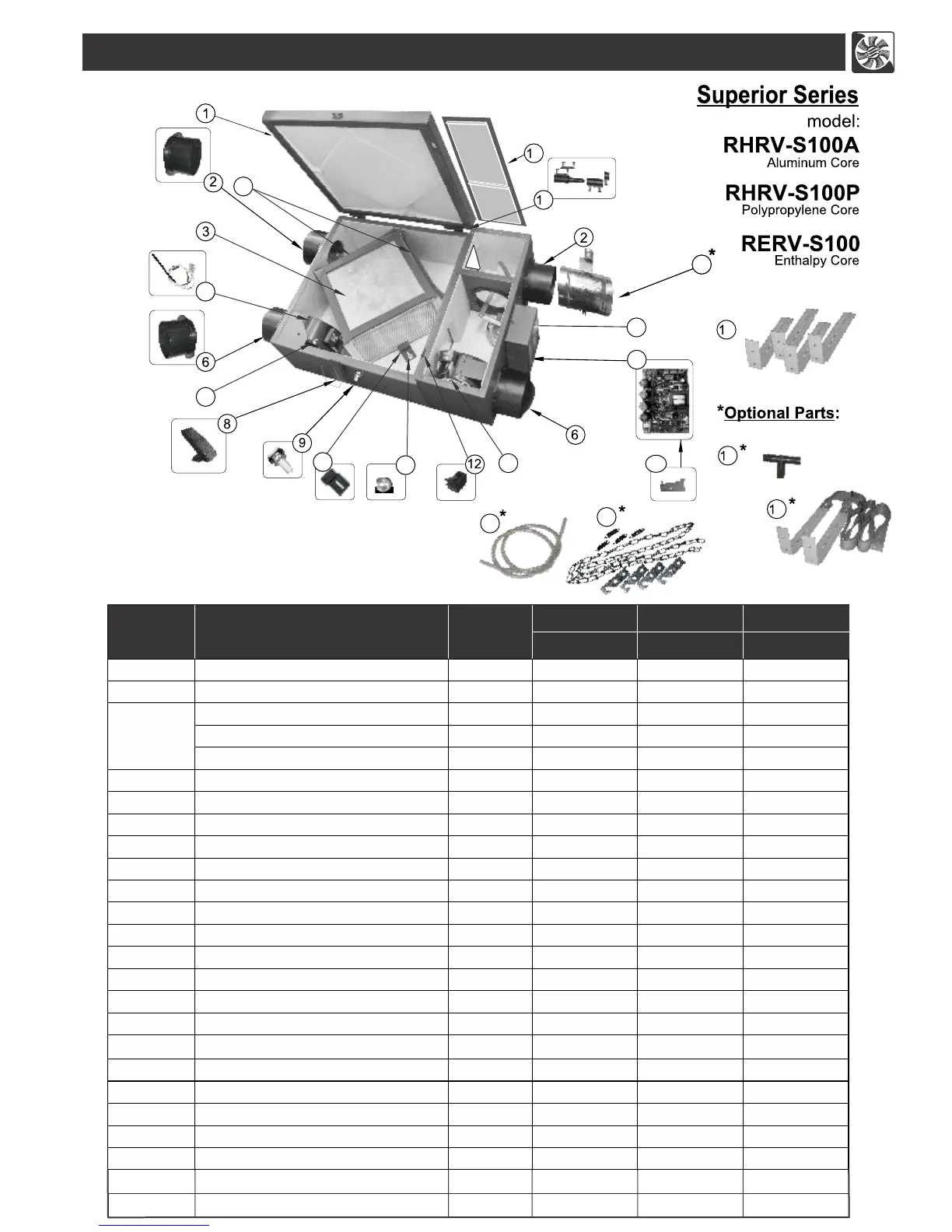

Parts List
1
Reference Description
Part no.
RHRV-S100A
RHRV-S100P
RERV-S100
QTY. QTY. QTY.
1
HRV / ERV - Lid, Pan Assembly 9315
1 1 1
2
Polypropylene Collar 5” Dia. 014043C 2
2 2
3
Aluminum Core 9312 1 n/a n/a
Polypropylene Core
9313
n/a 1
n/a
Enthalpy Core
9314
n/a
n/a
1
Filter 7" x 12" (MERV - 4)
9358
2
2 2
4
Temperature Sensor
9326 1
1 1
5
5”ø Polypropylene Backdraft Damper
014043
2
2 2
6
Blower - Exhaust / Supply 9317
2
2 2
7
Adjustable Door Latch 9319
1 1
1
8
Drain Spout Assembly 9320
1
1 1
9
Core Locking Bracket 9321 1
1 1
10
Nut 014016 1 1
1
11
Safety Switch 9322 1
1 1
12
Main Control Board - Superior & Project 9356 1
1 1
Main Control Board Bracket
9355
2
2 2
13
Door Hinges
9328 1 Set 1 Set 1Set
14
Extension Box Cover
9329 1
1 1
15
Mounting Brackets
011135
4 4 4
16
“ T ” Connector
9330
1
1
1
17
Webbing/Brackets/Ladder Locks 9332 2 Sets 2 Sets 2 Sets
18*
Chains/Springs/Brackets
9354 1 Set 1 Set 1 Set
19*
Drain Pipe 9331 1 1 1
20*
21*
22
22*
23*
