Monitor – Microphone Gain:*
Each microphone has an individual gain fader. This fader provides +/- 10dB of gain in 5dB
increments. The microphone gains are stored in the Base Station and will be applied to any
microphone paired to that channel.
Monitor - Microphone Status:*
This provides the current status for the microphone paired to each channel. The status can read any
of the following states:
Monitor - Microphone Type:
This provides the current type for the microphone that is paired to each channel.
Monitor - Microphone Version:
This provides the current firmware version for the microphone that is paired to each channel.
Note: The microphone version must match the Base version for the system to function properly.
Monitor - Microphone Battery:
This provides the current battery level for the microphone that is paired to each channel and active.
The value changes in 12.6% increments and represents the bottom of the range the battery is in.
Therefore a value of 87% means that the battery level is between 87%-100%.
Monitor – Base Version:
This window provides the current firmware versions found in the Base Station.
Monitor – Status Log:
This window provides any activity status between the HD Control Panel and either the Base Station,
or the Charger Base during the ‗Update Firmware‘ and ‗Express Pair‘ functions.
Using the Serial Control Processor (RS-232 or IP)
The Serial Control Processor allows the use of a third party control system or DSP to monitor and/or
control the Executive HD Base Station and Microphones. The Executive HD Base Station must be
configured for the correct ―Serial Control Processor‖ using the Revolabs HD Control Panel software.

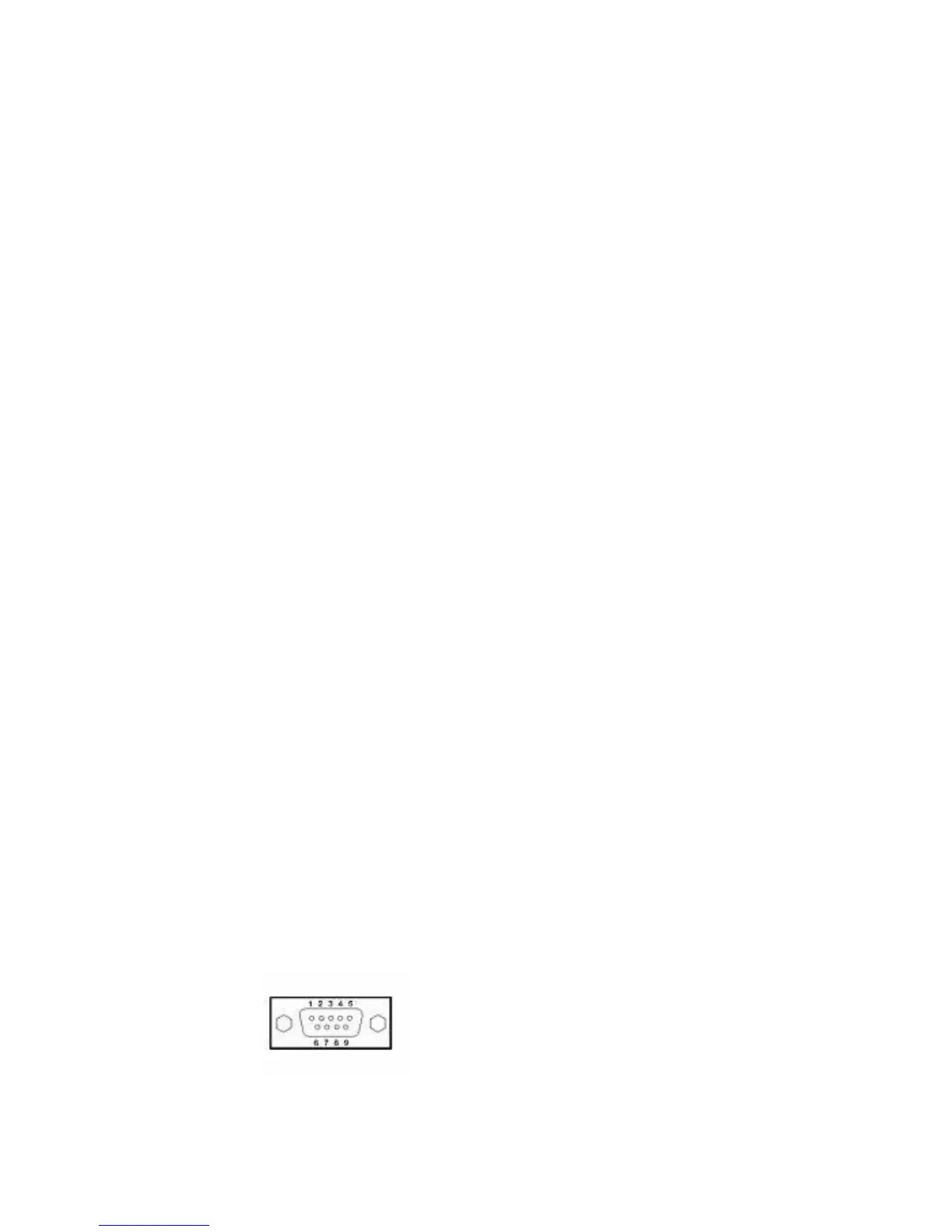

DB9 Pin-out:
Pin 2 = Rx
Pin 3 = Tx
Pin 5 = GND
Pin 7 = RTS
Pin 8 = CTS
Microphone is has been turned off
Microphone is on and operational
Microphone is in the Charging Base
Microphone is out of range and cannot communicate
