UJPEMKi KEl/OX
• .
B226

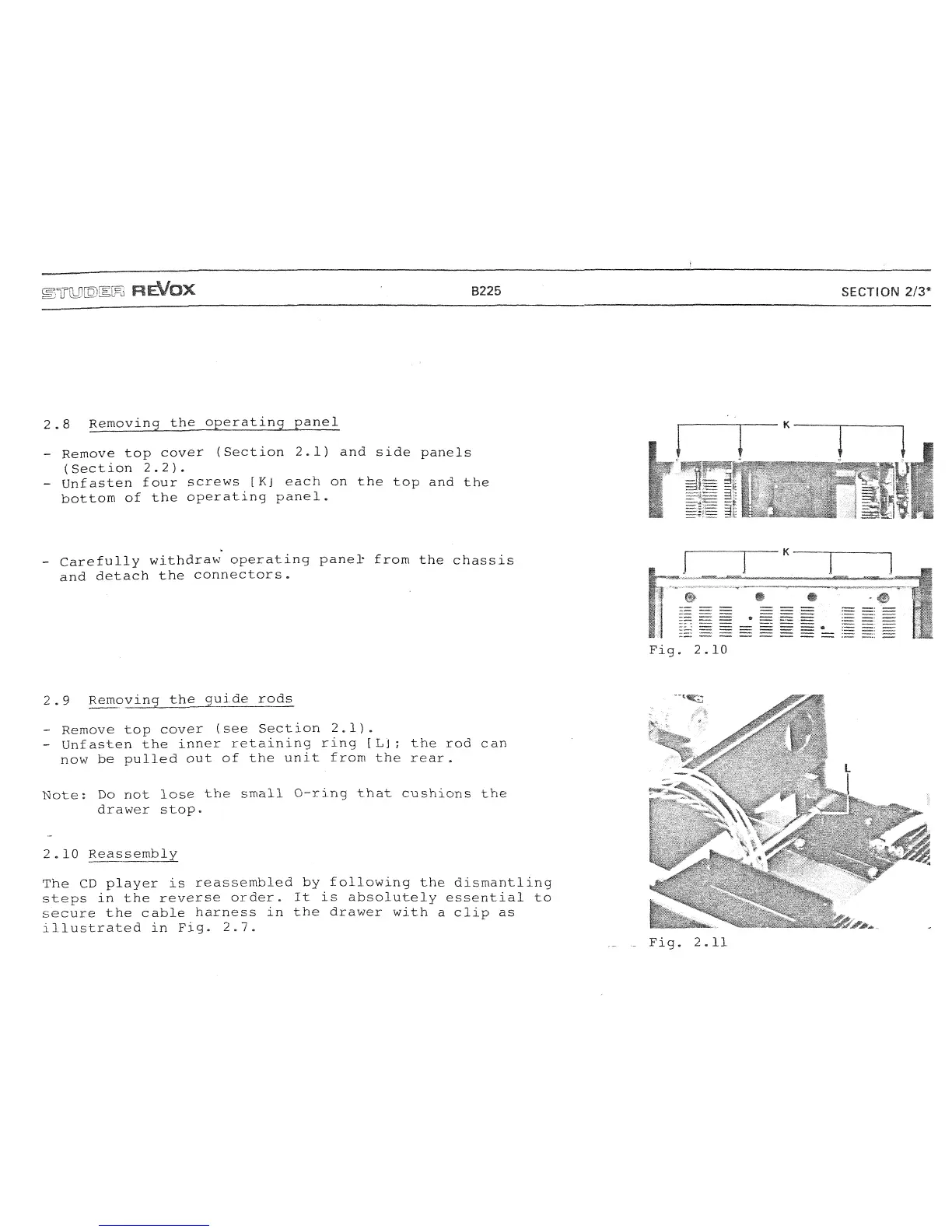

2.8 Removing the operating panel
- Remove top cover (Section 2.1) and side panels
(Section 2.2).
- Unfasten four screws [Kj each on the top and the
bottom of the operating panel.
Carefully withdraw operating panel' from the chassis
and detach the connectors.
2
-
9
Removing the guide rods
- Remove top cover (see Section 2.1).
- Unfasten the inner retaining ring [Lj; the rod can
now be pulled out of the unit from the rear.
Note:
Do not lose the small O-ring that cushions the
drawer stop-
2.10 Reassembly
The CD player is reassembled by following the dismantling
steps in the reverse order. It is absolutely essential to
secure the cable harness in the drawer with a clip as
illustrated in Fig. 2.7.
