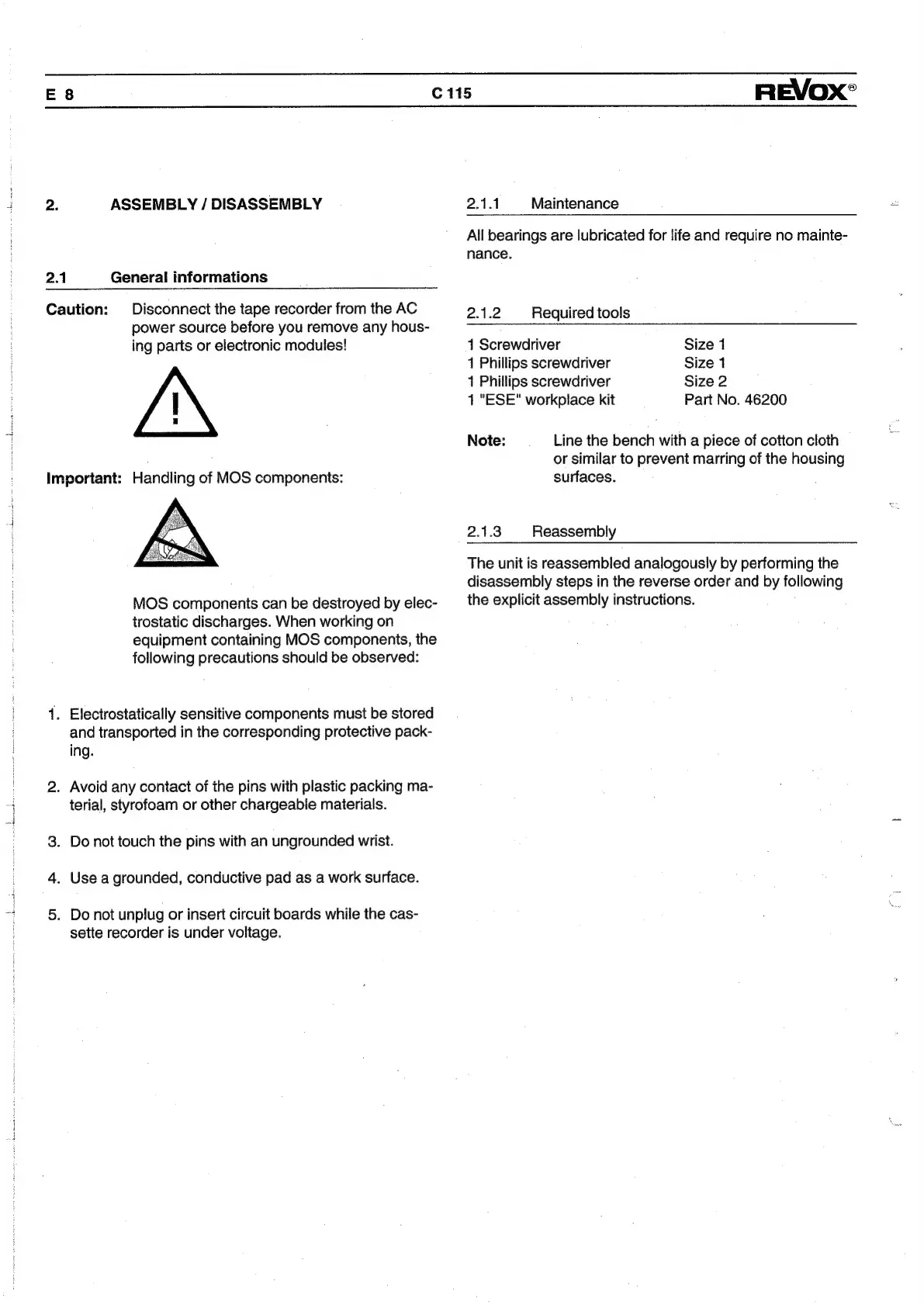

2. ASSEMBLY / DISASSEMBLY
2.1 General informations
Caution: Disconnect the tape recorder from the AC
power source before you remove any hous-
ing parts or electronic modules!
Important: Handling of MOS components:
MOS components can be destroyed by elec-
trostatic discharges. When working on
equipment containing MOS components, the
following precautions should be observed:
1. Electrostatically sensitive components must be stored
and transported in the corresponding protective pack-
ing.
2. Avoid any contact of the pins with plastic packing ma-
terial, styrofoam or other chargeable maierials.
3. Do not touch the pins with an ungrounded wrist.
4. Use a grounded, conductive pad as a work surface.
5. Do not unplug or insert circuit boards while the cas-
sette recorder is under voltage.
REVOXx®
2.1.1 Maintenance
All bearings are lubricated for life and require no mainte-
nance.
2.1.2 Required tools
1 Screwdriver Size 1
1 Phillips screwdriver Size 1
1 Phillips screwdriver Size 2
1 "ESE" workplace kit Part No. 46200
Line the bench with a piece of cotton cloth
Note:
or similar to prevent marring of the housing
surfaces.
2.1.3 Reassembly
The unit is reassembled analogously by performing the
disassembly steps in the reverse order and by following
the explicit assembly instructions.
