REVOX®
C115

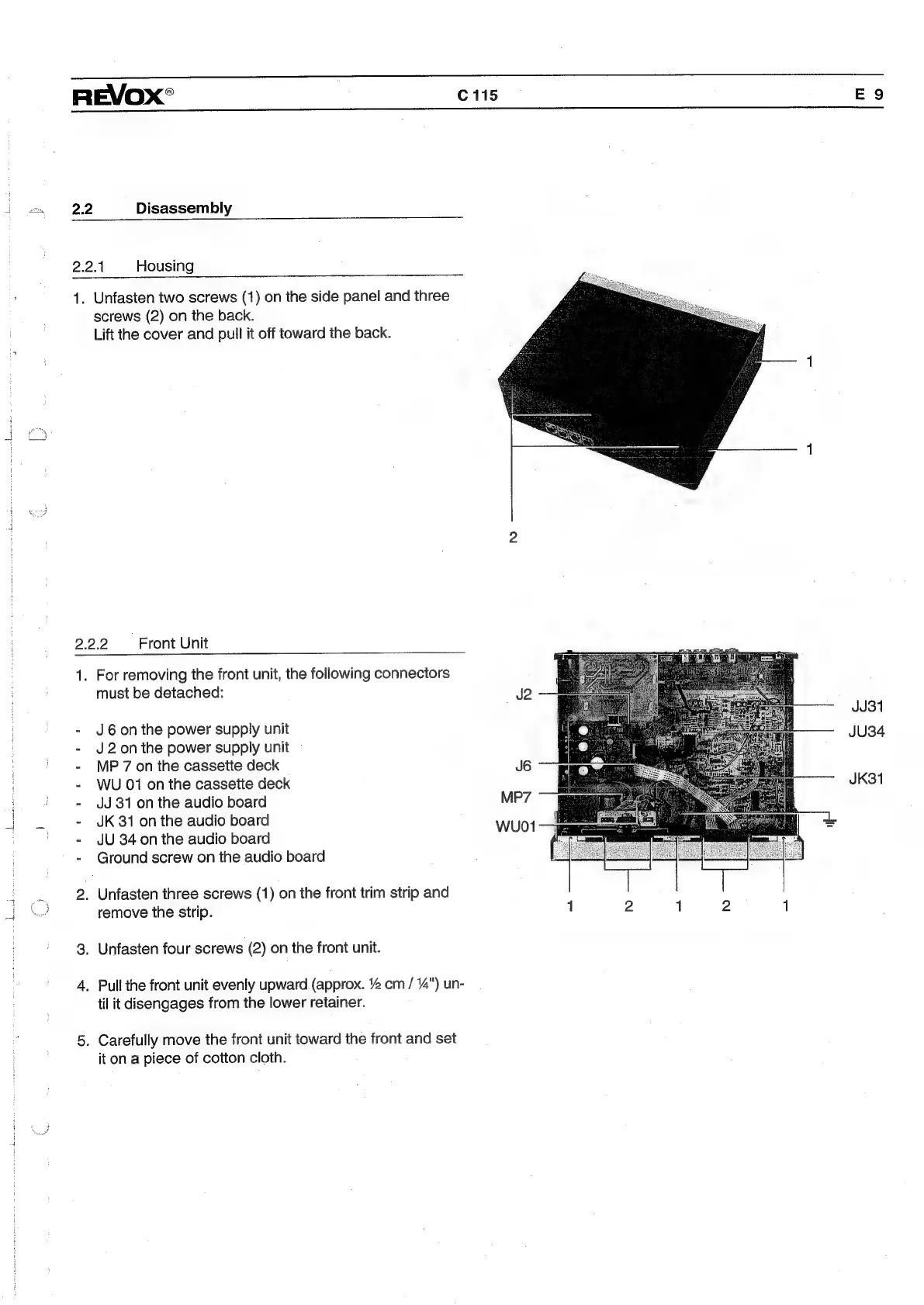

2.2
Disassembly
2.2.1
Housing
1.
Unfasten
two
screws
(1)
on
the
side
panel
and
three
screws
(2)
on
the
back.
Lift
the
cover
and
pull
it
off
toward
the
back.
2.2.2
Front
Unit
1.
For
removing
the
front
unit,
the
following
connectors
must
be
detached:
J6
on
the
power
supply
unit
J
2
on
the
power
supply
unit
—
MP
7
on
the
cassette
deck
WU
01
on
the
cassette
deck
JJ
31
on
the
audio
board
JK
31
on
the
audio board
JU
34
on
the
audio
board
Ground
screw
on
the
audio
board
.
Unfasten
three
screws
(1)
on
the
front
trim
strip
and
remove
the
strip.
.
Unfasten
four
screws
(2)
on
the
front
unit.
.
Pull
the
front
unit
evenly
upward
(approx.
¥2
cm
/
1%")
un-
til
it
disengages
from
the
lower
retainer.
.
Carefully
move
the
front
unit
toward
the
front
and
set
it
on
a
piece
of
cotton
cloth.
J2
J6
MP7
WUO01
