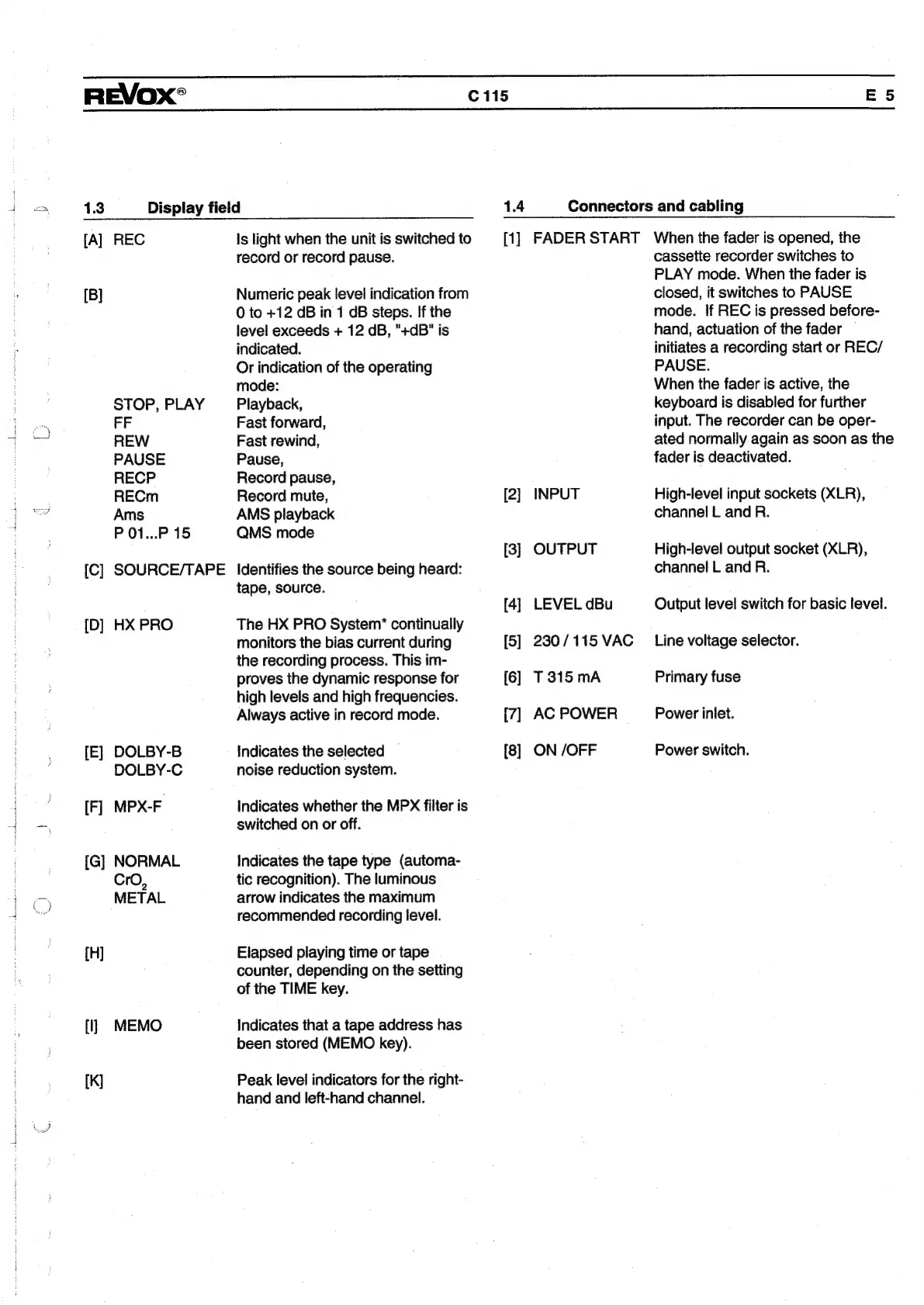

1.3
[Al
[K]
C115
Display field 1.4
REC Is light when the unit is switched to [1] FADER START
record or record pause.
Numeric peak level indication from
0 to +12 dB in 1 dB steps. If the
level exceeds + 12 dB, "+dB" is
indicated.
Or indication of the operating
mode:
STOP, PLAY Playback,
FF Fast forward,
REW Fast rewind,
PAUSE Pause,
RECP Record pause,
RECm Record mute, [2] INPUT
Ams AMS playback
P01...P 15 QMS mode
[3] OUTPUT
SOURCE/TAPE Identifies the source being heard:
tape, source.
[4] LEVEL dBu
HX PRO The HX PRO System’ continually
monitors the bias current during [5] 230/115 VAC
the recording process. This im-
proves the dynamic response for (6) T315mA
high levels and high frequencies.
Always active in record mode. [7] AC POWER
DOLBY-B Indicates the selected [8] ON /OFF
DOLBY-C noise reduction system.
MPX-F Indicates whether the MPX filter is
switched on or off.
NORMAL Indicates the tape type (automa-
CrO, tic recognition). The luminous
METAL arrow indicates the maximum
recommended recording level.
Elapsed playing time or tape
counter, depending on the setting
of the TIME key.
MEMO Indicates that a tape address has
been stored (MEMO key).
Peak level indicators for the right-
hand and left-hand channel.
Connectors and cabling
When the fader is opened, the
cassette recorder switches to
PLAY mode. When the fader is
closed, it switches to PAUSE
mode. If REC is pressed before-
hand, actuation of the fader
initiates a recording start or REC/
PAUSE.
When the fader is active, the
keyboard is disabled for further
input. The recorder can be oper-
ated normally again as soon as the
fader is deactivated.
High-level input sockets (XLR),
channel L and R.
High-level output socket (XLR),
channel L and R.
Output level switch for basic level.
Line voltage selector.
Primary fuse
Power inlet.
Power switch.
