ILLUSTRATED PARTS MANUAL:
FLOWLINE COMB & WIRE
BINDER RANGE

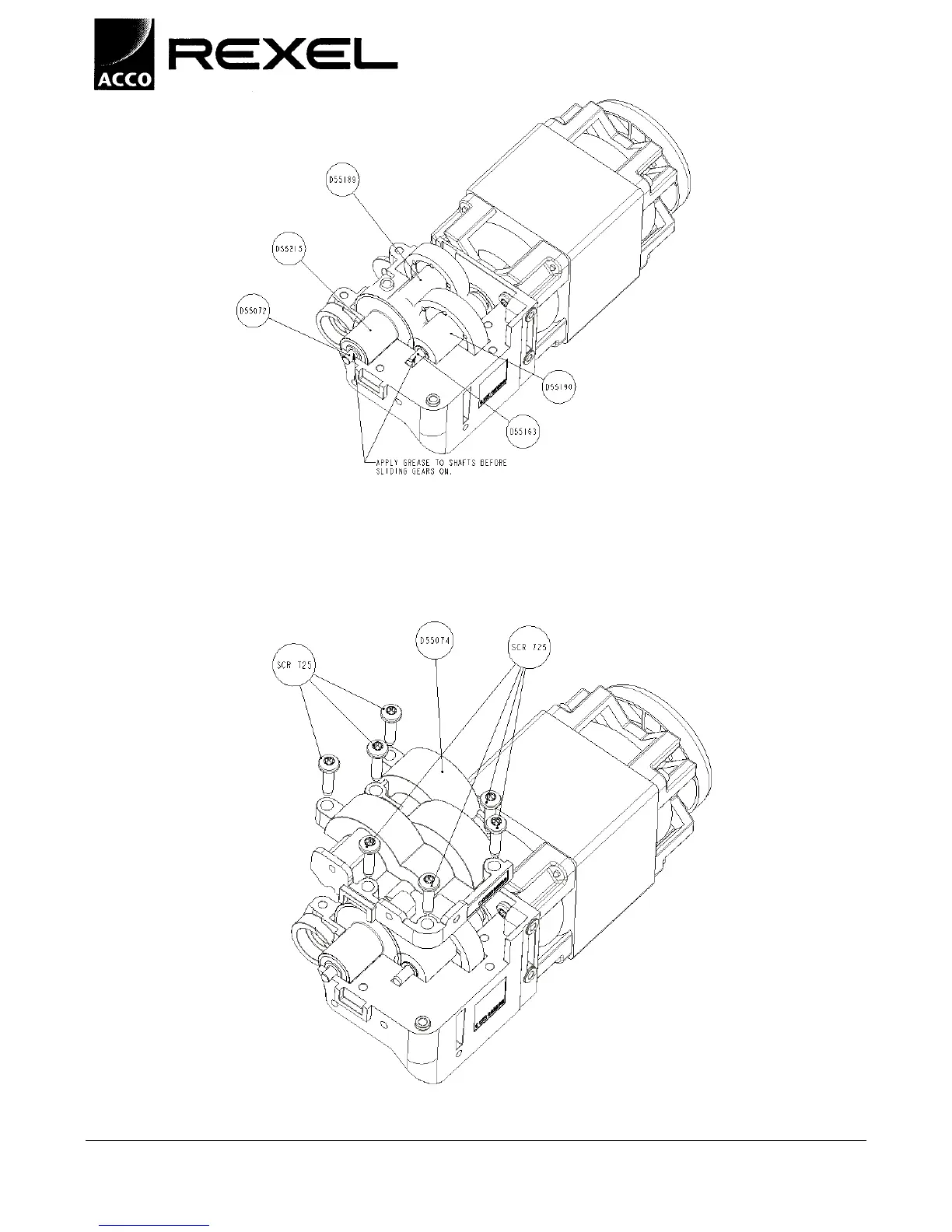

STEP 3: FLIP ASSEMBLY OVER APPLY WHITE GREASE TO THE SHAFTS BEFORE SLIDING GEARS
ON. PUT GEARS D55189 AND D55215 ON TO THE LONG SHAFT (D55072) AND PUT INTO GEARBOX
CASING ASSEMBLY. ENSURE THE SHAFT IS PUSHED UP AGAINST THE MOTOR END OF THE
GEARBOX. APPLY GREASE TO SHORT GEAR SHAFT, PUT GEAR D55240 (SEE ISSUE 12) ONTO THE
SHORT GEAR SHAFT (D55163) AND PUT INTO GEARBOX ASSEMBLY. APPLY WHITE GREASE TO
ALL GEARS WHILST ROTATING THE MOTOR FAN.
STEP 4: PUSH THE GEARBOX BOTTOM CASING (D55074) ONTO THE GEARBOX ASSEMBLY AND FIX
USING 7 OFF M5x20 SCREWS
