ILLUSTRATED PARTS MANUAL:
FLOWLINE COMB & WIRE
BINDER RANGE

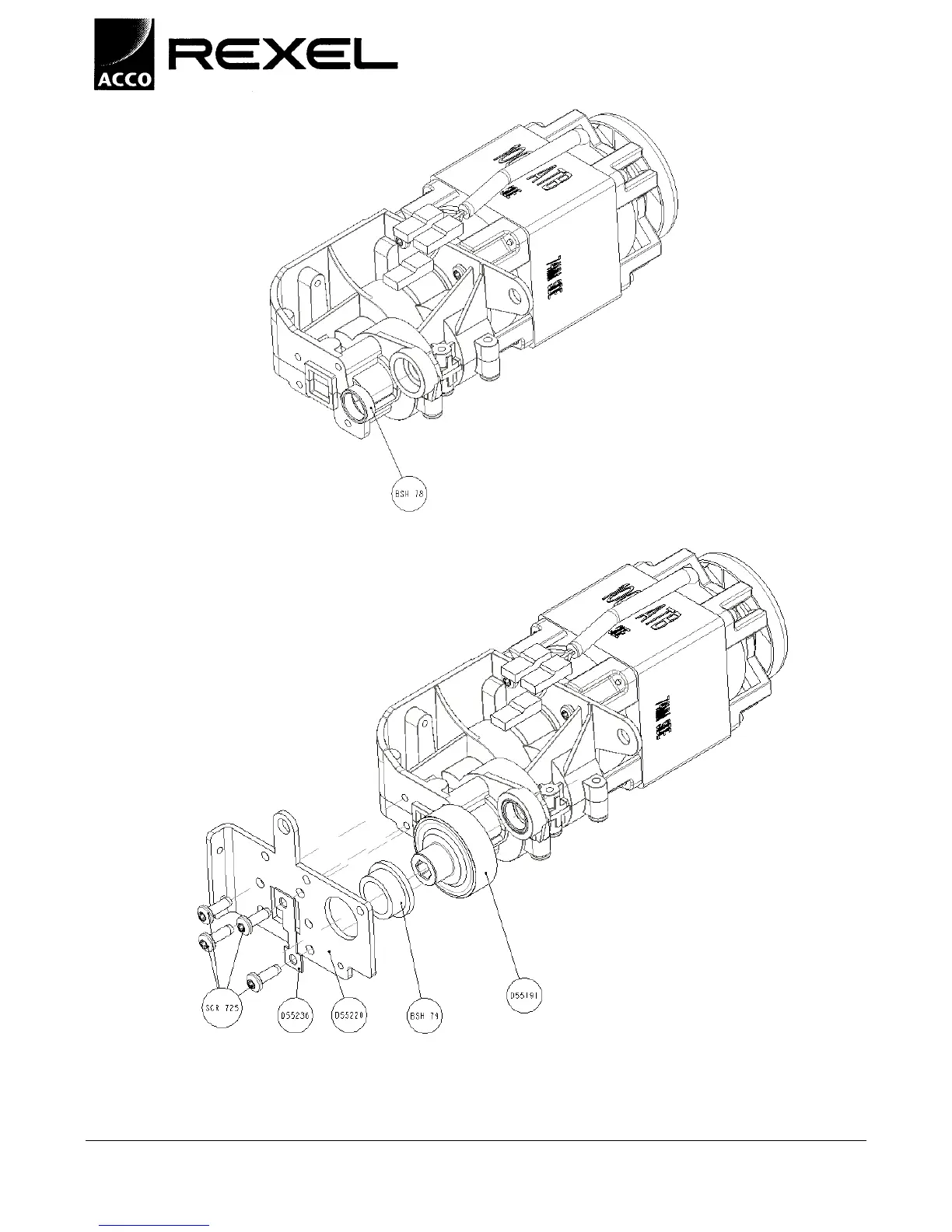

STEP 5: FLIP ASSEMBLY OVER AND PRESS BSH 78 INTO THE RECESS IN THE GEARBOX TOP COVER
STEP 6: PRESS BSH79 INTO GEARBOX END PLATE D55220. PUSH GEAR D55191 INTO BSH78 ON THE
GEARBOX ASSEMBLY. PUSH THE END PLATE ONTO THE GEARBOX ASSEMBLY SO THAT IT
LOCATES ON GEAR D55191 AND THE SQUARE FORM ON THE GEARBOX CASINGS. ENSURE THAT
THE END OF THE GEAR SHAFT LOCATES IN HOLE AND PUSH PLATE AGAINST GEAR- BOX FACE.
