ILLUSTRATED PARTS MANUAL:
FLOWLINE COMB & WIRE
BINDER RANGE

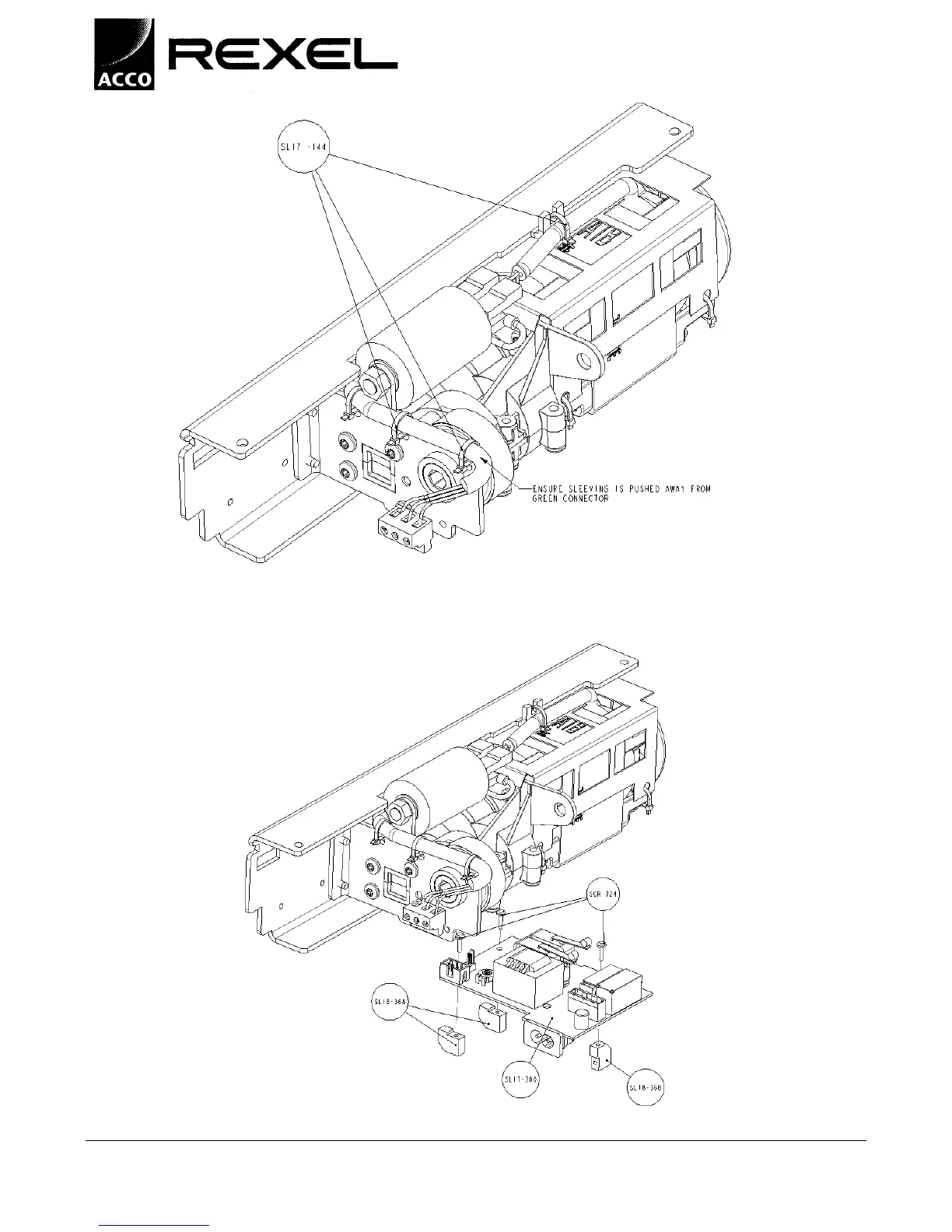

STEP 11 – (230V MOTOR): CABLE TIE THE WIRING LOOM (D55226) SECURELY TO THE GEARBOX
END PLATE USING 2 CABLE TIES. TIE THE MOTOR WIRE TO THE SUPPORT BRACKET USING
CABLE TIE. TIGHTEN ALL CABLE TIES AND SNIP TO LENGTH
