ILLUSTRATED PARTS MANUAL:
FLOWLINE COMB & WIRE
BINDER RANGE

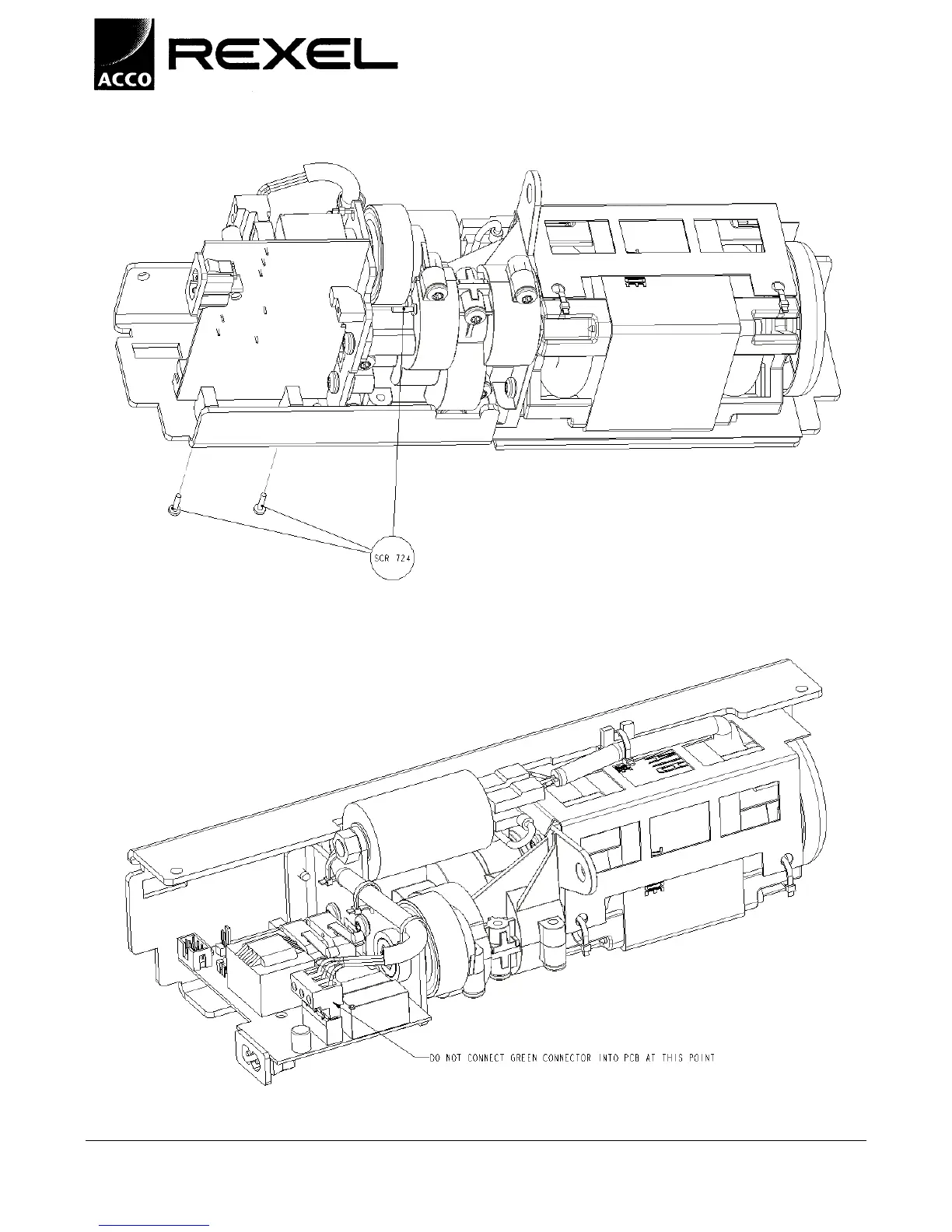

STEP 12: FASTEN 3 OFF PCB MOUNTING BLOCKS, IN THE ORIENTATION SHOWN, TO THE MAIN
PCB (SL17-300 OR SL17-314 SEE ISSUE 14 FOR SERIAL NO/MODEL) USING 3 OFF M3x8 SCREWS.
STEP 13: FASTEN THE MAIN PCB TO THE MOTOR SUPPORT BRACKET AND GEAR BOX END PLATE
USING 3 OFF M3x8 SCREWS
FINISHED GEAR BOX ASSEMBLY A55222 (230V)
