ILLUSTRATED PARTS MANUAL:
FLOWLINE COMB & WIRE
BINDER RANGE

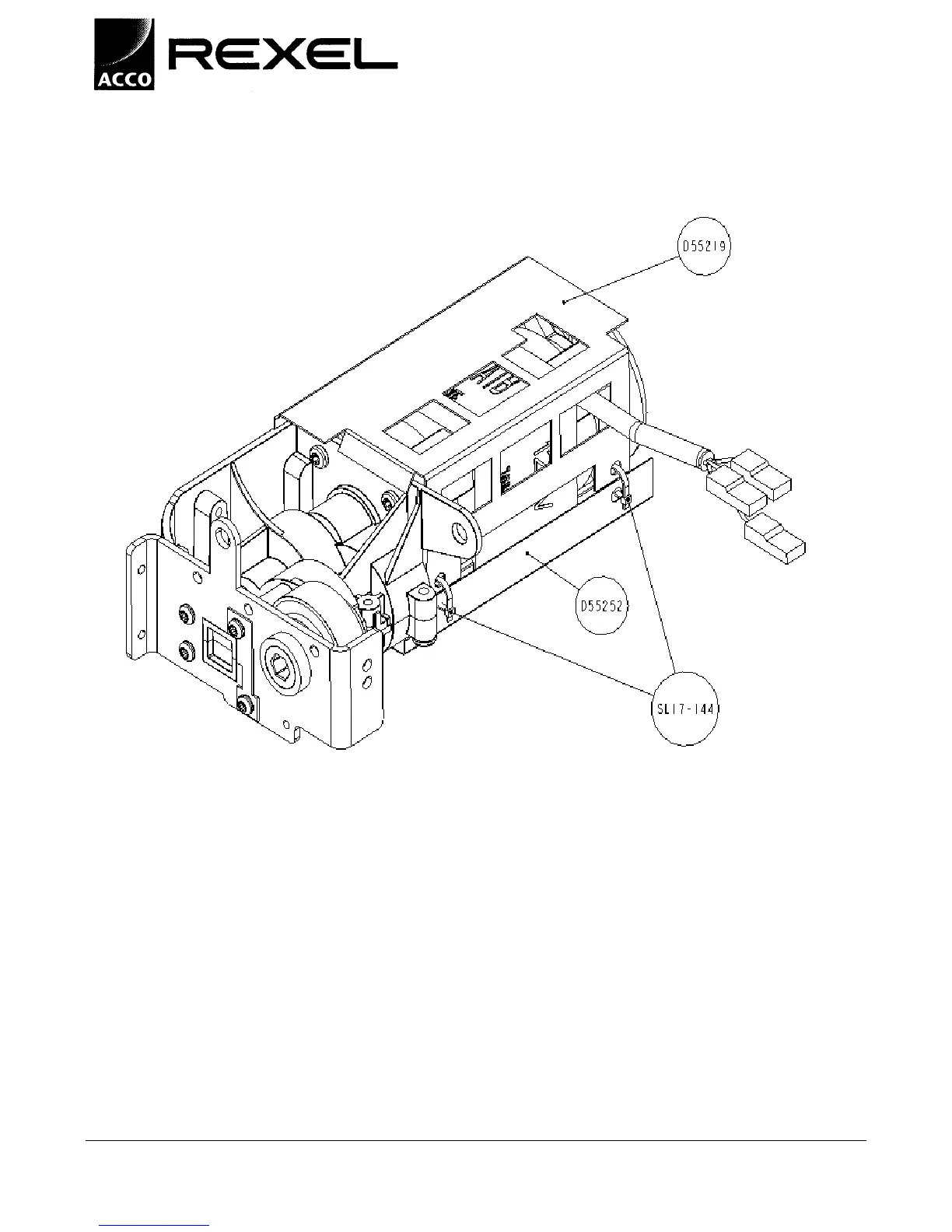

STEP7 – (115V MOTOR): FOLD MOTOR INSULATORS (D55219 AND D55252) ALONG CREASES AND FIT
AROUND MOTOR AS SHOWN. THE MOTOR WIRES GO THROUGH A HOLE AT THE SIDE OF THE
INSULATOR. FASTEN THE INSULATORS TO THE MOTOR USING 2 X CABLE TIES (SL17-144).
