ILLUSTRATED PARTS MANUAL:
FLOWLINE COMB & WIRE
BINDER RANGE

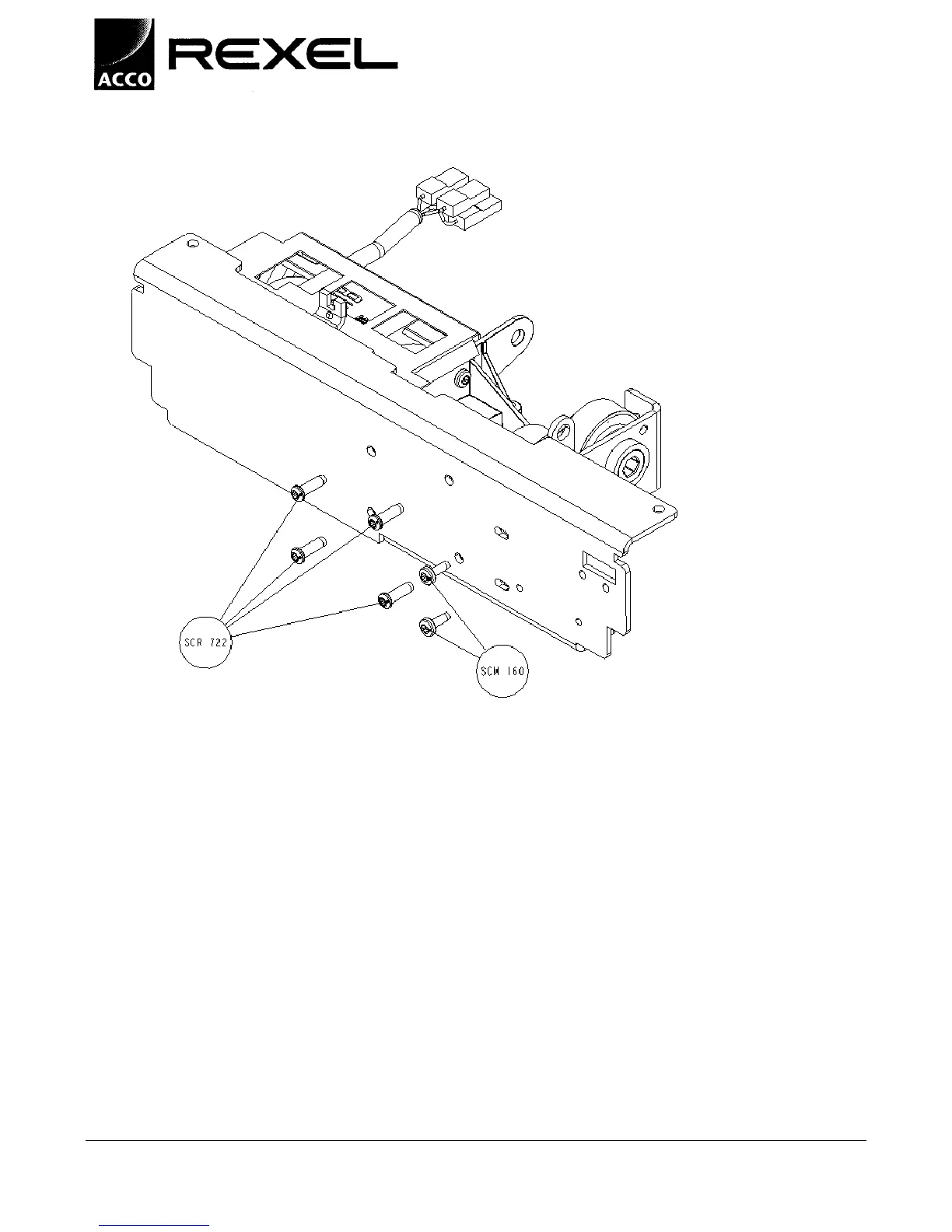

STEP 8 – (115V MOTOR): POSITION MOTOR SUPPORT BRACKRT (D55193) AGAINST GEARBOX ASSEMBLY,
ENSURING THAT HOLES IN THE MOTOR INSULATORS ALIGN WITH THE HOLES IN THE GEARBOX AND
MOTOR SUPPORT BRACKET. SECURE GEARBOX ASSEMBLY TO THE MOTOR SUPPORT BRACKET USING 4
OFF M5 X 16 SCREWS (SCR722) INTO GEARBOX CASING AND 2 OFF M4 X 12 SCREWS (SCM160) INTO
GEARBOX END PLATE.
