RDE 91 001-03-R/05.03 | A2F Mobile Hydraulics | Bosch Rexroth AG 15

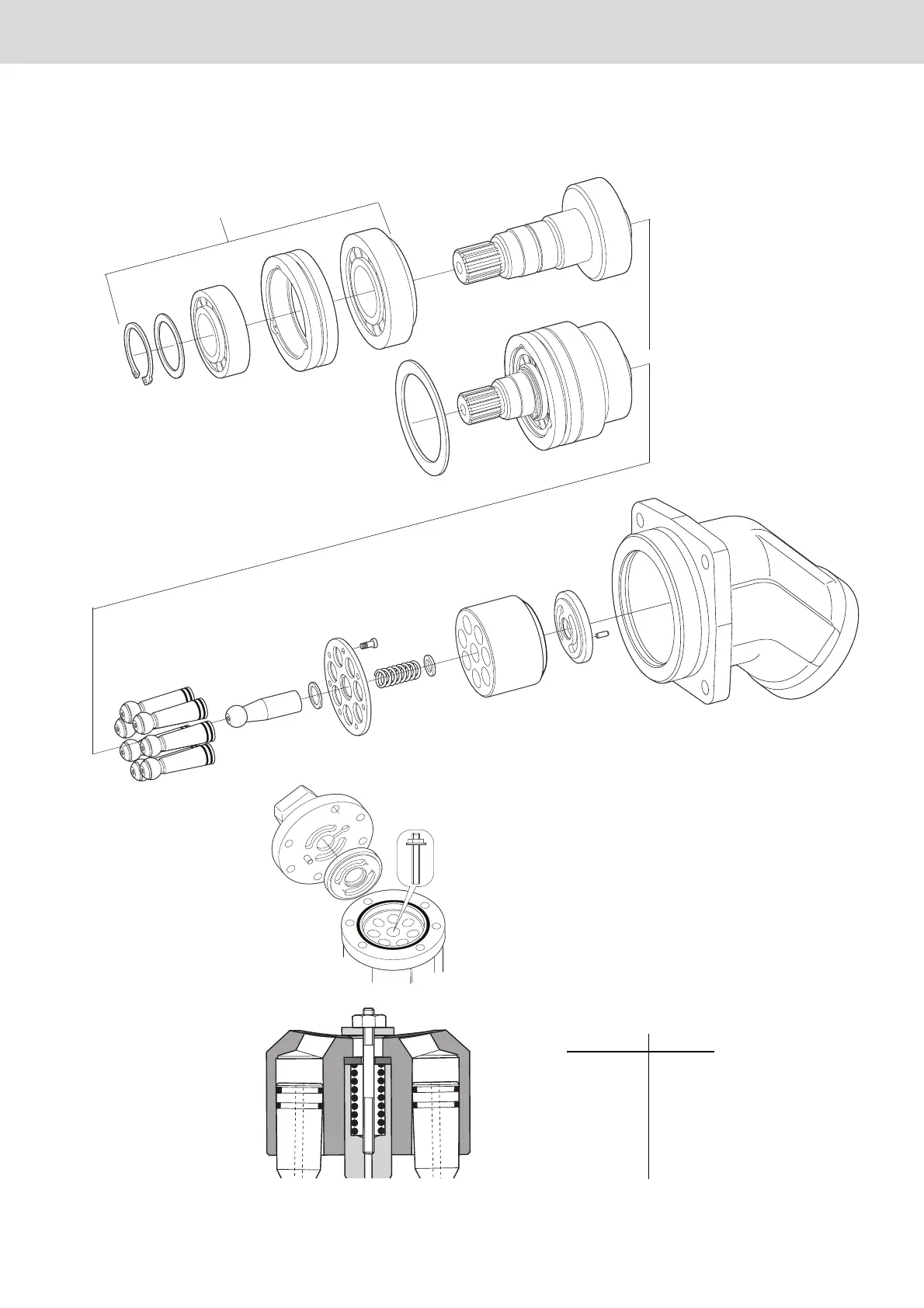

Demontage der Anschlußplatte.
Steuerplatte abheben.
Zylinder am Mittelzapfen mit Schraube befestigen.
Removal of the connection plate.
Lift off the control plate.
Secure the cylinder to the centre pin using a screw.
Gewindestift,Zylinderschraube /
Threaded pin,socket head screw
Triebwerk ausbauen
Removal the rotary group
Lagersatz / Bearing set
NG / Size (mm)
10; 12; 16 M3 x 35
23; 28; 32 M5 x 45
45 M5 x 50
56; 63 M5 x 55
80; 90 M5 x 60
107; 125; 131 M6 x 70
160; 180 M6 x 85
