12 Bosch Rexroth AG | Mobile Hydraulics A2F | RDE 91 001-03-R/05.03

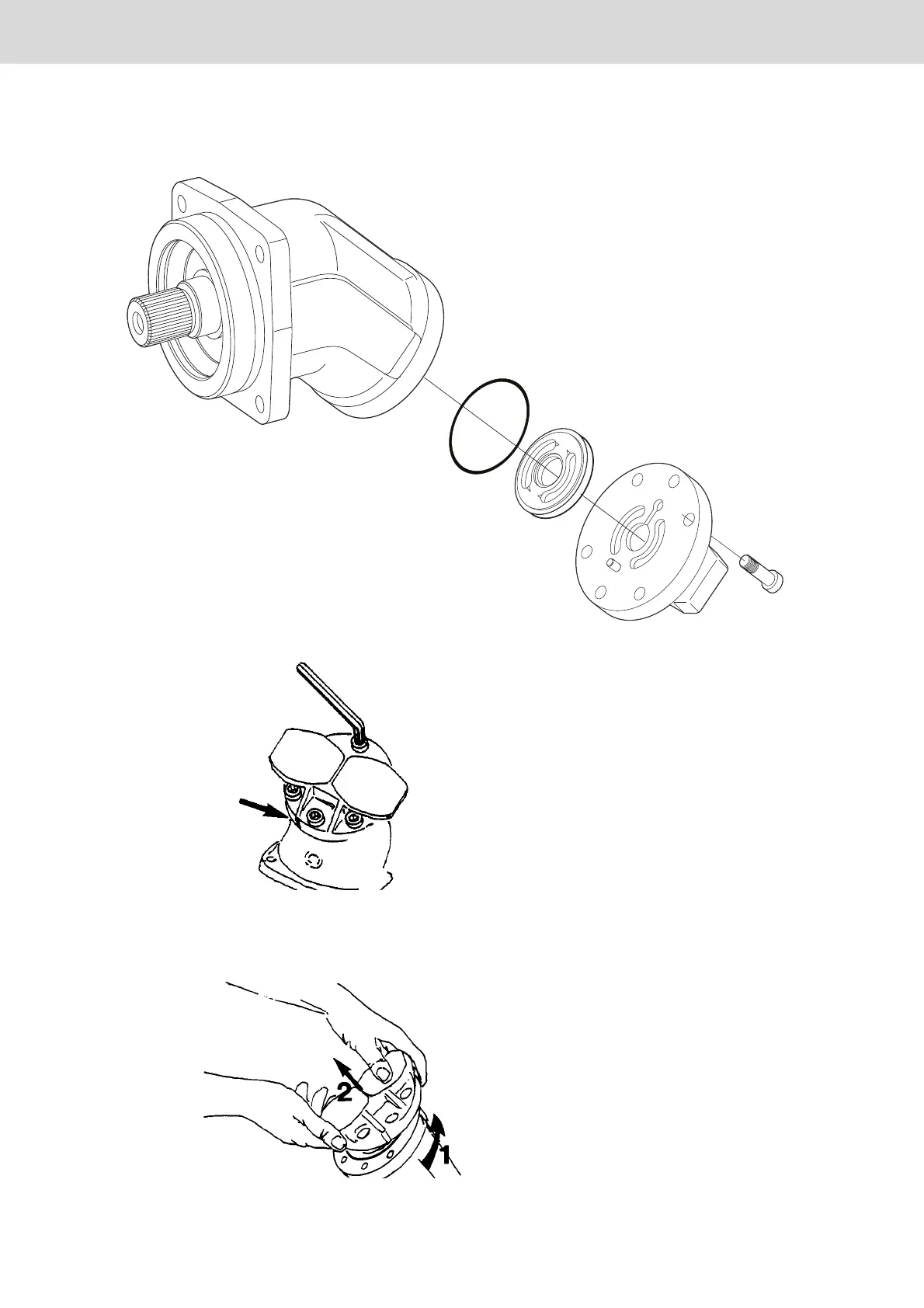

Lage der Anschlußplatte zum Gehäuse kenn-
zeichnen (Pfeil), Befestigungsschrauben lösen.
Mark the position of the cover plate with regard
to the housing (arrow), loosen the fixing screws.
Anschlußplatte um Verdrillstift schwenken (1)
und abheben (2).
Swing the connection plate about the locating
pin (1) and lift off (2).
Anschlußplatte abdichten
Sealing of the cover plate
