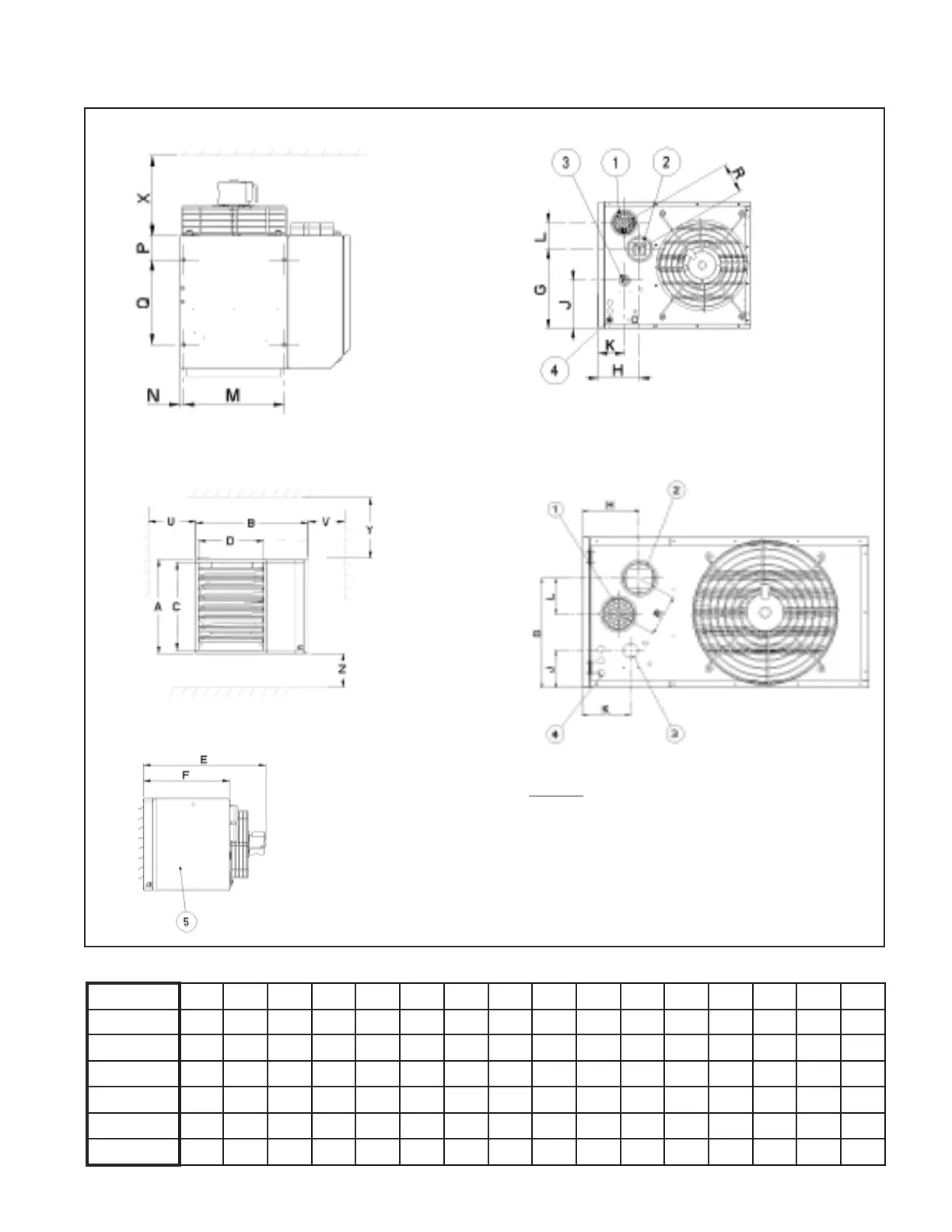

5. Dimensions & Clearances (horizontal orientation = standard)
Top view
Front view
Legend:
1. Combustion air inlet
2. Flue connection
3. External gas connection
4. Electrical connections
5. Service panel
Rear view (all mod. except 035-2,043-2,050-2)
Side view
Rear view (only mod. 035-2,043-2,050-2)
0050)
Figure 1
Table 1 : Dimensions (mm)
Type ABCDE FGHJKLMNPQR
008 - 011
307 700 267 404 696 546 131 191 129 67 85 413 16 98 350 120
015 - 020
383 700 343 404 723 546 200 191 139 122 86 413 16 98 350 120
025 - 030
586 700 546 404 771 546 368 191 222 122 121 413 16 98 350 140
035 - 050
510 971 456 601 1129 897 371 195 126 166 121 623 33 149 600 140
055 - 064
663 971 609 601 1138 897 354 207 150 166 204 623 33 149 600 225
073 - 100
865 1040 812 651 1138 897 562 213 299 186 204 673 33 149 600 225
