12
UBX-UBZ-UDX-UDZ-IOM (07-23) 1034344-K
GENERAL INFORMATION—CONTINUED
Combustion Air Requirements—Continued
Table 8. Determining Confined Space Combustion Air Requirements
Letter*
Air Source Required Opening Size
Calculate Combustion Air
Requirements
A Air inside building
1 square inch free area per 1000 BTUh
Add total BTUh of all appliances in
confined space and divide by figures
at left for square inch free area size of
each (top and bottom) opening
Never <100 square inches free area for each opening
B Outside air through duct 1 square inch free area per 2000 BTUh
C Direct outside air 1 square inch free area per 4000 BTUh
*See Figure 4.

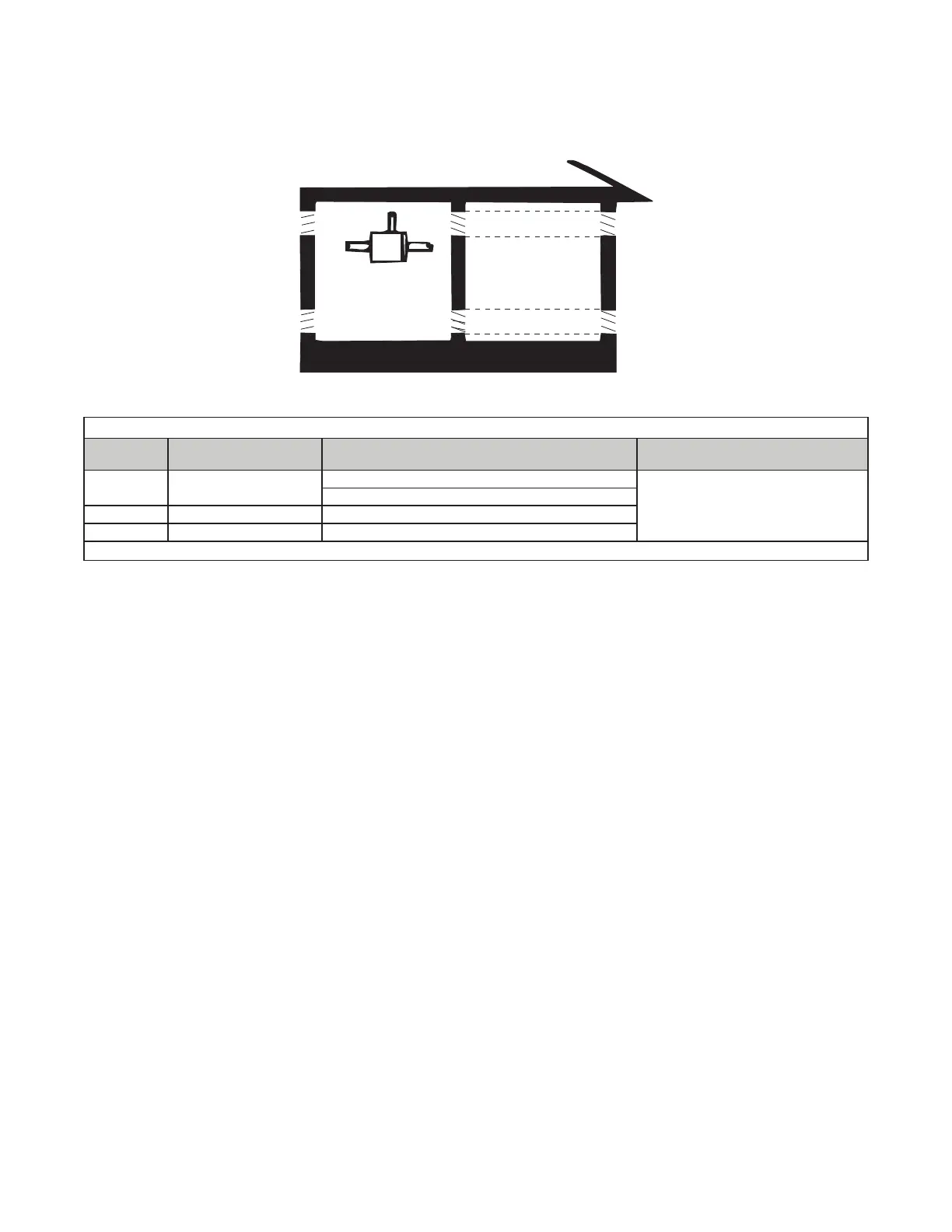

Figure 4. Confined Space Combustion Air Openings (Refer to Table 8)
CONFINED
SPACE
A
AB
B
C
C
INSTALLATION
Unpacking and Inspection
• The unit was test-operated and inspected at the factory prior to crating and was in operating condition.
• It is important to note when uncrating the unit that shipping brackets are attached with cabinet screws. When
removing shipping brackets, re-insert ALL screws into the cabinet.
• If, upon removing it from its crate, the unit has been found to have incurred any damage in shipment, document
the damage with the transporting agency and contact an authorized Factory Distributor. If you are an authorized
Distributor, follow the FOB freight policy procedures.
Pre-Installation Checklist
Check the rating plate for the gas specifications and electrical characteristics of the heater to ensure that they
are compatible with the gas and electric supplies at the installation site.
Read this manual and become familiar with the installation requirements of your particular heater.
If you do not have knowledge of local requirements, check with the local gas company or any other local agencies
who might have requirements concerning this installation.
Before beginning, make preparations for necessary supplies, tools, and manpower.
