Reznor UDX Installation, Operation And Maintenance

6
UBX-UBZ-UDX-UDZ-IOM (07-23) 1034344-K
GENERAL INFORMATION—CONTINUED
Heater Location—Continued
Heater Throw
Figure 1 shows throw patterns for fan model units. Table 3 lists throw distances for standard, adjustable horizontal
louvers on heaters suspended at varying mounting heights. The louver angles listed are relative to the top of the
heater. The throw pattern changes with the addition of optional vertical louvers and/or downturn nozzles.
Z = Distance at which air velocity drops below 50 feet (15.2 meters) per minute

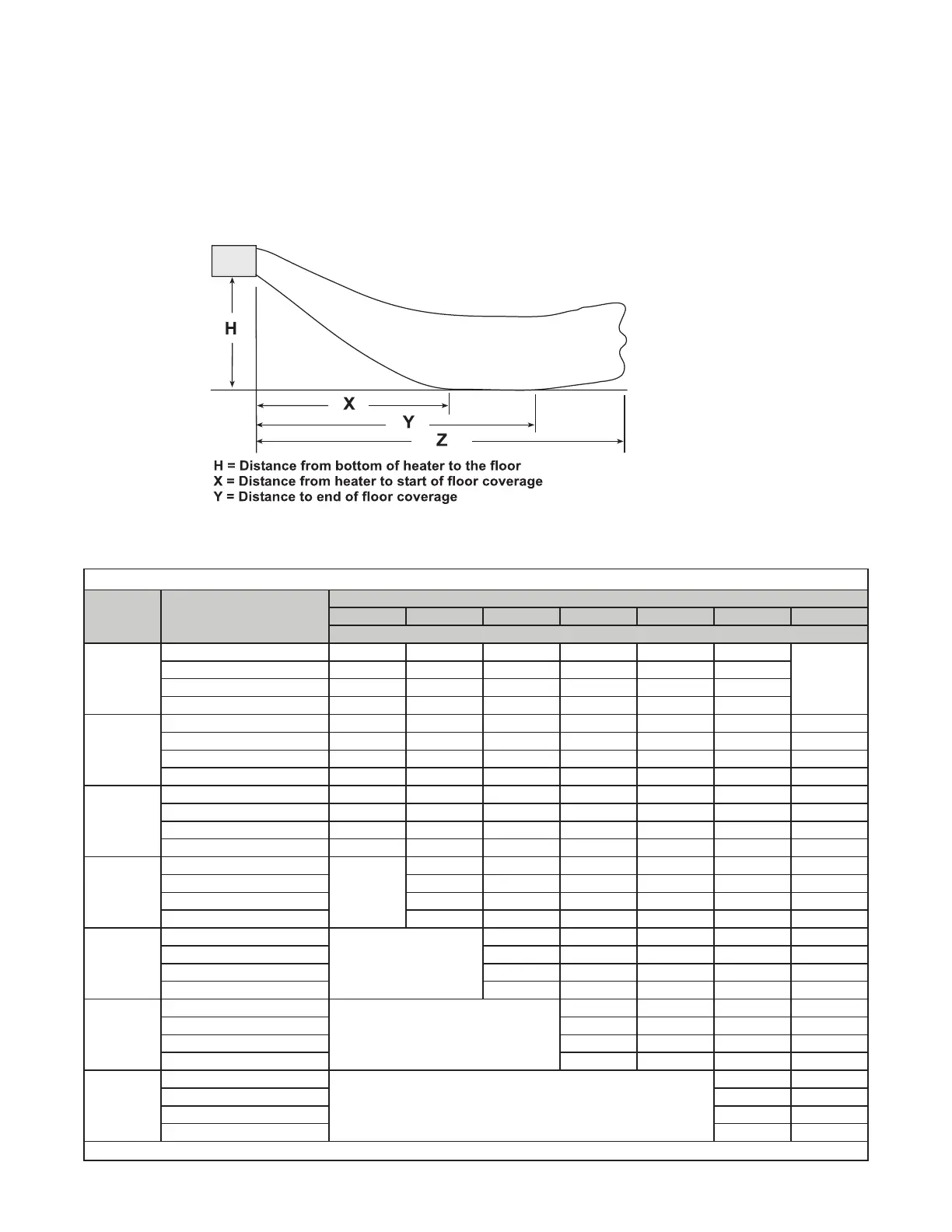

Figure 1. Heater Throw Patterns (Refer to Table 3)
Table 3. Heater Throw Distances with Standard Horizontal Louvers
H*
(Feet
(Meters))
Distance* or Angle
Unit Size
030 045 060 075 100 125 150
Feet (Meters)
5 (1.5)
X 6 (1.8) 7 (2.1) 8 (2.4) 9 (2.7) 9 (2.7) 10 (3.0)
—
Y 14 (4.3) 16 (4.9) 18 (5.5) 20 (6.1) 20 (6.1) 22 (6.7)
Z 30 (9.1) 40 (12.2) 45 (13.8) 57 (17.4) 59 (18.0) 65 (19.9)
Downward louver angle 21° 20° 16° 14° 18° 14°
8 (2.4)
X 7 (2.1) 9 (2.7) 10 (3.0) 12 (3.7) 11 (3.4) 12 (3.7) 13 (4.0)
Y 13 (4.0) 16 (4.9) 18 (5.5) 22 (6.7) 21 (6.4) 23 (7.0) 24 (7.3)
Z 26 (7.9) 37 (11.3) 42 (12.8) 54 (16.5) 56 (17.1) 63 (19.2) 73 (22.3)
Downward louver angle 39° 34° 29° 25° 28° 24° 26°
10 (3.0)
X 6 (1.8) 9 (2.7) 10 (3.0) 12 (3.7) 12 (3.7) 13 (4.0) 14 (4.3)
Y 11 (3.4) 15 (4.6) 17 (5.2) 22 (6.7) 20 (6.1) 24 (7.3) 24 (7.3)
Z 22 (6.7) 33 (10.0) 39 (11.9) 52 (15.8) 52 (15.8) 60 (18.3) 69 (21.0)
Downward louver angle 52° 43° 37° 32° 36° 30° 32°
12 (3.7)
X
—
8 (2.4) 10 (3.0) 12 (3.7) 11 (3.4) 14 (4.3) 14 (4.3)
Y 12 (3.7) 16 (4.9) 21 (6.4) 19 (5.8) 23 (7.0) 24 (7.3)
Z 27 (8.2) 34 (10.4) 48 (14.6) 47 (14.3) 57 (17.4) 64 (19.5)
Downward louver angle 55° 46° 39° 44° 36° 39°
14 (4.3)
X
—
9 (2.7) 12 (3.7) 11 (3.4) 14 (4.3) 14 (4.3)
Y 14 (4.3) 19 (5.8) 17 (5.2) 22 (6.7) 22 (6.7)
Z 29 (8.8) 44 (13.4) 42 (12.8) 53 (16.1) 59 (18.0)
Downward louver angle 56° 46° 51° 43° 45°
16 (4.9)
X
—
11 (3.4) 10 (3.0) 13 (4.0) 13 (4.0)
Y 17 (5.2) 14 (4.3) 20 (6.1) 20 (6.1)
Z 38 (11.6) 34 (10.4) 47 (14.3) 53 (16.2)
Downward louver angle 54° 58° 50° 51°
18 (5.5)
X
—
11 (3.4) 11 (3.4)
Y 17 (5.2) 17 (5.2)
Z 40 (12.2) 44 (13.4)
Downward louver angle 57° 58°
*See Figure 1.

Reznor UDX Specifications

General

Model	UDX
Category	Heater
Fuel Type	Natural Gas or Propane
Ignition System	Direct Spark Ignition
Installation	Horizontal or Vertical
Heat Exchanger Material	Aluminized Steel
Dimensions	Varies by model
Weight	Varies by model
Heating Capacity	30, 000 to 400, 000 BTU/hr
Efficiency	83%
Vent Type	Separated Combustion
Voltage	115V
Control Type	Thermostat
Type	Gas-fired unit heater
