9
UBX-UBZ-UDX-UDZ-IOM (07-23) 1034344-K

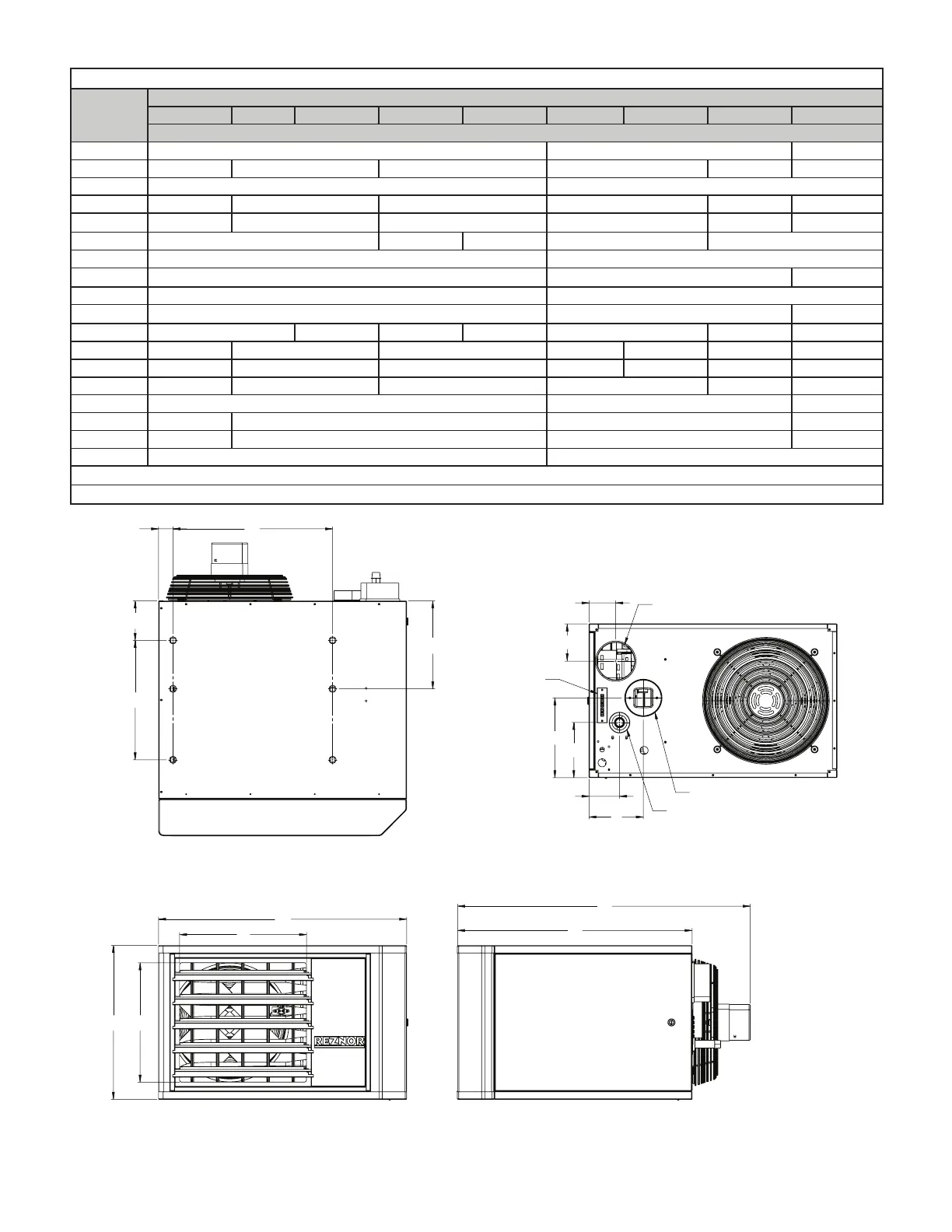

Figure 3. Dimensions—Models UDX and UDZ (Refer to Table 5)
Table 4. Dimensions—Models UBX and UBZ
Dimension
(See
Figure 2)
Unit Size
030, 045 060 075 100 125 150, 175 200 225, 250 300, 350, 400
Inches (mm)
A 27 (686) 38-3/16 (970) 41 (1041)
B 13-3/4 (349) 16-3/4 (425) 24-3/4 (629) 20-1/8 (511) 26-1/8 (664) 34-1/8 (867)
C 13-13/16 (351) 23 (584)
D 10 (254) 13 (330) 21 (533) 16 (406) 22 (559) 30 (762)
E*
17-3/16 (437) 18-11/16 (475) 24-1/16 (611) 30-31/32 (786) 37-1/32 (941) 41-7/32 (1047)
F 40-3/32 (1018) 48-1/8 (1222) 47-5/8 (1210) 64-3/4 (1645) 68-1/8 1730)
G 25-17/32 (649) 40 (1016)
H**
17-3/8 (441) 25-11/16 (653) 27-11/16 (703)
J 1-9/16 (40) 1-13/32 (36)
K**
22-1/2 (572) 24-1/2 (622) 23-1/2 (597)
L 6-15/32 (164) 5-15/32 (139) 8-15/32 (215) 7-15/32 (190) 3-29/32 (99) 5-29/32 (150) 1-13/32 (36)
M 10 (254) 12-11/16 (322) 19-5/16 (491) 13-1/2 (343) 14-9/16 (370) 18-1/16 (459) 22-9/16 (573)
N 6 (152) 8-11/16 (221) 15-5/16 (389) 8-1/2 (216) 9-9/16 (243) 13-1/16 (332) 17-1/16 (433)
P 3-1/2 (89) 6-5/16 (160) 9-9/16 (243) 5-7/16 (138) 9 (229) 11-13/16 (300)
Q 2-21/32 (74) 4-3/16 (106) 4-1/2 (114)
R 5-31/32 (152) 3-5/16 (84) 6-1/2 (165) 7-5/16 (186)
S 3-5/16 (84) 5-29/32 (150) 8-3/16 (208) 8-1/2 (216)
T 31 (787) 42 (1067)
*Varies with motor selection and belt adjustment for unit sizes 150–400.
**Heater suspension points (3/8-16 FEM).
TOP VIEW
REAR VIEW
FRONT VIEW
SIDE VIEW
A
C
B
D
F
E
Q
THERMOSTAT
CONNECTION
P
N
R
M
K
H
G
J
S
T
GAS
CONNECTION
VENT CONNECTION
COMBUSTION AIR INLET
