10
Section 6

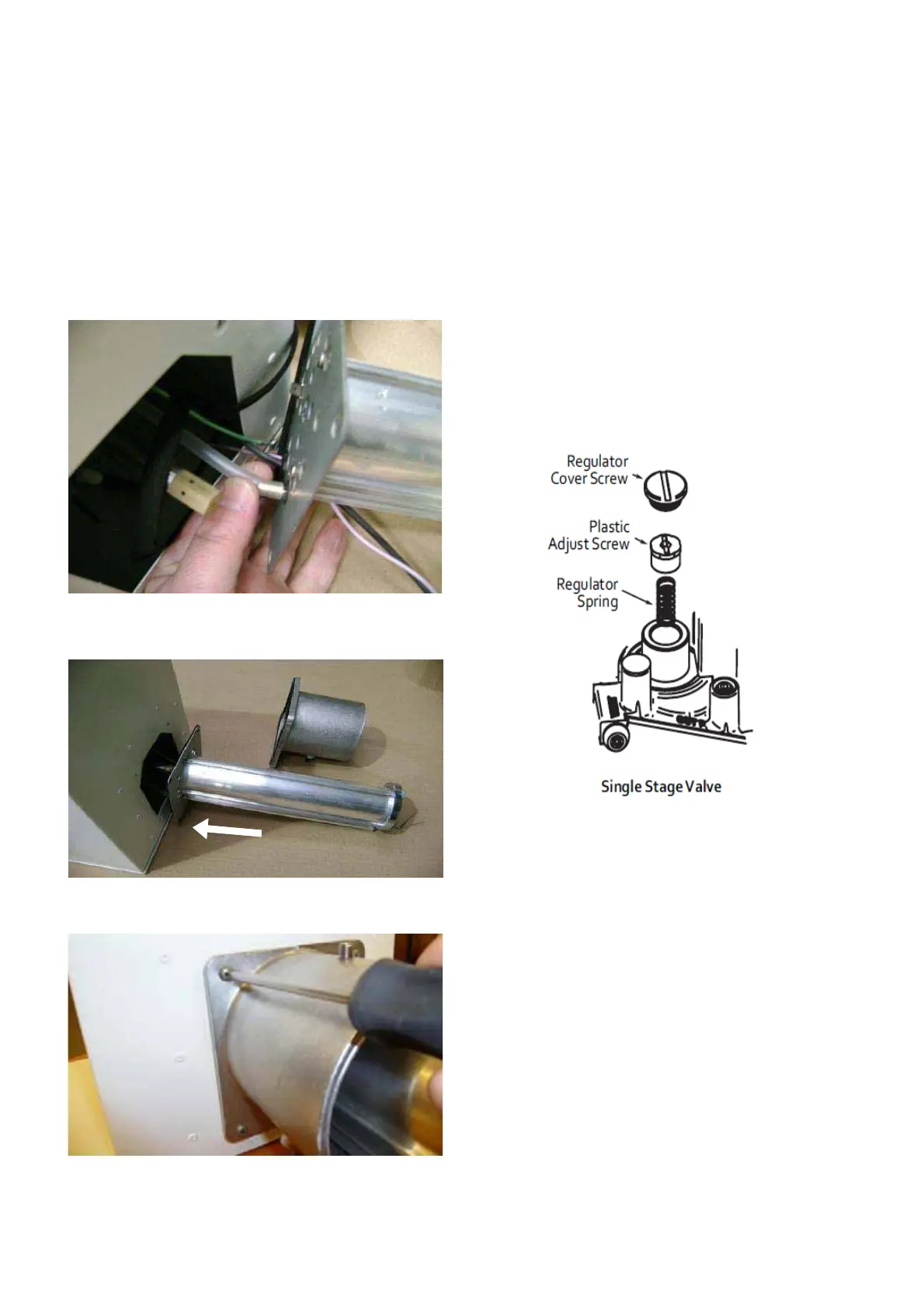

Refitting Burner Head (all models).
Step 1: Reconnect the ignition and flame probe leads,
the ground lead and pressure switch silicon tube. Take
care to pass the leads and silicone tube through the
gasket. New gaskets are provided. The old gaskets
should be disposed of accordingly.
Step 2: Locate the burner head assembly over the
gas orifice ensuring the leads do not get pinched
between the orifice plate and burner housing.
Step 3: Refit the gasket and casting over the burner
head tube and fix with the original screws.
Section 7a
Gas Valve LP Conversion (VPS).
Step 1: To gain access to the gas valve loosen screw
in burner lid and open the right hand burner access
door.
Step 2: Remove the gas valve regulator cover screw
(brass).
Step 3: Remove the adjustment screw (white)
beneath cover screw.
Step 4: Remove natural gas regulator spring
(color-coded silver/plain) from regulator sleeve.
Step 5: Insert the LP regulator spring (provided in the
conversion kit and color-coded white) into the
regulator sleeve.
Step 6: Replace the regulator adjustment screw and
adjust approximately 8 turns clockwise from the
beginning of the thread.
Step 7: Adjust gas pressure as detailed in Section
11a or 11b.
Step 8: Replace regulator cover screw.
Step 9: Attach warning label to outside of burner
housing where it can be readily seen.
Step 10: Fit small round LP label to the top of the
converted gas valve cover screw.
