Section 4a
Gas Orifice Replacement (60kBTU to 150kBTU
models only).

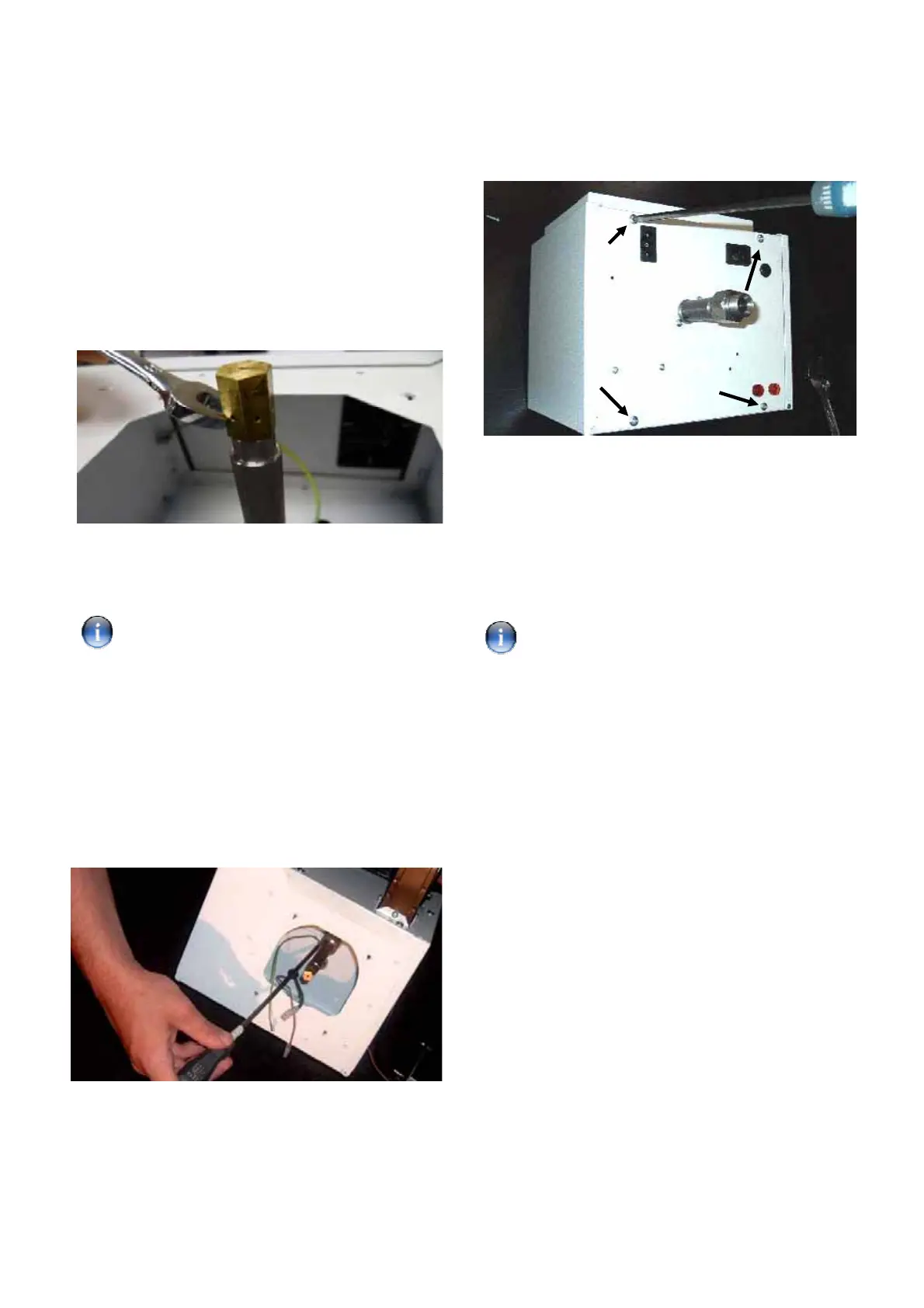

Step 1: Remove the burner casting as detailed in
section 1.
Step 2: Using a 12mm wrench remove the gas
orifice from the jet carrier by rotating
counter-clockwise.
Step 3: Replace the gas orifice with the propane
alternative ensuring an approved gas sealant is used
on the thread. DO NOT OVERTIGHTEN.
See Section 13 for gas orifice identification.
Section 4b
Gas Orifice Replacement (VPS 170kBTU to
200kBTU models only).
Step 1: Remove the burner casting as detailed in
section 1.
Step 2: Remove the two securing screws from the
base of the manifold, noting the ground terminal
connection.
Step 3: Remove the four screws holding the rear
burner plate in position (arrowed). Remove the rear
plate.
.Step 4: The manifold/gas orifice can now be
detached from the gas valve. The two screws
retaining the gas valve can then be removed.
Step 5: Replace the manifold/gas orifice with the
propane alternative ensuring an approved gas
sealant is used on the thread. DO NOT
OVERTIGHTEN.
See Section 13 for gas orifice identification.
