3.2 Selection of Installation Location
Minimum information will be provided below for the location selection of installation.
Please refer the information according to the purpose of your use.
3.2.1 Cone of Vision
3.2.1.1 Fuel
ㆍ N-Heptane
3.2.1.2 Cone of Vision
ㆍ Horizontal / Vertical : 90° ( 45° up, down, left, right at 50% of detection range )

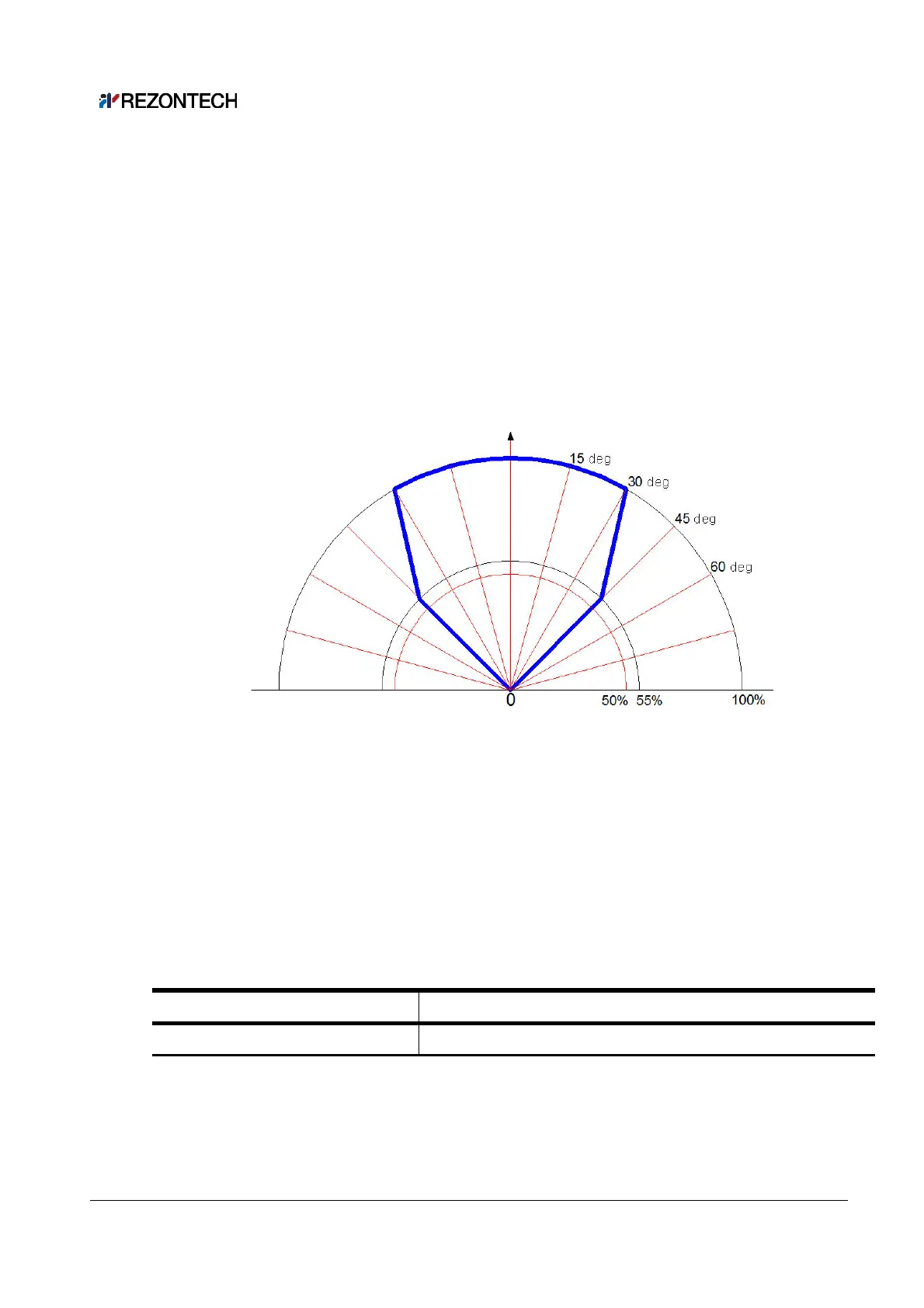

[Figure 6] Cone of Vision
3.2.2 Range of Detection
The detection distance for the alarm level is 99ft(30m) from the standard fire.
The detector has two response levels.
ㆍWarning
ㆍAlarm
3.2.2.1 Detection Range of Fuels
Type Of Fuel Maximum Distance (ft / m)
N-Heptane 99 / 30
[Table 6] Range of Fuels Detection
