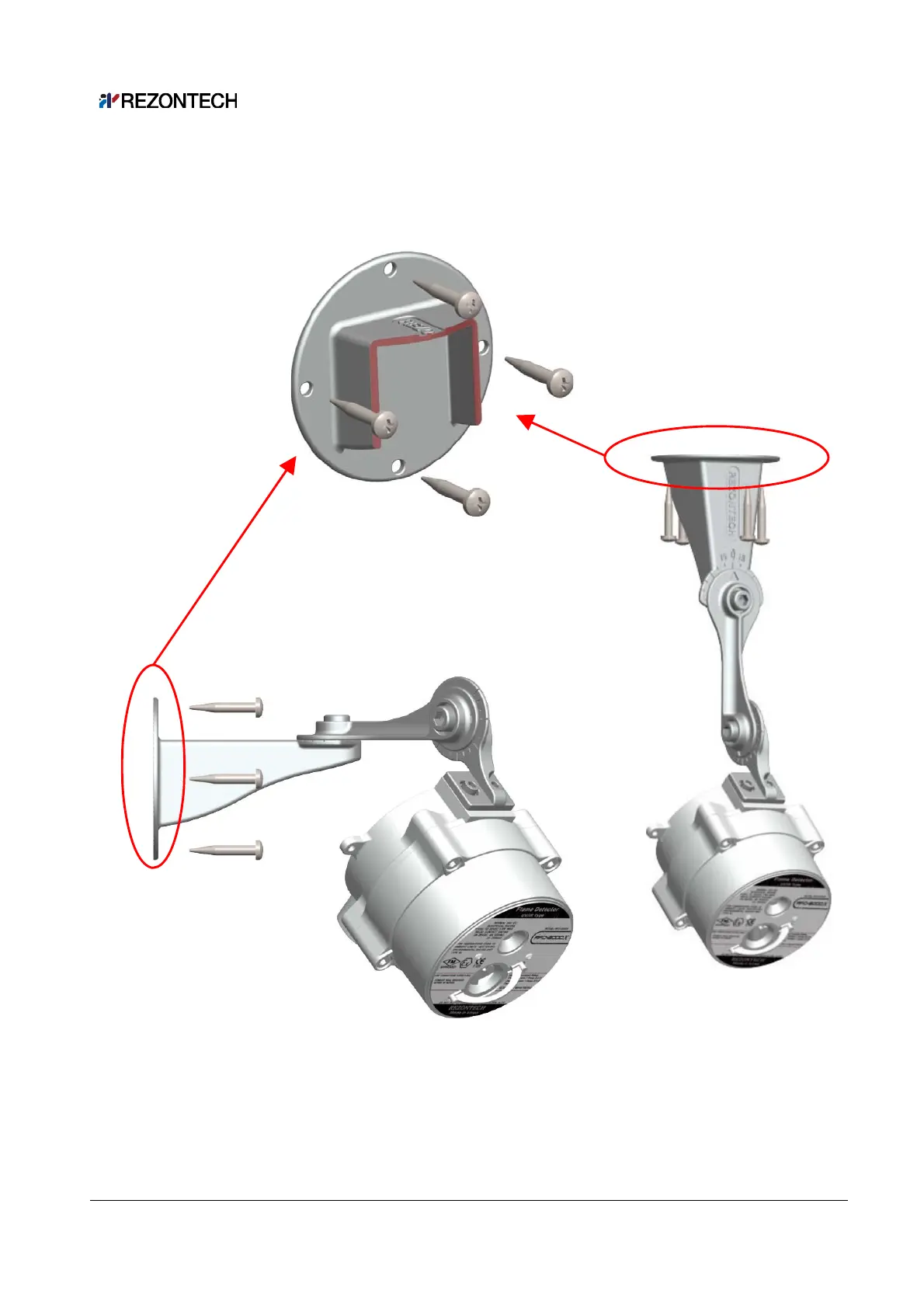

[Figure 8] 4 Holes on bracket
for mounting detector
[Figure 9] Wall mount
[Figure 10]
Ceiling mount
ㆍ Mount the bracket with M5-30 × 4pcs bolts. Refer to Figure 8
ㆍ Detector can be installed on the wall or the ceiling with bracket. Refer to Figure 9, 10
