4.5 Connect Antennas
Connect antennas directly to the N RF input connectors, or via 50-Ohm cables.
WARNING
If cabling the MLR directly to a transmitter (e.g. for testing) you must use
in-line RF attenuators. 50dB minimum recommended.

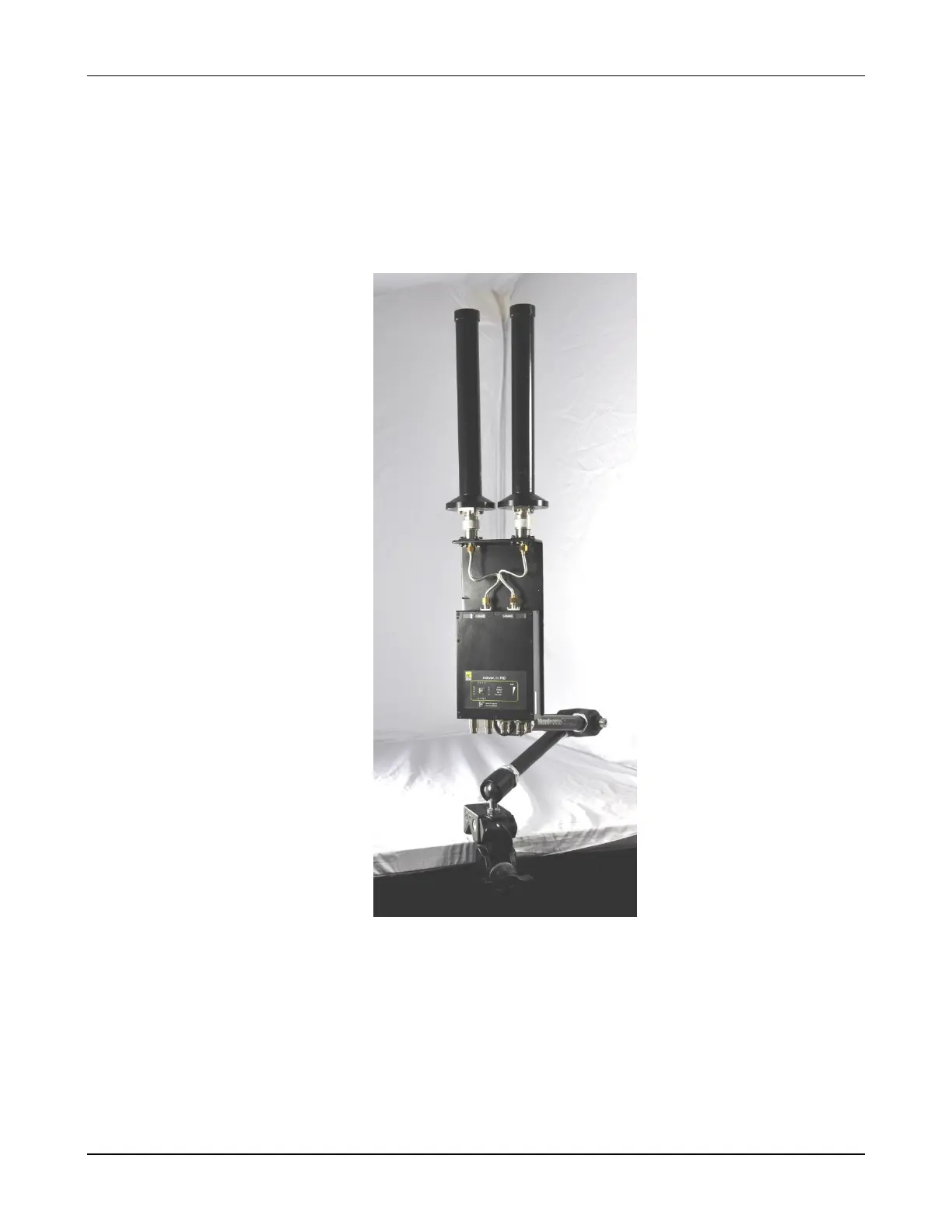

Figure 4-3: MLR Antenna Connectors
