17. RFXtrx433XL - P1 smart meter connection
The RFXtrx433XL can be connected to the Dutch P1 smart meter with the DSMR P1 option board
with RJ11 cable or DIY connection.

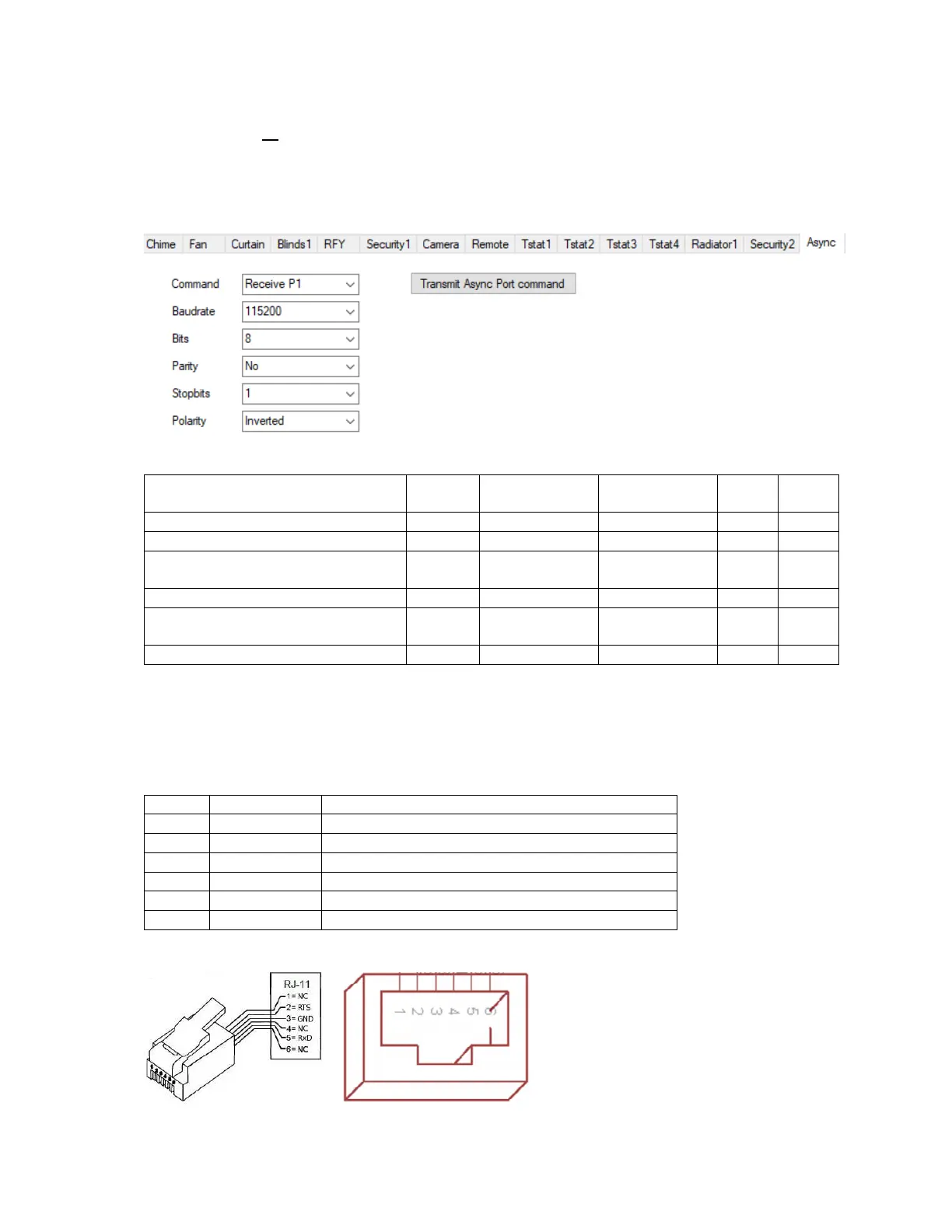

The connection can be tested in RFXmngr.
Select the correct parameters and click Set Async port.
Important: the P1 connection must be present!
Select the correct parameters for your smart meter:
Meter Brand DSMR
version
ID Baudrate Bits Parity
Iskra ME382, MT382
2.2
/ISK5
9600
7
E
Iskra AM550
5.0
/ISK5
115200
8
N
Kaifa
E0003,E0025,MA105,MA304
4.0 /KFM5 115200 8 N
Kamstrup 162,351,382
2.2
/KMP5
9600
7
E
Landis+Gyr E350
ZCF100,ZCF110,ZFF100,ZMF100
4.0 /XMX5LG 115200 8 N
Sagemcom XT210
4.0
115200
8
N
The smart meter connector type is RJ12. The Metering System holds a female connector, the
customer can plug in a standard RJ12 or RJ11 plug.
RJ12 is a 6P6C (6 positions, 6 contacts)
RJ11 is a 6P4C (6 positions, 4 contacts) This one can be used to connect the RFXtrx433XL.
Pin #
Signal name
Description
1 + 5V power Power supply (not used by the RFXtrx433XL)
2
RTS
Request to Send
3 GND Data GND
4
NC
Not connected
5
RxD
Data output to the RFXtrx433XL
6 GND power Power GND (not used by the RFXtrx433XL)
RJ12 and RJ11 connections:
